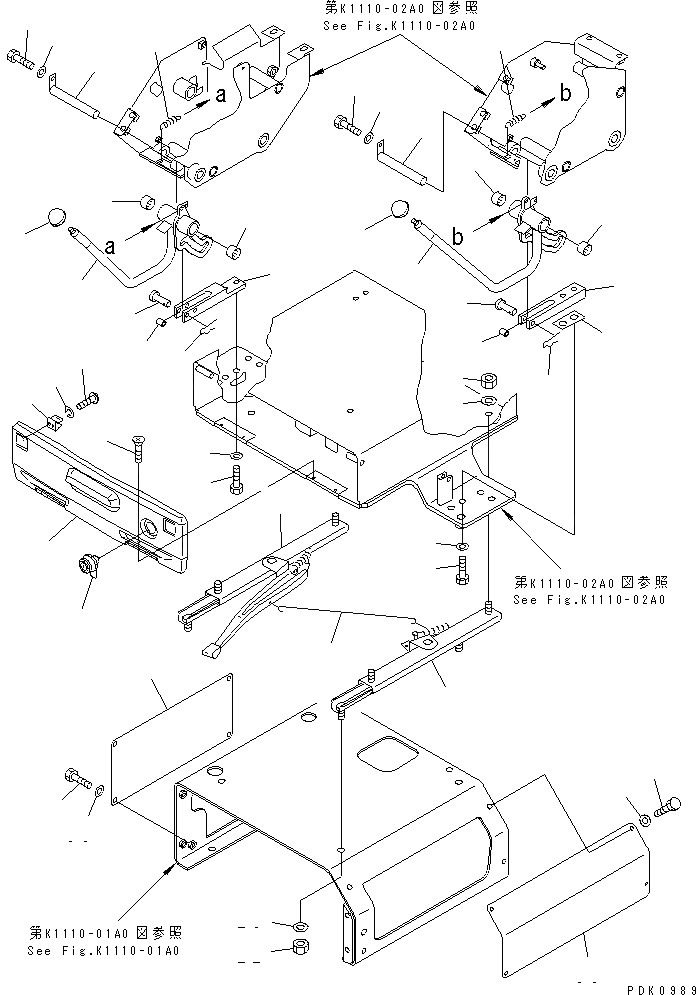

Запчасти Komatsu PC45R-8 ОСНОВН. КОНСТРУКЦИЯ (ОСНОВ.) (/) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

09304-10835

KNOB

2

20U-43-21114

LEVER

2

20U-43-21113

LEVER

2

20U-43-21112

LEVER

3

20T-43-81223

LEVER

3

20T-43-81222

LEVER

3

20T-43-81221

LEVER

4

20U-43-21121

SHAFT

5

01010-80616

BOLT

6

01643-30623

WASHER

7

195-61-34120

BEARING

8

22U-54-17720

SPRING

8

20Y-54-13550

SPRING

9

20T-43-81251

STOPPER

10

01010-81025

BOLT

10

01010-81020

BOLT,(FOR AIR CON)

11

01643-31032

WASHER

12

20U-43-21270

PLATE

13

20U-43-21132

STOPPER

14

01010-81035

BOLT

15

01643-31032

WASHER

16

20T-43-71271

COLLAR

17

04205-10835

PIN

18

04050-12015

PIN,SNAP

19

205-57-63520

ADJUSTER,L.H.

20

20T-57-81150

ADJUSTER,R.H.

21

20T-54-71490

BAR

22

01580-11210

NUT

23

01643-31232

WASHER

24

20T-54-81191

COVER

25

20R-54-11460

SPRING

26

01220-40508

SCREW

27

01601-20513

WASHER,SPRING

28

01225-40510

SCREW

29

205-60-71220

LOCK ASS'Y

30

20T-54-81911

COVER,(WITHOUT AIR CON.)

31

01010-D0820

BOLT,(WITHOUT AIR CON.)

32

01643-70823

WASHER,(WITHOUT AIR CON.)

33

22U-54-13340

PLATE,(WITHOUT AIR CON.)

34

01010-D0820

BOLT,(WITHOUT AIR CON.)

35

01643-70823

WASHER,(WITHOUT AIR CON.)
