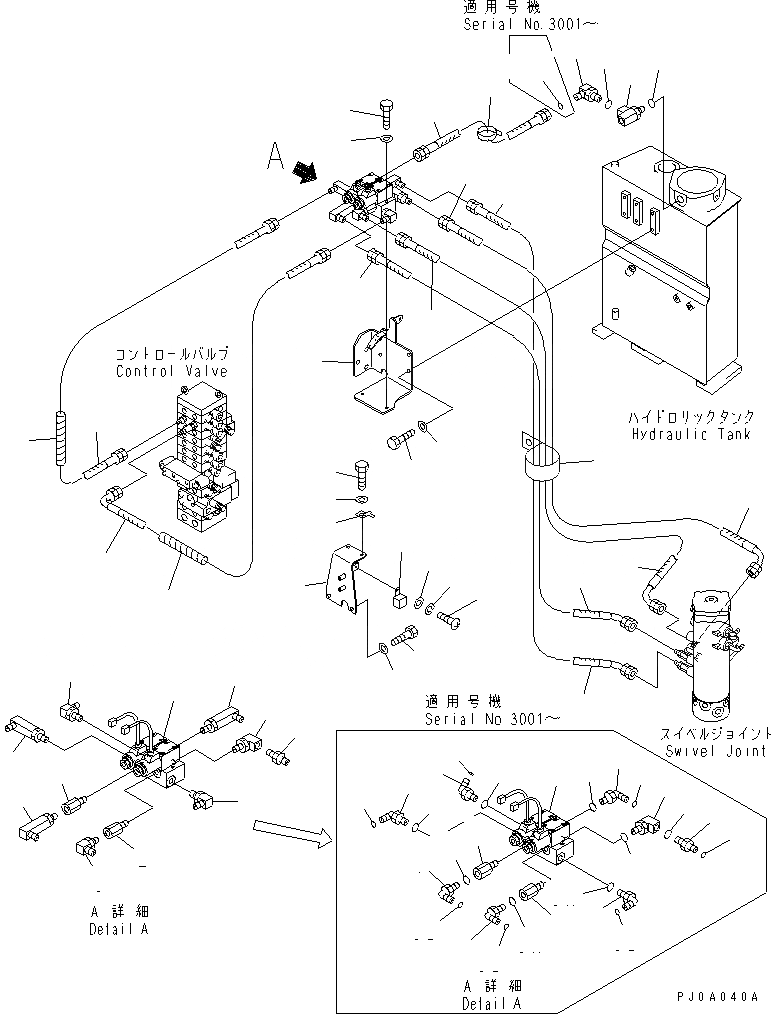

Запчасти Komatsu PC45MRX-1 ПОВОРОТН. ОТВАЛ С ИЗМ. УГЛОМ ЛИНИЯ (ВЕРХН.) ГИДРАВЛИКА

1

20T-62-87140

SOLENOID VALVE

1

SOLENOID

1

08055-00212

CONNECTOR

2

207-62-62460

ADAPTER

3

02782-10311

ELBOW

3

20Y-970-1731

ELBOW

4

02782-10312

ELBOW

4

20Y-970-1741

ELBOW

5

20F-61-12460

ELBOW

6

11Y-62-12520

NIPPLE

6

205-62-55270

NIPPLE

7

01010-80865

BOLT

8

01643-30823

WASHER

8A

07002-11423

O-RING

8B

02896-11009

O-RING

9

22M-910-1120

BRACKET

10

01010-81025

BOLT

11

01643-31032

WASHER

12

22M-910-1131

BRACKET

12

22M-910-1130

BRACKET

13

01010-81025

BOLT

14

01643-31032

WASHER

15

22N-910-1310

HOSE

15

20T-62-83940

HOSE, 1200MM

16

22N-910-1320

HOSE

16

20S-910-8340

HOSE

17

22N-910-1290

HOSE

17

22M-910-1360

HOSE

18

22N-910-1280

HOSE

18

21X-62-31430

HOSE

19

22M-62-16380

HOSE

19

07185-003A3

HOSE

20

22M-910-1450

ELBOW

21

07002-12434

O-RING

22

02782-10313

ELBOW

22

20S-62-21680

ELBOW

23

07002-11823

O-RING

24

207-62-33690

CLIP

25

08034-20536

BAND

26

08210-01203

SPIRAL TUBE

26A

02896-11009

O-RING

27

08053-01510

CLIP

28

01010-80816

BOLT

29

01643-30823

WASHER

30

21X-06-12310

RELAY ASS'Y

31

01220-40616

SCREW

32

01602-20619

WASHER

33

01641-20608

WASHER
