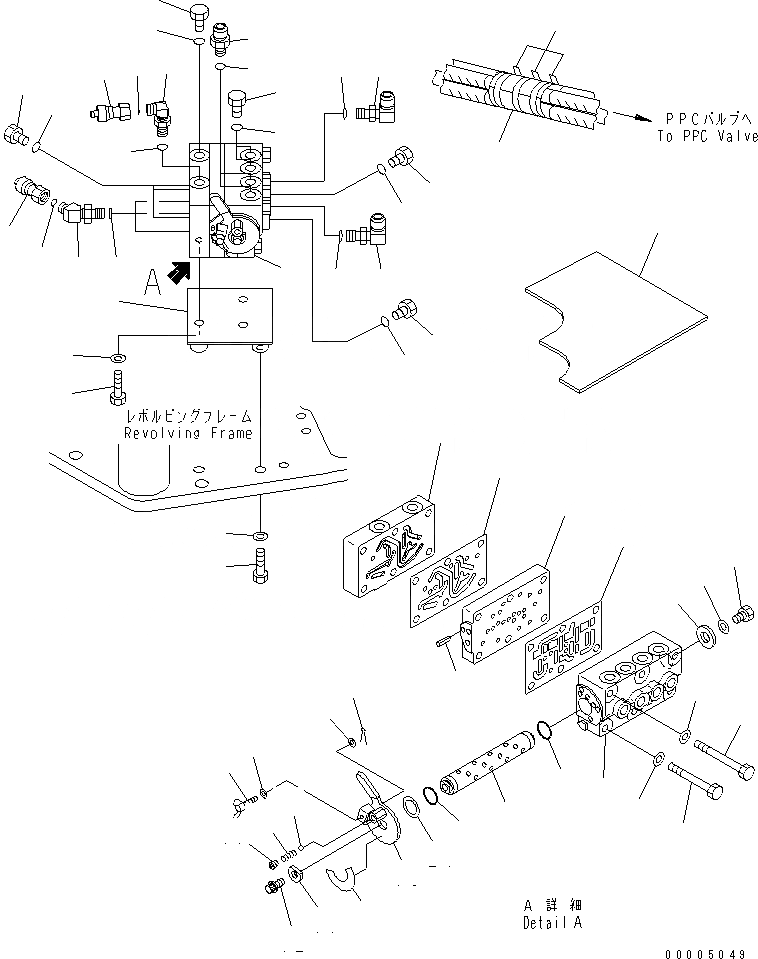

Запчасти Komatsu PC45MRX-1 MULTI PATERN (КЛАПАН) (ISO - BH)(№-) ГИДРАВЛИКА

|$4

20U-62-43800

VALVE ASS'Y

1

VALVE BODY

2

22M-62-15520

VALVE BODY

3

22M-62-15530

VALVE BODY

4

22M-62-15570

GASKET

5

22M-62-15580

GASKET

6

01010-81090

BOLT

7

01010-81080

BOLT

8

01643-31032

WASHER

9

22M-62-15540

SHAFT

10

07000-12021

O-RING

11

22M-62-15550

PLATE

12

01437-11016

BOLT

13

20U-62-43830

LEVER

14

01643-31645

WASHER

15

01010-81016

BOLT

16

01643-31032

WASHER

17

07043-70108

PLUG

18

236-10-12240

SPRING

19

04260-00793

BALL,STEEL

20

04025-00512

PIN,SPRING

21

22M-62-15630

BOLT,WING

22

01640-20610

WASHER

23

04050-11612

PIN,COTTER

24

141-27-31280

WASHER

25

20U-62-43841

PLATE

26

02783-10210

ELBOW

27

02782-10210

ELBOW

28

22M-62-15590

JOINT

29

02896-11008

O-RING

30

201-62-75420

ELBOW

31

20X-62-47410

NIPPLE

32

07040-11409

PLUG

33

07002-11423

O-RING

34

22M-62-13810

SHEET

35

22M-62-14181

BRACKET

36

01010-81025

BOLT

37

01643-31032

WASHER

38

203-62-52210

RUBBER

39

08034-00519

BAND
