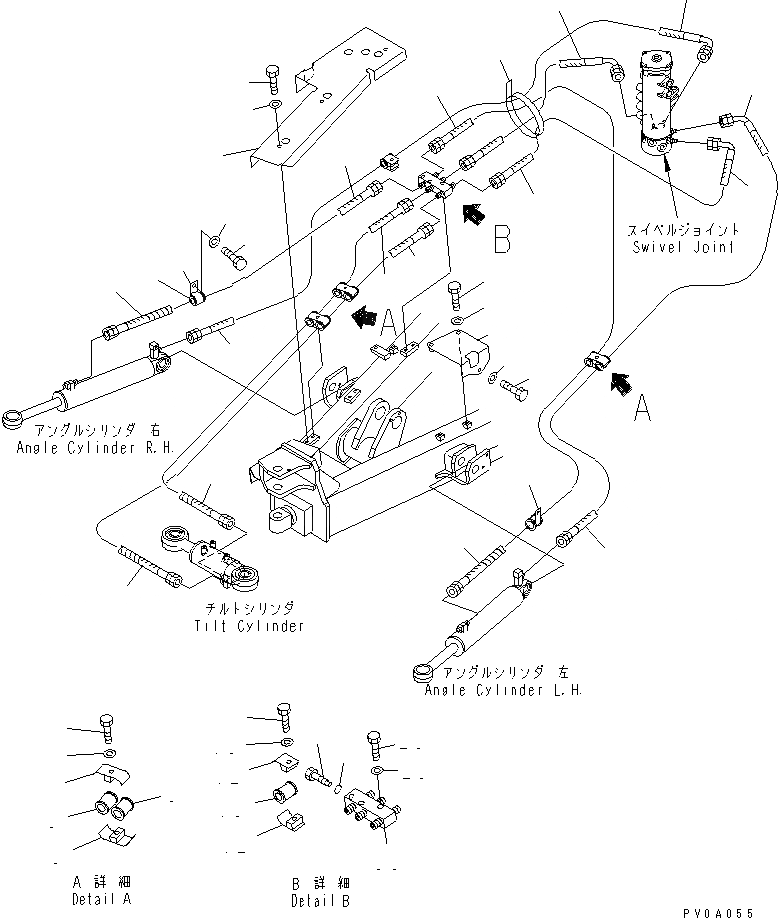

Запчасти Komatsu PC45MRX-1 ПОВОРОТН. ОТВАЛ С ИЗМ. УГЛОМ ЛИНИЯ (НИЖН.) НИЖНЯЯ ГИДРОЛИНИЯ И ЛИНИЯ ХОДА

1

22N-910-1480

HOSE, 1290MM

1

22M-910-1430

HOSE

2

22N-910-1490

HOSE, 1320MM

2

20R-870-1230

HOSE

3

22N-910-1430

HOSE

3

20T-62-81540

HOSE

4

22N-910-1440

HOSE

4

22M-910-1280

HOSE

5

22N-910-1450

HOSE

5

20T-910-8340

HOSE

6

22N-910-1470

HOSE

6

20S-62-81560

HOSE

7

22N-910-1460

HOSE

7

22M-910-1560

HOSE ASS'Y

8

07094-20315

CLAMP

9

07095-00317

CUSHION

10

01010-81260

BOLT

11

01643-31232

WASHER

12

07094-10315

CLAMP

13

07095-00317

CUSHION

14

01010-81260

BOLT

15

01643-31232

WASHER

16

07095-20318

CUSHION

17

04434-52511

CLIP

18

01010-81020

BOLT

19

01643-31032

WASHER

20

08034-20823

BAND

21

22M-910-1481

COVER

22

01010-81265

BOLT

23

01010-81020

BOLT

24

01643-31232

WASHER

25

01643-31032

WASHER

26

22M-910-1490

COVER

27

01010-81235

BOLT

28

01010-81225

BOLT

29

01643-31232

WASHER

30

22N-910-1140

BLOCK

30

22M-910-1190

BLOCK

31

104-62-34230

COCK

32

07000-22012

O-RING
