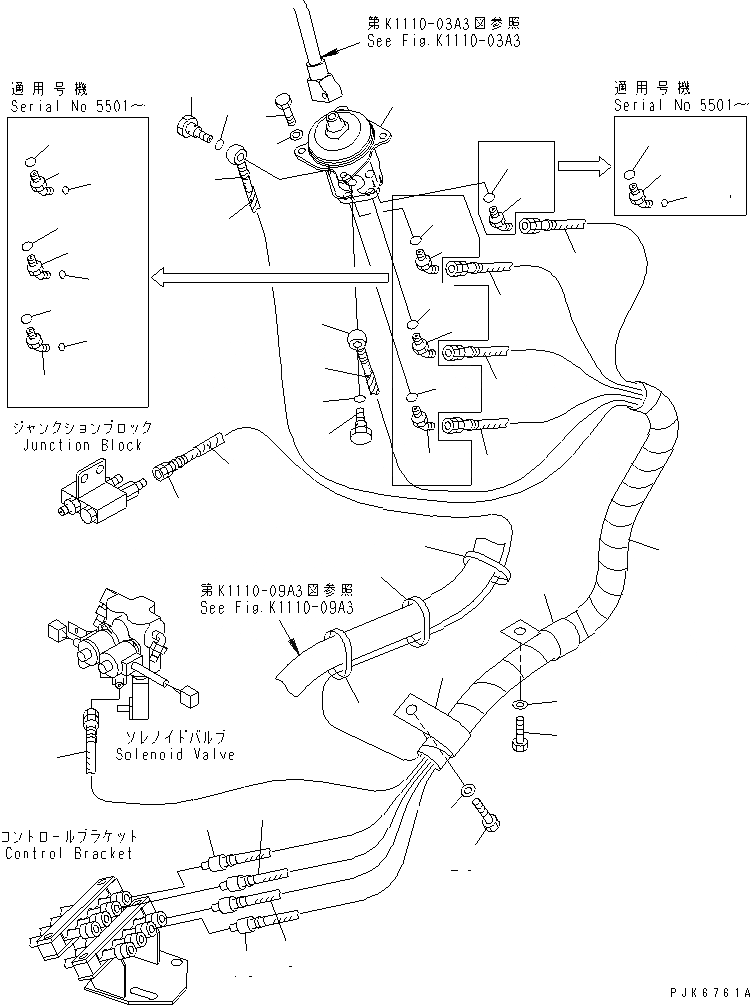

Запчасти Komatsu PC45MRX-1 ОСНОВН. КОНСТРУКЦИЯ (ТРУБЫ¤ ЛЕВ.) (ДЛЯ TOPS) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

702-16-01072

PILOT VALVE

2

01010-80820

BOLT

3

01643-30823

WASHER

4

702-16-53240

PLUG

5

07000-12018

O-RING

6

203-62-57730

BOLT

7

07000-12018

O-RING

8

22M-62-17240

HOSE,BROWN

8

22M-62-13840

HOSE, 1130MM,BROWN

8

22M-62-11721

HOSE, 1050MM,BROWN

9

22M-62-17240

HOSE,ORANGE

9

22M-62-13840

HOSE, 1130MM,ORANGE

9

22M-62-11721

HOSE, 1050MM,ORANGE

10

22M-62-17240

HOSE,WHITE

10

22M-62-13840

HOSE, 1130MM,WHITE

10

22M-62-11721

HOSE, 1050MM,WHITE

11

22M-62-17240

HOSE,GREEN

11

22M-62-13840

HOSE, 1130MM,GREEN

11

22M-62-11721

HOSE, 1050MM,GREEN

12

22M-62-17250

HOSE,GREEN-RED

12

22M-62-13850

HOSE, 1210MM,GREEN-RED

12

22M-62-12330

HOSE, 1100MM,GREEN-RED

13

22M-62-17260

HOSE,BLUE-WHITE

13

22M-62-13860

HOSE, 2070MM,BLUE-WHITE

13

22M-62-12340

HOSE, 1985MM,BLUE-WHITE

14

22M-62-12370

COVER

15

203-62-58650

COVER

16

21U-62-34390

COVER

17

02783-10210

ELBOW

17

07236-10210

ELBOW

18

07002-11423

O-RING

18A

02896-11008

O-RING

19

281-01-13180

CLIP

20

01010-81020

BOLT

21

01643-31032

WASHER

22

08034-00519

BAND
