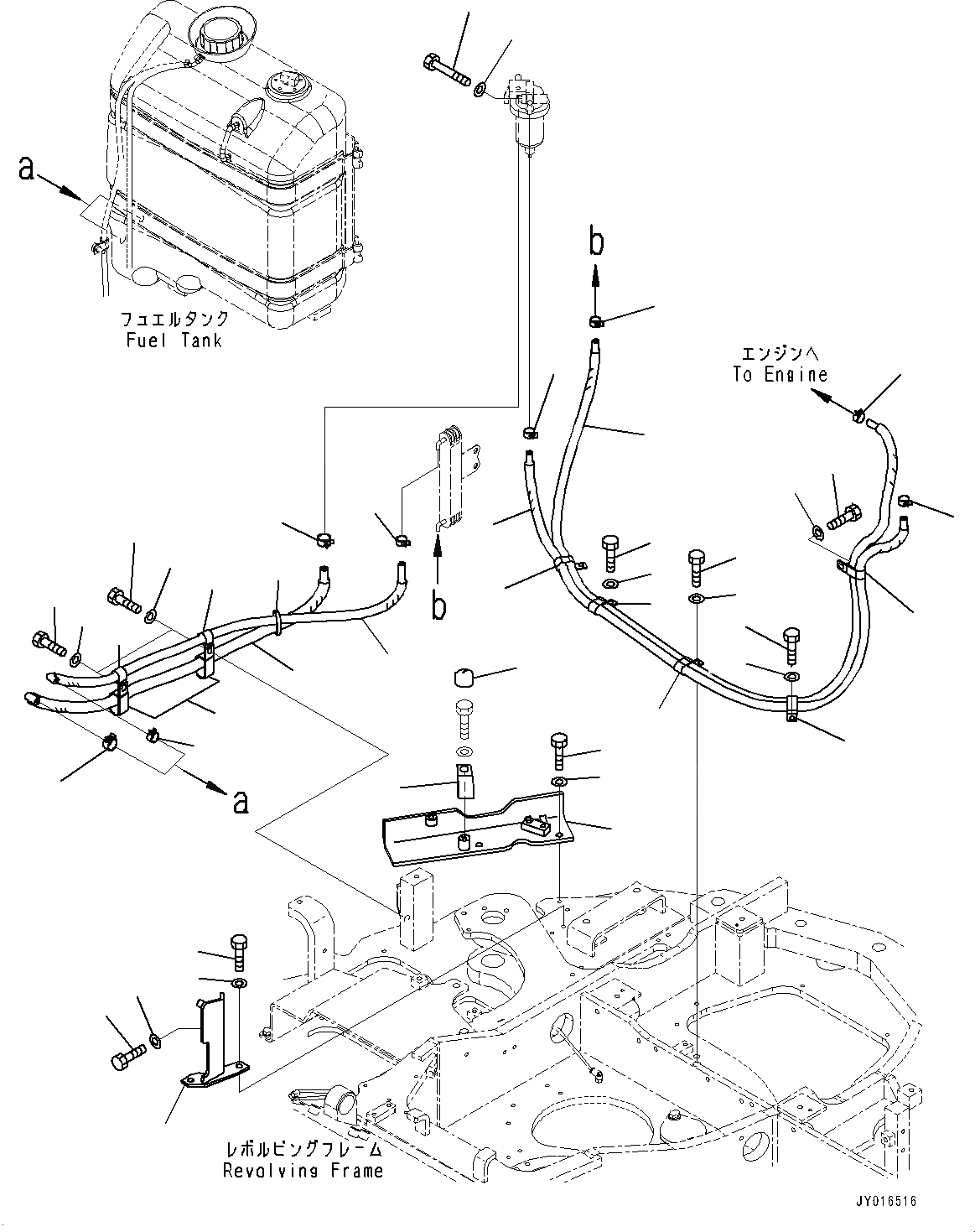

Запчасти Komatsu PC45MR-3 ТОПЛИВН. БАК., ТРУБЫ (№-) ТОПЛИВН. БАК., С КОНДИЦИОНЕРОМ

1

22M-04-31221

Hose Assembly

1

22M-04-31220

Hose Assembly

2

07285-00125

Clip

3

22M-04-31161

Hose Assembly

4

07285-00125

Clip

5

04434-51910

Clip

6

01010-81020

Bolt

7

01643-31032

Washer

8

04435-51910

Clip

9

01010-81020

Bolt

10

01643-31032

Washer

11

04435-51910

Clip

12

01010-81020

Bolt

13

01643-31032

Washer

14

04435-51910

Clip

15

01010-81020

Bolt

16

01643-31032

Washer

17

04435-51910

Clip

18

01010-81020

Bolt

19

01643-31032

Washer

20

04435-51910

Clip

21

01010-81020

Bolt

22

01643-31032

Washer

23

01010-80865

Bolt

24

01643-30823

Washer

25

22M-04-31151

Hose Assembly

26

07285-00150

Clip

27

22M-04-31181

Hose Assembly

28

07285-00125

Clip

29

04434-51910

Clip

30

04435-52511

Clip

31

22M-46-31241

Bracket

31

22M-46-31240

Bracket

32

01010-81025

Bolt

33

01643-31032

Washer

34

04434-52310

Clip

35

3BA-47-74350

Cap

36

08034-20823

Band

37

01010-80820

Bolt

38

01643-30823

Washer

39

22M-979-3391

Bracket

40

01010-81025

Bolt

41

01643-31032

Washer
