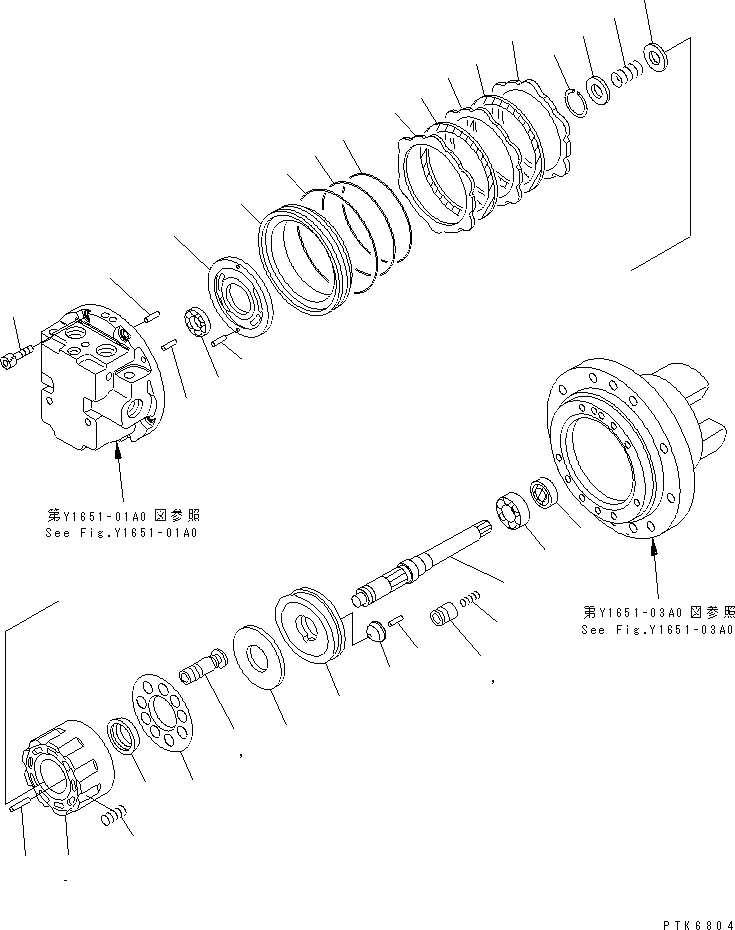

Запчасти Komatsu PC45MR-1 МОТОР ХОДА (/)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

22N-60-11122

TRAVEL MOTOR ASS'Y

|1

TZ751B200000SG

HYDRAULIC MOTOR A.

1

TZ573B2002-00

SHAFT

2

TZ573B200300-S

PLATE,SWASH

3

TZ510B2004-01

BLOCK,CYLINDER

|4

TZ510B2105-00

PISTON KIT

|4

TZ510B2030-00

PISTON KIT (9 PIECES)

4

PISTON

5

SHOE

6

TZ310B2007-01

PLATE,RETAINER

7

TZ310B2008-00

BOWL,THRUST

8

TZ550A2009-00

PLATE,TIMING

9

TZ310B2010-00

WASHER

10

TZ571B2012-02

PISTON

11

TZ550A2013-00

SPRING

12

TZ510B2014-00

SPRING

13

TZ571B2015-00

PLATE

14

TZ550A2016-00

PLATE

15

TZ15Z-17-35-8

SEAL,OIL (K1)

16

TZ571B2035-01

O-RING (K1)

17

TZ571B2039-01

O-RING (K1)

18

TZJB1354-4-10

PIN

19

01252-30820

BOLT

20

TZ310B2032-01

PLATE,THRUST

21

TZIRTW-32

RING

22

TZ510B2029-00

BEARING

23

06000-06201

BEARING

24

TZJB15062-208F

PIN

|25

TZ573B2070-00

PISTON ASS'Y

25

PISTON

26

SHOE

27

TZ534B2076-00

PIVOT

28

TZ310B2074-00

PLATE

29

TZ534B2077-00

PIN

30

TZ571B2078-01

O-RING (K1)

31

TZ573B2085-00

SPRING
