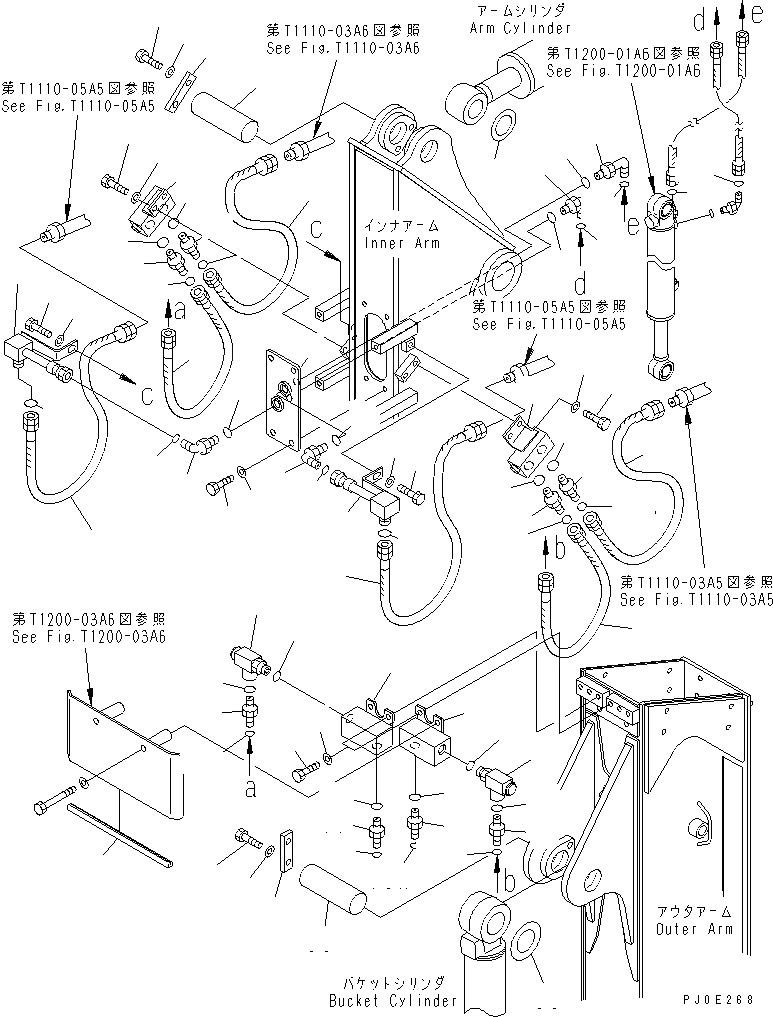

Запчасти Komatsu PC45MR-1 РУКОЯТЬ (ДЛЯ ТЕЛЕСКОПИЧЕСК. РУКОЯТЬ) (/)(№-) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

22N-957-1320

COVER

2

01010-81020

BOLT

3

01643-31032

WASHER

4

02782-10313

ELBOW

|4

07235-10313

ELBOW

5

02782-10314

ELBOW

|5

07235-10314

ELBOW

6

07002-11823

O-RING

6A

02896-11009

O-RING

7

22N-957-1331

TUBE,L.H.

|7

22N-957-1330

TUBE,L.H.

8

01010-81020

BOLT

9

01643-31032

WASHER

10

22N-957-1341

TUBE,R.H.

|10

22N-957-1340

TUBE,R.H.

10A

02896-11012

O-RING

11

01010-81020

BOLT

12

01643-31032

WASHER

13

22N-957-1350

BLOCK,L.H.

14

22N-957-1360

BLOCK,R.H.

15

01010-81020

BOLT

16

01643-31032

WASHER

17

11Y-62-12360

UNION

|17

20T-62-71150

UNION

18

07002-11823

O-RING

18A

02896-11012

O-RING

19

22N-957-1740

HOSE

|19

07631-20407

HOSE

20

22N-957-1310

VALVE ASS'Y

21

07002-11823

O-RING

22

22N-957-1370

BLOCK,R.H.

23

22N-957-1380

BLOCK,L.H.

24

01010-80820

BOLT

25

01643-30823

WASHER

26

11Y-62-12360

UNION

|26

20T-62-71150

UNION

27

07002-11823

O-RING

27A

02896-11012

O-RING

28

22N-957-1720

HOSE

|28

07631-20409

HOSE

29

21R-54-11840

SEAL

30

20S-70-71571

PIN

31

04082-00212

LOCK

32

01010-81230

BOLT

33

01643-31232

WASHER

34

20T-70-81780

SPACER¤ 1.0MM

35

20S-70-71571

PIN

36

04082-00212

LOCK

37

01010-81230

BOLT

38

01643-31232

WASHER

39

20T-70-81710

SPACER¤ 1.0MM
