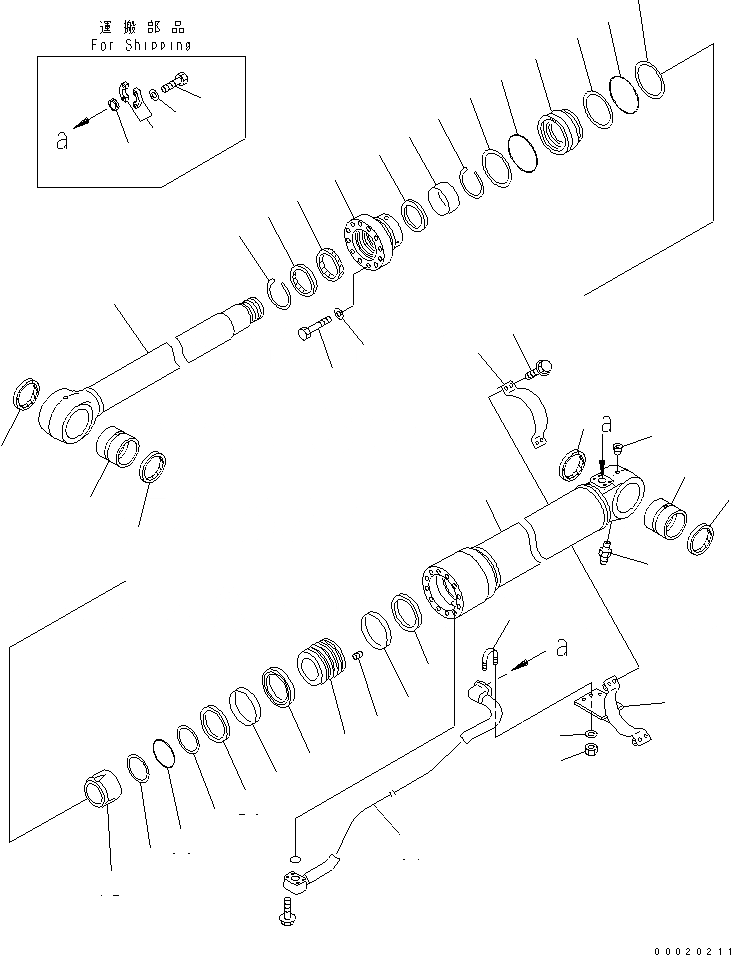

Запчасти Komatsu PC450LCHD-8 BM ЦИЛИНДР Y ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

707-01-XU970

BOOM CYLINDER GROUP, L.H. (FINAL COATING)

G-2

707-01-XU980

BOOM CYLINDER GROUP, R.H. (FINAL COATING)

1

707-01-0F670

CYLINDER ASSEMBLY

1

707-13-16860

CYLINDER

2

707-76-10290

BUSHING

3

07145-00100

SEAL, DUST (KIT)

4

07020-00000

FITTING, GREASE

5

07043-00108

PLUG

6

707-58-11490

ROD

7

707-76-11220

BUSHING

8

07145-00110

SEAL, DUST (KIT)

9

707-71-31670

COLLAR

10

707-35-91640

RING, BACK-UP (KIT)

11

07000-15150

O-RING (KIT)

12

707-71-61140

PLUNGER

13

707-27-16580

HEAD

14

198-63-94170

SEAL, DUST (KIT)

15

07179-13126

RING, SNAP

16

707-52-90850

BUSHING

17

707-75-11040

RING, SNAP

18

707-51-11030

PACKING, ROD (KIT)

19

707-51-11640

RING, BUFFER (KIT)

20

707-35-91640

RING, BACK-UP (KIT)

21

07000-15150

O-RING (KIT)

22

01010-82085

BOLT

23

707-88-75310

WASHER

24

707-36-16580

PISTON

25

01310-01216

SCREW

26

707-44-16180

RING, PISTON (KIT)

27

707-39-16120

RING, WEAR (KIT)

28

707-44-16910

RING

29

07001-05100

RING, BACK-UP (KIT)

30

07000-15100

O-RING (KIT)

31

707-86-12550

TUBE, L.H.

31

707-86-12560

TUBE, R.H.

32

707-88-25370

BRACKET, L.H.

32

707-88-25380

BRACKET, R.H.

33

707-88-21660

BAND

34

01435-01235

BOLT

35

07283-33442

CLIP

36

01643-31032

WASHER

37

01597-01009

NUT

38

707-88-33040

CAP

39

07371-31049

FLANGE, SPLIT

40

07372-21035

BOLT

41

01643-51032

WASHER

K

707-99-67870

SERVICE KIT
