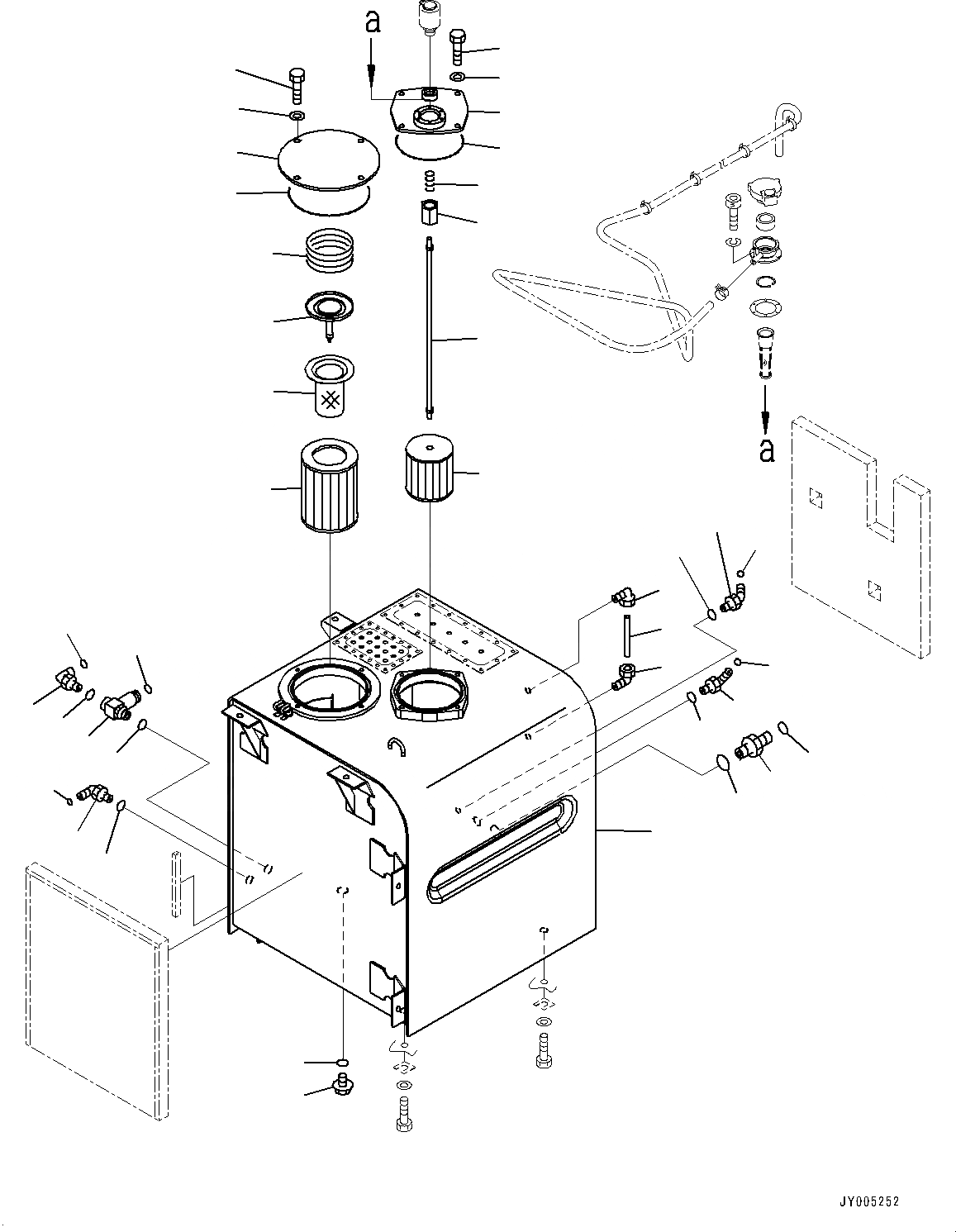

Запчасти Komatsu PC450LC-8R ГИДР. БАК., БАК (№7-) ГИДР. БАК., С СТРЕЛА ANTI-DROP КЛАПАН

1

208-60-75111

Tank

1

208-60-75110

Tank

2

203-60-31100

Elbow Assembly

3

203-60-31160

Tube

4

07044-12412

Plug

5

07002-12434

O-ring

6

207-62-72171

Elbow

7

07002-12434

O-ring

8

02896-11018

O-ring

9

02782-10522

Elbow

10

07002-12434

O-ring

11

02896-11015

O-ring

12

02782-10315

Elbow

13

07002-12034

O-ring

14

02896-11009

O-ring

15

207-62-72110

Union

16

07002-13334

O-ring

17

207-62-64740

O-ring

18

02782-10422

Elbow

19

07002-12034

O-ring

20

02896-11012

O-ring

21

02783-10210

Elbow

22

07002-11423

O-ring

23

02896-11008

O-ring

24

208-60-71123

Element, Transmission Oil Filter

25

07069-25400

Strainer

26

208-60-71160

Valve Assembly

27

07069-34075

Spring

28

208-60-71130

Plate

29

07000-15210

O-ring

30

01010-81225

Bolt

31

01643-31232

Washer

|$32

208-60-71140

Strainer Assembly

32

208-60-71150

Rod Assembly

33

12R-60-11230

Spring

34

20Y-60-21320

Holder

35

22B-60-11160

Strainer

36

208-60-61190

Cover

37

07000-15180

O-ring

38

01010-81225

Bolt

39

01643-31232

Washer
