/ / / / / / DIG ТРУБЫ СТРЕЛЫ (ЩИТКИ OF )

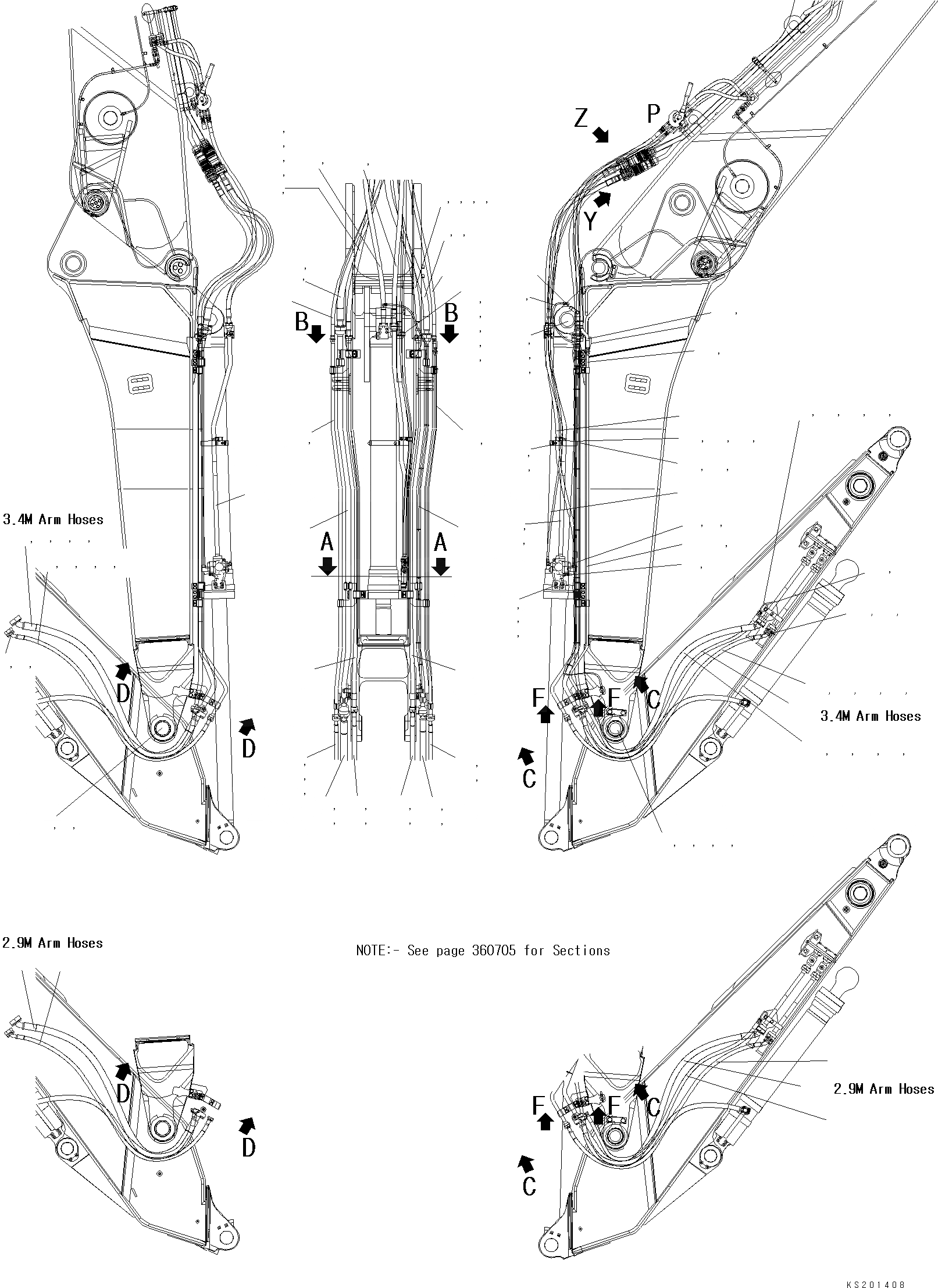

Запчасти Komatsu PC450LC-8K HIGH REACH DEMOLITION DIG ТРУБЫ СТРЕЛЫ (ЩИТКИ OF ) TABLE OF CONTENTS PC-8 ВЫС. REACH РАЗРУШ. ЗДАНИЙ
14
13
12
11
10
21
19
21
20
18
17
16
15
55
27
26
22
76
77
78
79
80
1
2
3
4
5
7
8
9
6
35
36
37
38
39
40
41
42
46
47
56
57
58
59
60
61
62
63
64
65
96
97
98
99
66
67
113
114
111
112
106
107
108
109
110
103
104
105
102
100
101
94
95
68
69
70
121
122
123
124
125
126
127
133
134
135
128
129
130
131
132
115
116
117
118
119
120
89
90
91
92
93
140
139
138
71
72
51
43
44
45
32
33
34
52
53
54
48
49
50
86
87
88
23
24
25
28
29
30
136
137
73
74
75
81
82
83
84
85
31
1
07085-01018
HOSE
1
07085-01016
HOSE
2
07000-13032
O-RING
3
07371-31049
FLANGE
4
07372-21035
BOLT
5
01643-51032
WASHER
6
02756-00621
HOSE
7
208-62-KC940
HOSE
7
07085-01216
HOSE
8
07000-13038
O-RING
9
07000-13032
O-RING
9
07000-13038
O-RING
10
07085-01017
HOSE
10
07085-01016
HOSE
11
07000-13032
O-RING
12
07371-31049
FLANGE
13
07372-21035
BOLT
14
01643-51032
WASHER
15
02756-00623
HOSE
16
207-62-KJ720
HOSE
16
07085-01416
HOSE
17
07000-13048
O-RING
18
07000-13032
O-RING
18
07000-13048
O-RING
19
208-62-KC960
HOSE
19
07085-01016
HOSE
20
208-62-KC950
HOSE
20
07085-01016
HOSE
21
07000-13032
O-RING
22
208-62-KD160
TUBE
23
07371-30640
FLANGE
24
07372-21035
BOLT
25
01643-51032
WASHER
26
02896-11018
O-RING
27
208-62-KD140
TUBE
28
07371-51470
FLANGE
29
01010-81455
BOLT
30
01643-31445
WASHER
31
208-62-KD120
TUBE
32
07371-31049
FLANGE
33
07372-21035
BOLT
34
01643-51032
WASHER
35
142-03-11160
SPACER
36
04434-53411
CLIP
37
07095-20625
CUSHION
38
04434-51912
CLIP
39
07095-20213
CUSHION
40
01010-81275
BOLT
41
01643-31232
WASHER
42
208-62-KD150
TUBE
43
07371-30640
FLANGE
44
07372-81035
BOLT
45
01643-51032
WASHER
46
02896-11018
O-RING
47
208-62-KD130
TUBE
48
07371-51260
FLANGE
49
01010-81245
BOLT
50
01643-31232
WASHER
51
208-62-KD110
TUBE
52
07371-31049
FLANGE
53
07372-21035
BOLT
54
01643-51032
WASHER
55
207-01-XU781
ARM CYLINDER
56
205-70-51380
ELBOW
57
208-70-KD170
EPH HOSE
58
08034-20536
BAND (T50 BLK)
59
208-70-61191
PIN
60
205-70-66580
PLATE
61
01010-81235
BOLT
62
01643-31232
WASHER
63
207-88-25450
BRACKET
64
707-88-21880
BRACKET
65
01435-01235
BOLT
66
208-62-72880
TUBE
67
07000-13035
O-RING
68
01435-01040
BOLT
69
702-21-08730
PILOT VALVE
70
07000-13035
O-RING
71
01435-01065
BOLT
72
01435-01055
BOLT
73
20Y-62-81830
FLANGE
74
01252-71025
BOLT
75
07000-13035
O-RING
75
07000-13025
O-RING
76
07097-21423
HOSE
77
07000-13048
O-RING
78
07371-51470
FLANGE
79
01010-81455
BOLT
80
01643-31445
WASHER
81
07097-20623
HOSE
82
07000-13025
O-RING
83
07371-30640
FLANGE
84
07372-21035
BOLT
85
01643-51032
WASHER
86
KV-1327-1160
HOLDER
87
01010-82055
BOLT
88
01643-32060
WASHER
89
KV-1B27-1140
DDC PIN
90
205-70-61560
PLATE
91
01010-82045
BOLT
92
01643-32060
WASHER
93
208-70-31310
SPACER
94
07040-11409
PLUG
95
07002-11423
O-RING
96
02782-10311
ELBOW
97
07002-11423
O-RING
98
02896-11009
O-RING
99
02782-1062A
ELBOW
100
07002-12434
O-RING
101
02896-61018
O-RING
102
02762-00340
EPH HOSE
103
07283-33450
CLIP
104
01597-01009
NUT
105
01643-31032
WASHER
106
02762-00641
EPH HOSE
107
04434-53411
CLIP
108
07095-20625
CUSHION
109
04434-51912
CLIP
110
07095-20213
CUSHION
111
208-62-KD170
TUBE
112
02896-11015
O-RING
113
02756-00522
HOSE
114
08034-20536
BAND (T50L BLK)
115
02762-00522
EPH HOSE
116
07097-21223
HOSE
117
07000-13038
O-RING
118
07375-51260
FLANGE
119
01010-81245
BOLT
120
01643-31232
WASHER
121
KV-B240-8080
BLOCK
122
01011-81230
BOLT
123
02781-00516
UNION
124
07002-12034
O-RING
125
02896-11015
O-RING
126
07040-12012
PLUG
127
07002-12034
O-RING
128
07097-20623
HOSE
129
07000-13025
O-RING
130
07371-30640
FLANGE
131
07372-21035
BOLT
132
01643-51032
WASHER
133
20Y-62-81830
FLANGE
134
01252-71025
BOLT
135
07000-13035
O-RING
135
07000-13025
O-RING
136
07097-21418
HOSE
137
07097-20618
HOSE
138
02762-00517
EPH HOSE
139
07097-21218
HOSE
140
07097-20618
HOSE
