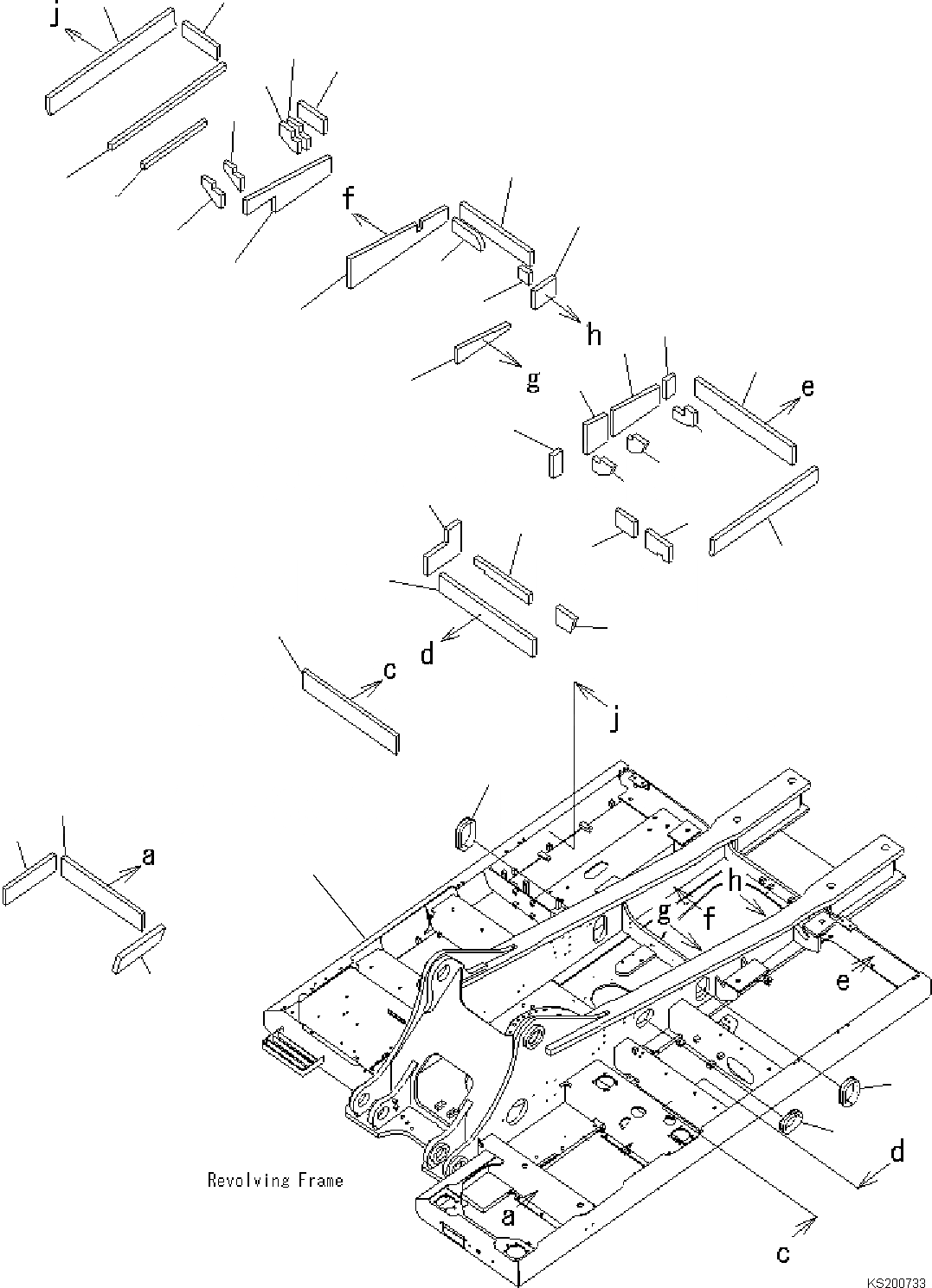

Запчасти Komatsu PC450LC-8K HIGH REACH DEMOLITION НАКЛОН. ОСНОВНАЯ РАМА TABLE OF CONTENTS PC-8 ВЫС. REACH РАЗРУШ. ЗДАНИЙ

1

208-46-KB204

FRAME

|1

208-46-KB203

FRAME

|1

208-46-KB202

FRAME

|1

208-46-KB201

FRAME

2

20Y-46-42320

SHEET

3

20Y-46-42340

SHEET

4

207-46-71510

SHEET

5

208-46-75640

SHEET

6

208-46-75880

SHEET

7

208-46-75890

SHEET

8

208-46-75910

SHEET

9

208-46-75990

SHEET

10

208-46-75872

SHEET

11

208-46-75280

SHEET

12

208-46-75290

SHEET

13

208-46-75790

SHEET

14

208-46-75810

SHEET

15

208-46-75820

SHEET

16

208-46-75830

SHEET

17

208-46-75840

SHEET

18

208-46-75850

SHEET

19

208-46-75860

SHEET

20

208-46-75130

SHEET

21

208-46-75770

SHEET

22

208-46-75780

SHEET

23

208-46-75710

SHEET

24

208-46-75720

SHEET

25

208-46-75950

SHEET

26

207-46-KC290

SHEET

27

208-46-75140

SHEET

28

208-46-75180

SHEET

29

208-46-75190

SHEET

30

208-46-75730

SHEET

31

208-46-75740

SHEET

32

208-46-75750

SHEET

33

208-46-75760

SHEET

34

208-46-75960

SHEET

35

208-46-75790

SHEET

36

208-62-72810

GROMMET

37

208-62-72820

GROMMET

38

208-62-72830

GROMMET
