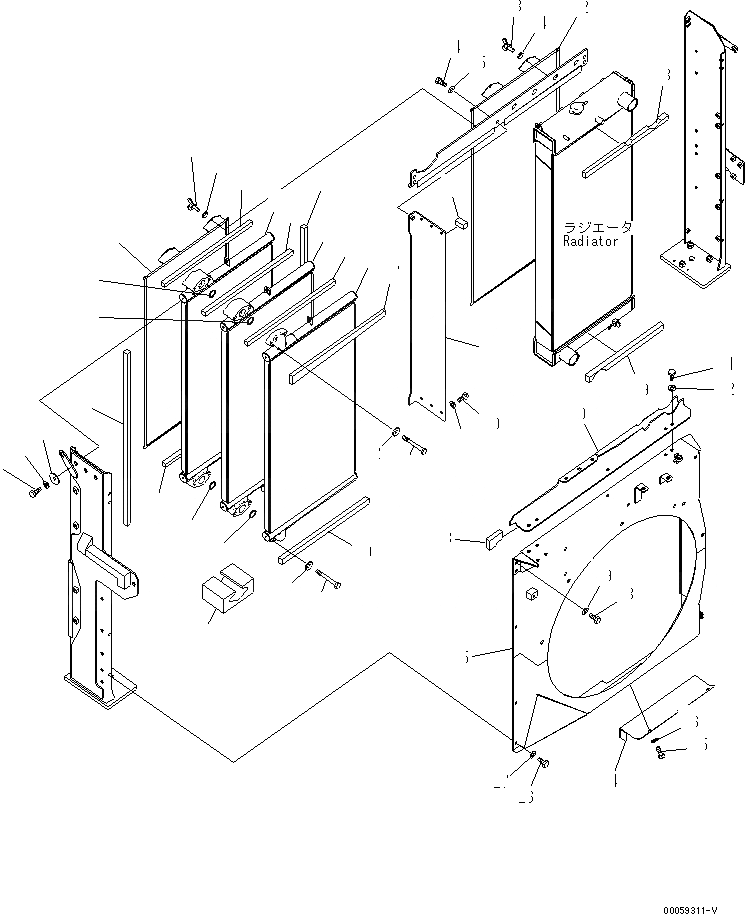

Запчасти Komatsu PC450LC-8 ОХЛАЖД-Е (МАСЛООХЛАДИТЕЛЬ И КОЖУХ) (№K-K9) C СИСТЕМА ОХЛАЖДЕНИЯ

1

208-03-75130

OIL COOLER ASSEMBLY

1

208-03-71680

SEAL

2

208-03-71860

SEAL

3

208-03-75140

OIL COOLER

4

208-03-75150

OIL COOLER

5

208-03-75160

OIL COOLER

6

208-03-75170

FRAME

7

208-03-75670

SEAL

8

208-03-75870

SEAL

9

01011-81205

BOLT

10

01010-81020

BOLT

11

01643-31032

WASHER

12

01643-31232

WASHER

13

07000-13045

O-RING

14

01010-81025

BOLT

15

01643-31032

WASHER

16

01010-81035

BOLT

17

01643-31032

WASHER

18

124-54-26540

WASHER

19

208-03-75450

NET

20

01434-10616

BOLT WING

21

01643-30623

WASHER

22

208-03-75440

NET

23

01434-10616

BOLT WING

24

01643-30623

WASHER

25

208-03-75313

SHROUD

26

01010-81020

BOLT

27

01643-31032

WASHER

28

01010-81025

BOLT

29

01643-31032

WASHER

30

208-03-76380

COVER

31

01010-81025

BOLT

32

01643-31032

WASHER

33

208-03-76390

SEAL

34

208-03-75330

COVER

35

01010-81020

BOLT

36

01643-31032

WASHER

37

208-03-75950

SEAL

38

208-03-75960

SEAL

39

208-03-75970

SEAL

40

208-03-75980

SEAL
