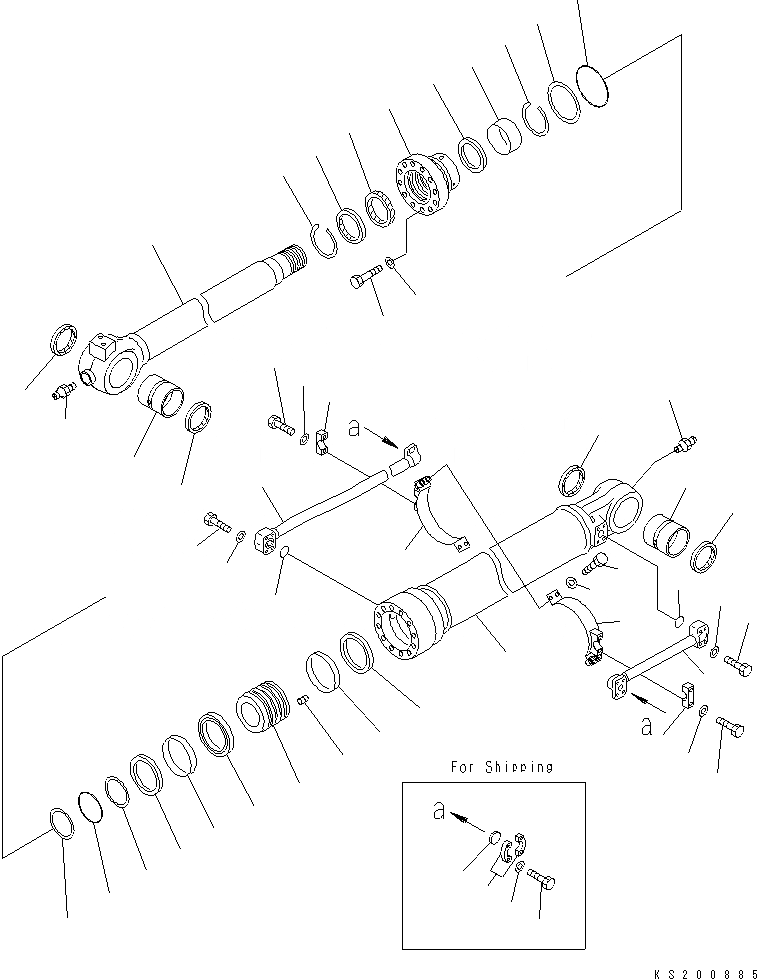

Запчасти Komatsu PC450LC-8 ЦИЛИНДР КОВША (ВНУТР. ЧАСТИ) (ДЛЯ .9M И .M РУКОЯТЬ) (LC DEMO) (№K8-) Y ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

707-F1-00150

CYLINDER ASSEMBLY

1

707-13-16870

CYLINDER

2

707-76-10290

BUSHING

3

07145-00100

SEAL, DUST (KIT)

4

07020-00000

FITTING, GREASE

5

721-58-11120

ROD

6

707-76-10140

BUSHING

7

208-70-73530

SEAL, DUST (KIT)

8

07020-00000

FITTING, GREASE

9

707-27-16580

HEAD

10

707-56-11740

SEAL, DUST (KIT)

11

07179-13126

RING, SNAP

12

707-52-90850

BUSHING

13

707-75-11040

RING, SNAP

14

707-51-11030

PACKING, ROD (KIT)

15

707-51-11650

RING, BUFFER (KIT)

16

707-35-91640

RING, BACK-UP (KIT)

17

07000-15150

O-RING (KIT)

18

707-88-81530

BOLT

19

707-88-75310

WASHER

20

707-36-16580

PISTON

21

01310-01216

SCREW

22

707-44-16150

RING, PISTON (KIT)

23

707-39-16120

RING, WEAR (KIT)

24

707-44-16910

RING

25

07001-05100

RING, BACK-UP (KIT)

26

07000-15100

O-RING (KIT)

27

707-86-12580

TUBE

28

707-86-12570

TUBE

29

07372-21060

BOLT

30

01643-51032

WASHER

31

07000-13035

O-RING (KIT)

32

707-88-25390

BRACKET

33

07372-21240

BOLT

34

01643-51232

WASHER

35

707-88-10150

CLAMP

36

01010-81245

BOLT

37

01643-31232

WASHER

38

707-88-33040

CAP

39

07371-31049

FLANGE, SPLIT

40

07372-21035

BOLT

41

01643-51032

WASHER

|$44

707-99-59760

SERVICE KIT
