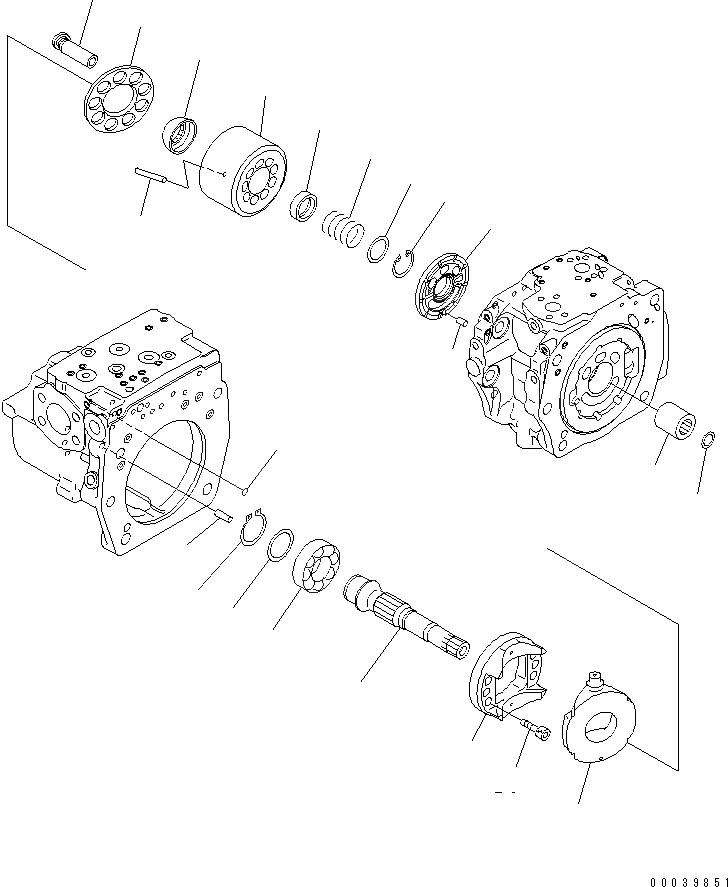

Запчасти Komatsu PC450LC-8 ОСНОВН. НАСОС (7/) (№K8-) Y ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

1

708-2H-00450

PUMP ASSEMBLY

1

708-2H-01450

PUMP SUB ASSEMBLY

1

708-2H-32210

SHAFT

2

708-1H-22150

BEARING

3

708-17-05010

WASHER KIT

3

WASHER 3.0MM

3

WASHER 3.1MM

3

WASHER 3.2MM

4

708-17-12780

RING, SNAP

5

708-2H-04760

BLOCK ASSEMBLY, REAR

5

BLOCK, CYLINDER

6

PLATE, VALVE

7

708-18-13230

PIN

8

04065-05820

RING

9

708-2H-33140

SEAT

10

708-2H-33150

SPRING

11

708-2H-23141

SEAT

12

708-2H-23350

GUIDE, RETAINER

13

708-2H-23360

PIN

14

708-2H-33343

RETAINER, SHOE

15

708-2H-33311

PISTON SUB ASSEMBLY

16

708-2H-04690

CRADLE SUB ASSEMBLY

16

CRADLE

17

CAM, ROCKER

18

04020-01434

PIN, DOWEL

19

07000-B1009

O-RING

20

01252-61235

BOLT

21

708-2H-32130

COUPLING

22

708-2H-12420

RING
