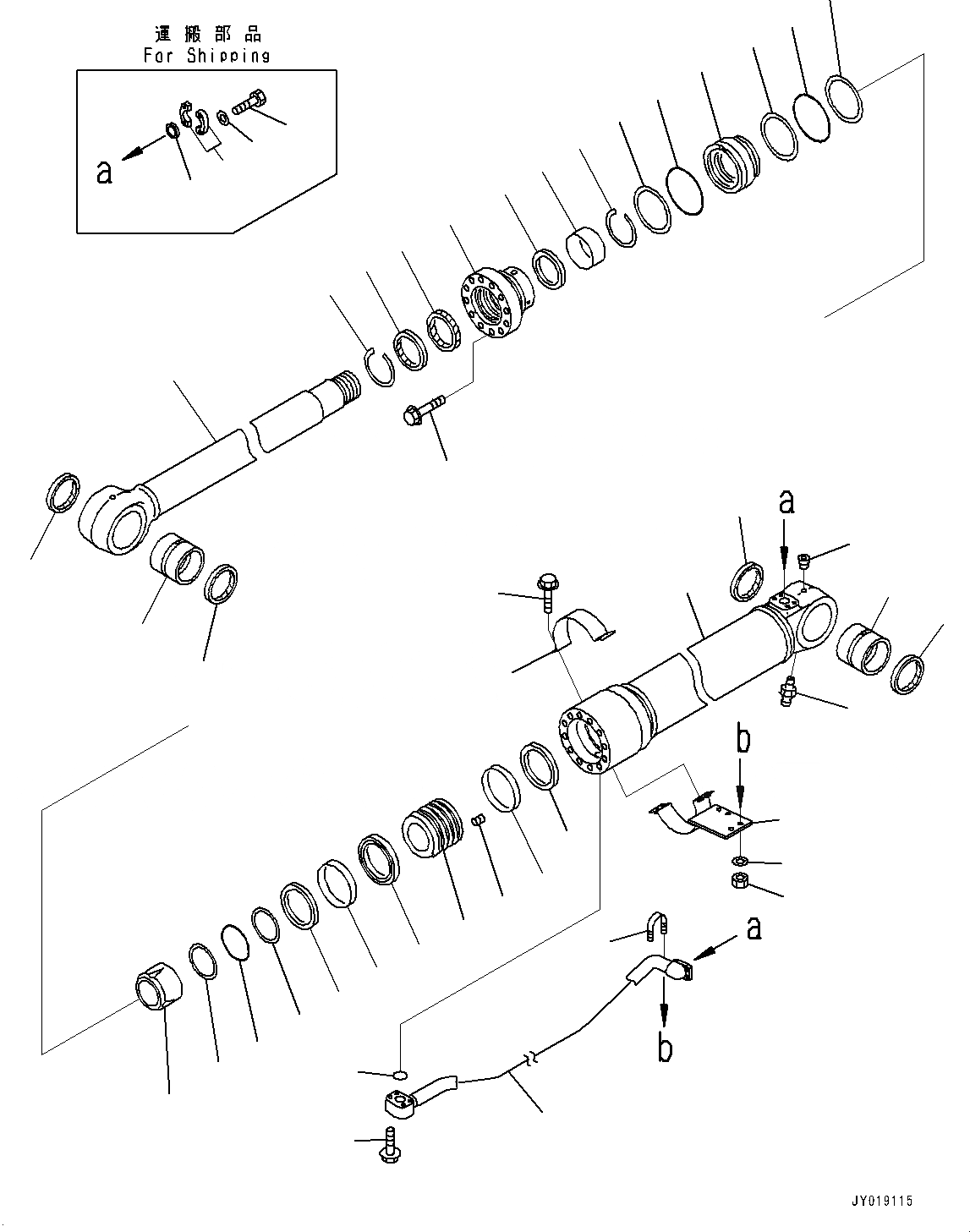

Запчасти Komatsu PC450LC-8 ЦИЛИНДР СТРЕЛЫ, ПРАВ. (№7-) ЦИЛИНДР СТРЕЛЫ, С ПРЕДОТВРАЩЕНИЕМ СМЕЩЕНИЯ КЛАПАН

|$0

707-01-0F670

Cylinder Assembly

1

707-13-16861

Cylinder

2

707-58-11490

Rod

3

707-76-10290

Bushing

4

07145-00100

Seal, Dust, (Kit : K06)

5

07020-00000

Fitting, Grease

6

07043-00108

Plug, Taper

7

707-76-11220

Bushing

8

07145-00110

Seal, Dust, (Kit : K06)

9

707-71-31670

Collar

10

707-35-91640

Ring, Back-up, (Kit : K06)

11

07000-15150

O-ring, (Kit : K06)

12

707-71-61140

Plunger

13

707-27-16580

Head

14

707-56-11740

Seal, Dust, (Kit : K06)

15

07179-13126

Ring, Snap

16

707-52-90851

Bushing

17

707-51-11030

Packing, Rod, (Kit : K06)

18

707-51-11640

Ring, Buffer, (Kit : K06)

19

707-35-91640

Ring, Back-up, (Kit : K06)

20

07000-15150

O-ring, (Kit : K06)

21

707-88-81530

Bolt

22

707-75-11040

Ring, Snap

23

707-36-16580

Piston

24

707-44-16180

Ring, Piston, (Kit : K06)

25

707-39-16120

Ring, Wear, (Kit : K06)

26

707-44-16910

Ring

27

07000-15100

O-ring, (Kit : K06)

28

07001-05100

Ring, Back-up, (Kit : K06)

29

01310-01216

Screw

30

707-86-12560

Tube

31

01435-01055

Bolt

32

07000-13035

O-ring, (Kit : K06)

33

707-88-25380

Bracket

34

707-88-21660

Band

35

01435-01235

Bolt

36

07283-33442

Clip, Pipe

37

01643-31032

Washer

38

01597-01009

Nut

39

707-88-33040

Cap

40

07371-31049

Flange, Split

41

07372-21035

Bolt

42

01643-51032

Washer
