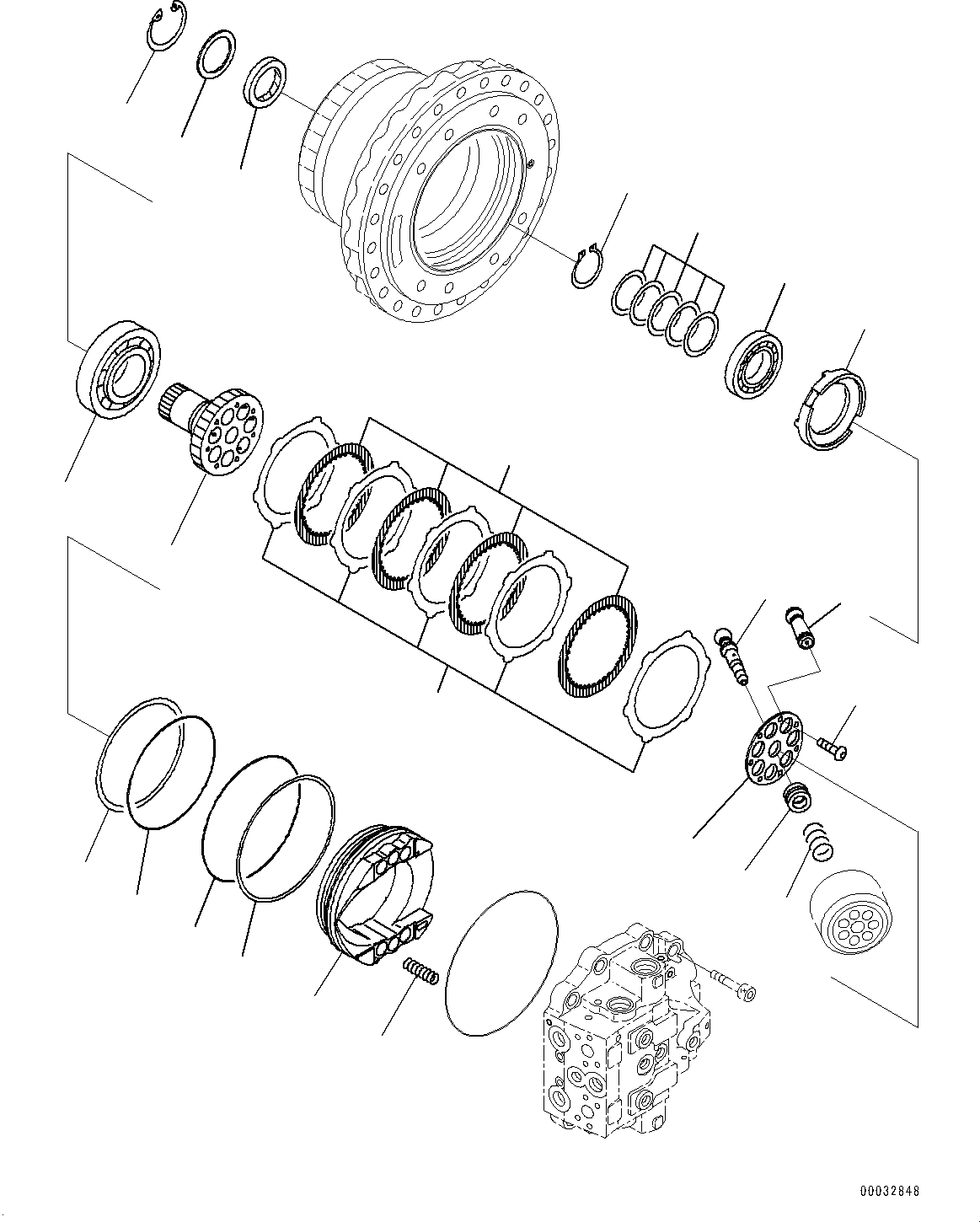

Запчасти Komatsu PC450LC-8 МОТОР ХОДА И КОНЕЧНАЯ ПЕРЕДАЧА, МОТОР ХОДА (/) (№7-) МОТОР ХОДА И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

208-27-00312

Final Drive Assembly

|$1

208-27-00311

Final Drive Assembly

|$2

208-27-00243

Final Drive Assembly

|$3

706-8J-01030

Motor Assembly

|$4

706-8J-01012

Motor Assembly

1

706-8J-41610

Shaft, Drive, Drive

2

706-8J-41010

Bearing

3

706-77-42890

Bearing

4

706-8J-41810

Retainer

5

706-8J-41660

Spacer Kit

5

Spacer, T=2.1mm

5

Spacer, T=2.3mm

5

Spacer, T=2.5mm

5

Spacer, T=2.7mm

5

Spacer, T=1.9mm

6

04064-06525

Ring, Snap, for Shaft Side

7

706-8J-41620

Seal, Oil

8

706-8J-41820

Spacer

9

04065-09030

Ring, Snap

10

706-8J-41280

Shaft

11

706-8J-41270

Ring

12

706-8J-41290

Spring

13

706-8J-41260

Retainer

14

708-23-12350

Screw

15

706-8J-42170

Piston Subassembly

15

706-8J-41161

Piston Subassembly

16

706-7K-91340

Plate

17

706-7K-91350

Disc

18

706-8J-91110

Piston

19

07000-15230

O-ring

20

07001-05230

Ring, Back-up

21

708-8H-15220

O-ring

22

706-8J-91120

Ring, Back-up

23

706-8J-91130

Spring
