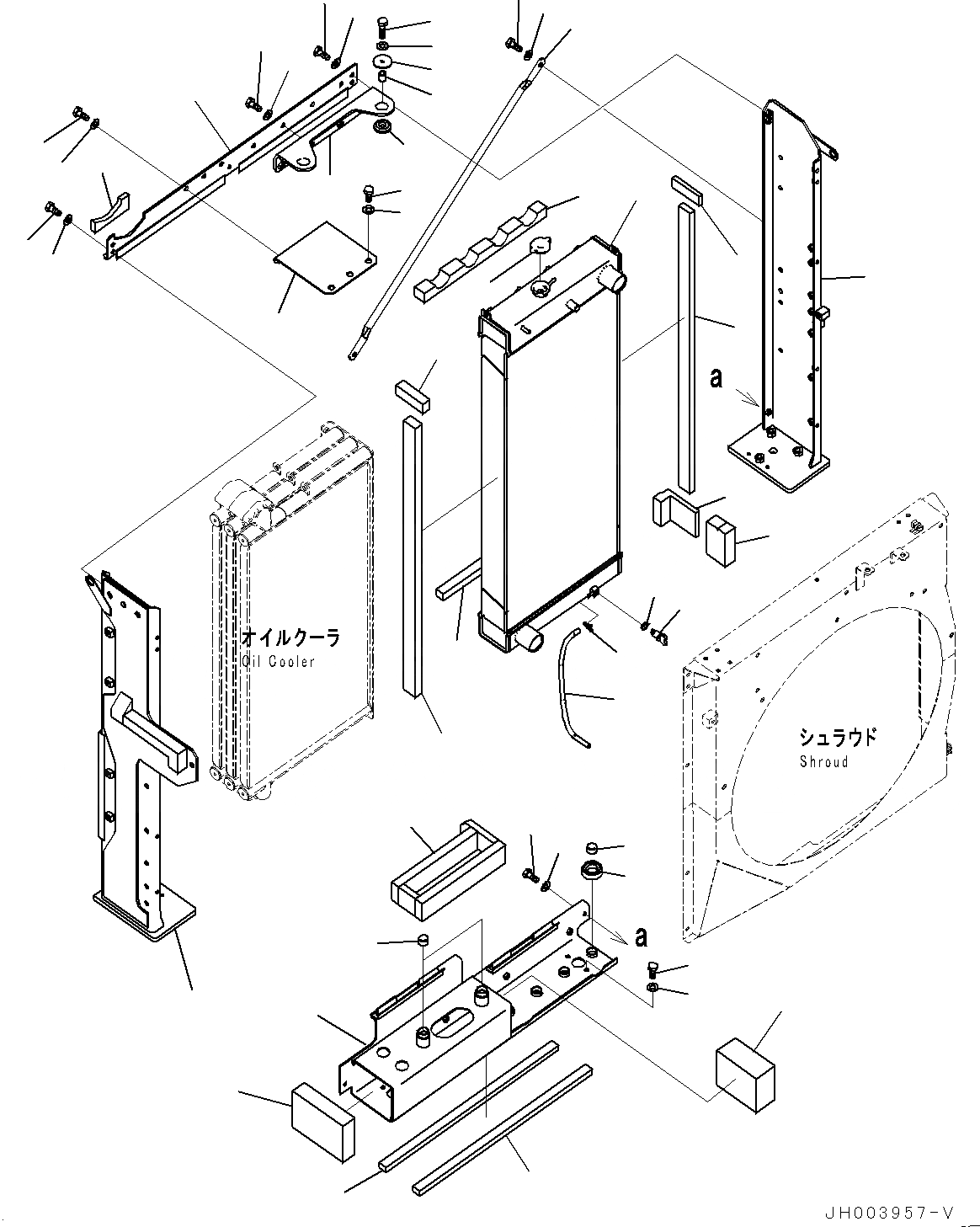

Запчасти Komatsu PC450LC-8 СИСТЕМА ОХЛАЖДЕНИЯ, (/7) (№7-) СИСТЕМА ОХЛАЖДЕНИЯ, ЕС БЕЗОПАСН. REGULATION

1

208-03-75111

Radiator Assembly

2

20Y-03-22110

Cap

3

205-03-71230

Hose

4

20Y-03-11330

Clip

5

205-03-62660

Plug

6

07000-11007

O-ring

7

208-03-75931

Seal

8

208-03-77340

Seal

8

208-03-75940

Seal

9

208-03-77310

Seal

9

208-03-71840

Seal

10

208-03-76490

Bracket

11

01010-81235

Bolt

12

01643-31232

Washer

13

14X-03-51621

Cushion

14

14X-03-51640

Spacer

15

14X-03-51770

Washer

16

01010-81055

Bolt

17

01643-31032

Washer

18

208-03-75580

Seal

19

208-03-75590

Seal

20

208-03-77110

Frame

21

208-03-77120

Frame

22

208-03-76641

Frame

23

01010-81225

Bolt

24

01643-31232

Washer

25

208-03-77380

Frame

26

01010-81030

Bolt

27

01643-31032

Washer

28

01010-81020

Bolt

29

01643-31032

Washer

30

22B-03-12590

Cushion

31

208-03-71380

Cushion

32

208-03-77370

Seal

33

208-03-77270

Seal

34

208-03-77290

Seal

35

208-03-77330

Seal

36

208-03-71821

Seal

37

208-03-75920

Seal

38

208-03-75680

Seal

39

208-03-75690

Seal

40

208-03-76370

Bracket

41

01010-81225

Bolt

42

01643-31232

Washer

43

207-03-71680

Stay

44

01010-81235

Bolt

45

01643-31232

Washer
