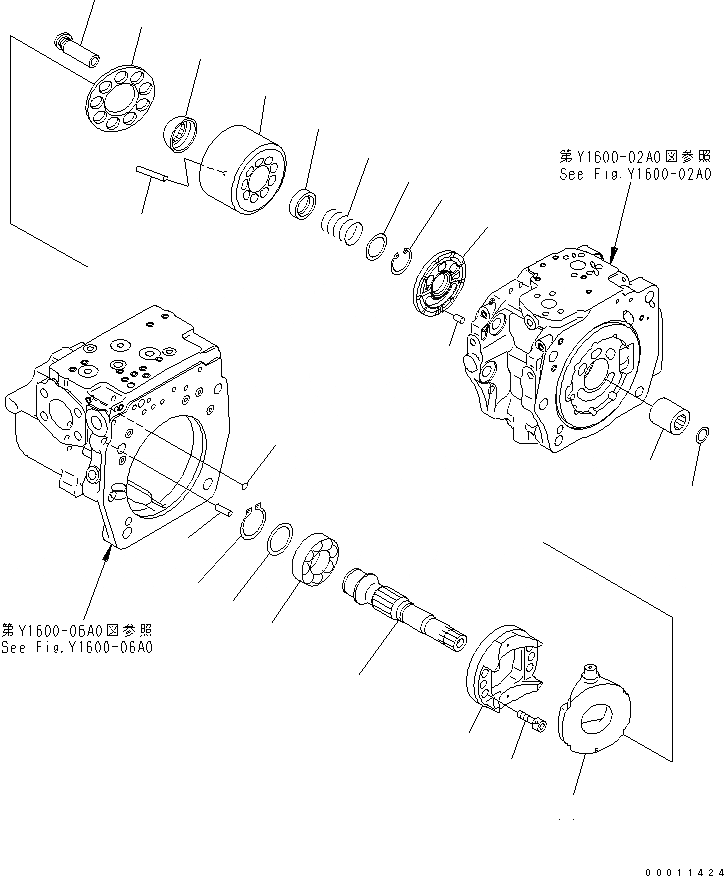

Запчасти Komatsu PC450LC-7-M1 ОСНОВН. НАСОС (7/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

708-2H-00022

PUMP ASS'Y

|1

708-2H-01022

PUMP SUB ASS'Y

1

708-2H-32121

SHAFT

2

708-1H-22150

BEARING

3

708-17-05010

WASHER KIT

|3

WASHER¤ 3.0MM

|3

WASHER¤ 3.1MM

|3

WASHER¤ 3.2MM

4

708-17-12780

RING,SNAP

|5

708-2H-04650

BLOCK ASS'Y,REAR

5

BLOCK,CYLINDER

6

PLATE,VALVE

7

708-18-13230

PIN

8

04065-05820

RING

9

708-2H-33140

SEAT

10

708-2H-33150

SPRING

11

708-2H-23141

SEAT

12

708-2H-23350

GUIDE,RETAINER

13

708-2H-23360

PIN

14

708-2H-33342

RETAINER,SHOE

15

708-2H-33311

PISTON SUB ASS'Y

|16

708-2H-04630

CRADLE SUB ASS'Y

16

CRADLE

17

CAM,ROCKER

18

04020-01434

PIN,DOWEL

19

07000-B1009

O-RING

20

01252-61235

BOLT

21

708-2H-32130

COUPLING

22

708-2H-12420

RING
