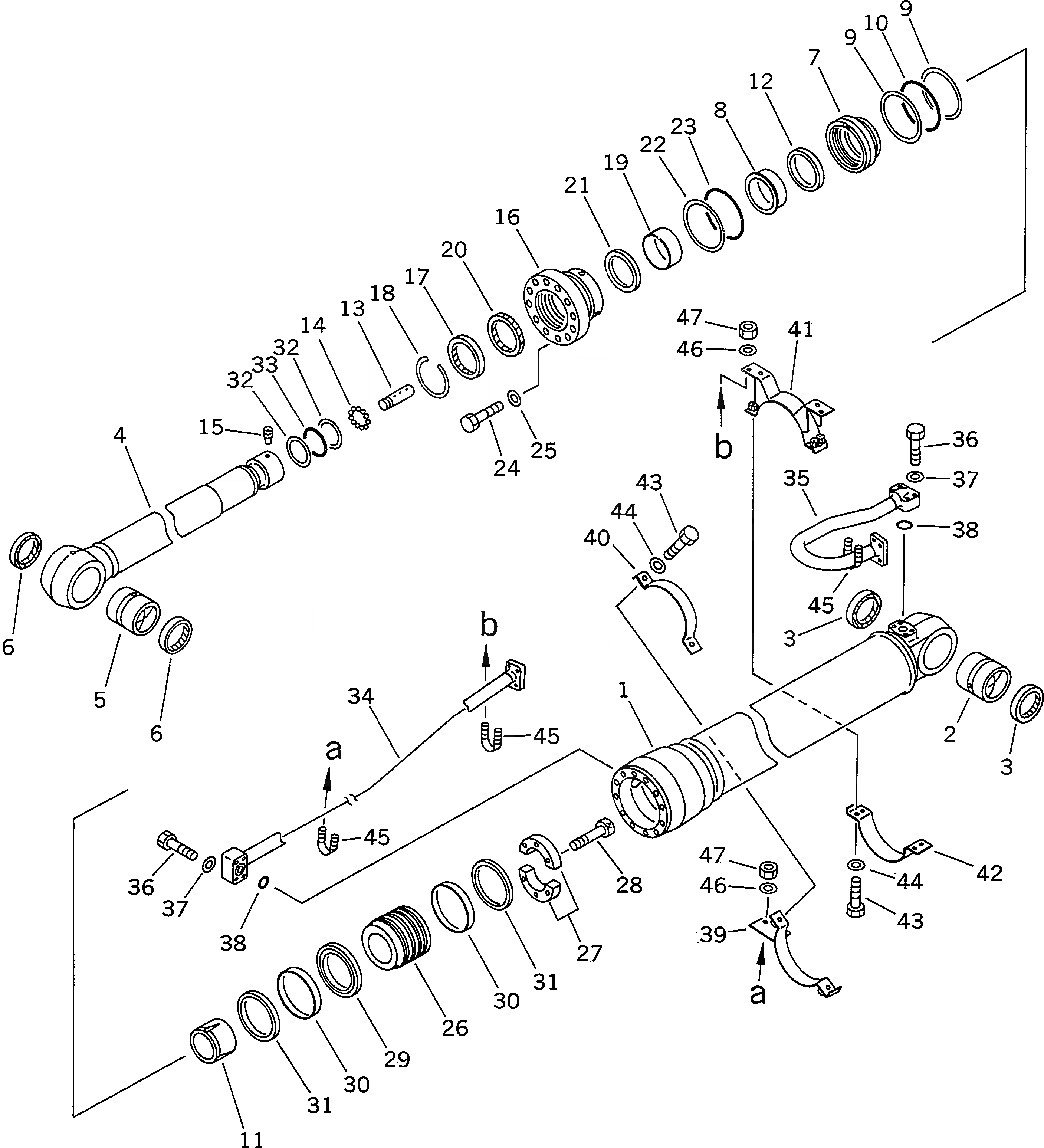

Запчасти Komatsu PC450LC-6K ЦИЛИНДР РУКОЯТИ РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

208-63-K2120

ARM CYLINDER ASS'Y

1

208-63-63140

CYLINDER

2

707-76-11130

BUSHING

3

07145-00110

SEAL,DUST

4

208-63-63120

ROD

5

707-76-11130

BUSHING

6

07145-00110

SEAL,DUST

7

707-71-31291

COLLAR

8

707-71-31281

COLLAR

9

07001-05180

RING,BACK-UP

10

07000-15180

O-RING

11

707-71-61300

PLUNGER

12

209-63-56160

RING

13

707-71-60300

PLUNGER

14

04260-00952

BALL

15

707-71-91040

SCREW

16

707-27-18660

HEAD

17

195-63-93170

SEAL,DUST

18

07179-13136

RING,SNAP

19

707-52-90950

BUSHING

20

707-51-12030

PACKING,ROD

21

707-51-12630

RING,BUFFER

22

07001-05180

RING,BACK-UP

23

07000-15180

O-RING

24

01011-62400

BOLT

25

707-88-75410

WASHER

26

707-36-18500

PISTON

27

707-40-18870

SPACER

28

01252-31455

BOLT

29

707-44-18280

RING,PISTON

30

707-39-18830

RING,WEAR

31

707-44-18920

RING

32

707-35-52940

RING,BACK-UP

33

07000-12100

O-RING

34

208-63-63170

TUBE

35

207-63-63180

TUBE

36

01010-81060

BOLT

37

01643-51032

WASHER

38

07000-13035

O-RING

39

707-88-95811

BRACKET

40

707-88-95800

BAND

41

707-88-95831

BRACKET

42

707-88-95820

BAND

43

01010-81240

BOLT

44

01643-51232

WASHER

45

07283-23442

CLIP

46

01643-31032

WASHER

47

01599-01011

NUT
