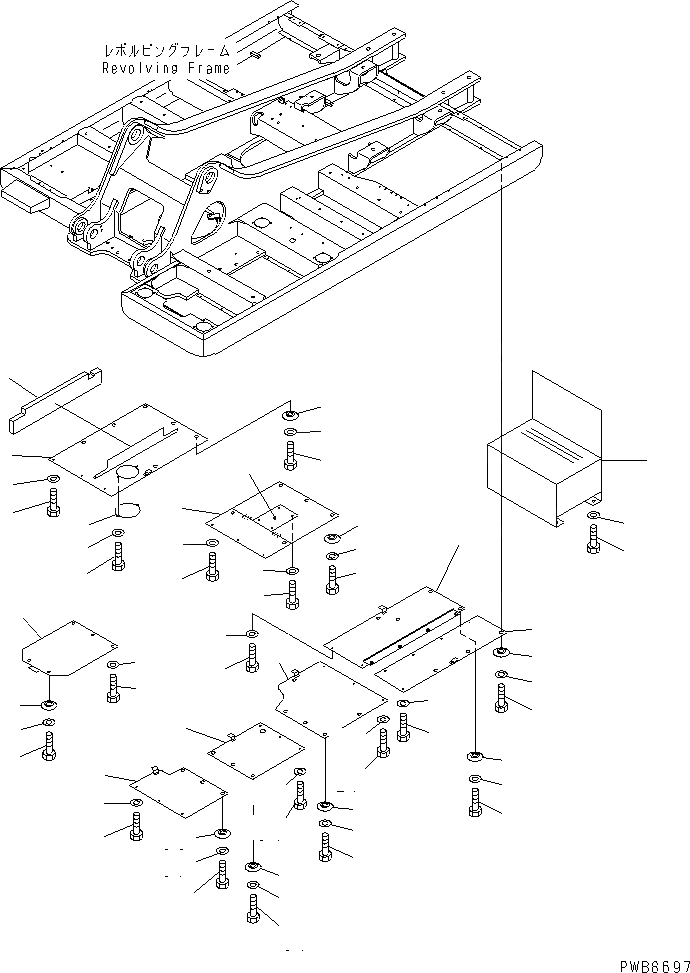

Запчасти Komatsu PC450LC-6K НИЖН. КРЫШКА (ОСНОВНАЯ РАМА)(№K-K999) ЧАСТИ КОРПУСА

1

208-54-K3830

COVER

|1

208-54-K2240

COVER

2

208-54-K3760

SHEET

|2

208-54-63150

SHEET

3

01010-81230

BOLT

4

01643-31232

WASHER

5

208-54-57180

COLLAR

6

01010-81230

BOLT

7

01643-31232

WASHER

8

20Y-54-K8840

COVER

9

01010-81230

BOLT

10

01643-31232

WASHER

11

208-54-K4210

COVER

|11

208-54-K2110

COVER

12

01010-81230

BOLT

13

01643-31232

WASHER

14

208-54-57180

COLLAR

15

01010-81230

BOLT

16

01643-31232

WASHER

17

208-54-K3780

COVER

|17

207-54-K3021

COVER

|17

207-54-K2530

COVER

|17

207-54-64131

COVER

18

01010-81230

BOLT

|18

01010-51230

BOLT

19

01643-31232

WASHER

|19

01643-31232

WASHER

20

208-54-57180

COLLAR

21

01010-81230

BOLT

22

01643-31232

WASHER

23

208-54-64130

COVER

24

01010-81230

BOLT

25

01643-31232

WASHER

26

208-54-57180

COLLAR

27

01010-81230

BOLT

28

01643-31232

WASHER

29

207-54-64160

COVER

30

207-54-K2570

COVER

|30

207-54-64170

COVER

31

01010-81230

BOLT

32

01643-31232

WASHER

33

208-54-57180

COLLAR

34

01010-81230

BOLT

35

01643-31232

WASHER

36

01010-81230

BOLT

37

01643-31232

WASHER

38

208-54-57180

COLLAR

39

01010-81230

BOLT

40

01643-31232

WASHER

41

207-54-K3031

COVER

|41

207-54-64141

COVER

42

01010-81230

BOLT

|42

01010-81230

BOLT

43

01643-31232

WASHER

|43

01643-31232

WASHER

44

208-54-57180

COLLAR

45

207-54-K3011

BOX

46

208-54-K3790

COVER

47

208-54-57180

COLLAR

48

01010-81230

BOLT

49

01643-31232

WASHER

50

208-54-58490

COVER

51

01010-81230

BOLT

52

01643-31232

WASHER

53

01010-81230

BOLT

54

01643-31232

WASHER
