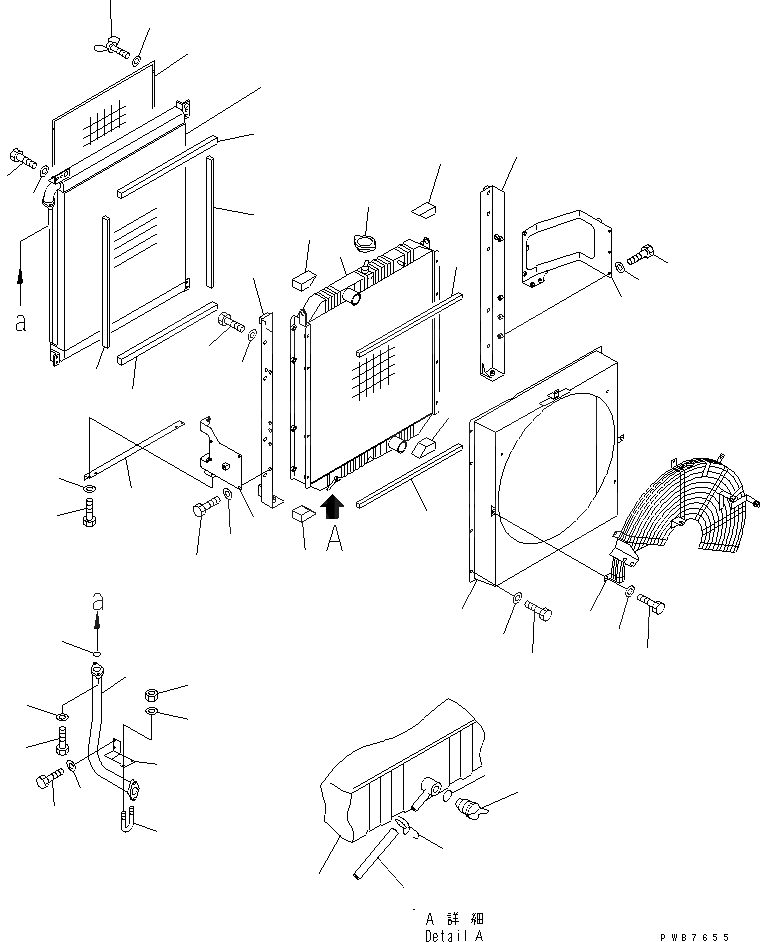

Запчасти Komatsu PC450LC-6K ОХЛАЖД-Е (РАДИАТОР И МАСЛООХЛАДИТЕЛЬ)(№K-) СИСТЕМА ОХЛАЖДЕНИЯ

1

208-03-61350

RADIATOR CORE ASS'Y

2

20Y-03-22110

CAP

3

205-03-62660

PLUG

4

07000-01007

O-RING

5

205-03-71230

HOSE

6

20Y-03-11330

CLIP

7

01010-81225

BOLT

8

01643-31232

WASHER

9

208-03-68340

OIL COOLER ASS'Y

10

01010-81225

BOLT

11

01643-31232

WASHER

12

01010-81225

BOLT

13

01643-31232

WASHER

14

207-03-51171

SEAL

15

207-03-51181

SEAL

16

208-03-61250

SHEET

17

208-03-61240

SHEET

18

208-03-61260

SHEET

19

208-03-61130

FRAME

20

208-03-61140

FRAME

21

208-03-61171

NET

22

01434-10620

BOLT¤ WING

23

01643-30623

WASHER

24

208-03-61152

SHROUD

25

208-03-61512

GUARD

26

01010-81225

BOLT

27

01643-31232

WASHER

28

208-03-61211

TUBE

29

07283-24949

CLIP

30

01599-01011

NUT

31

01643-31032

WASHER

32

208-03-61221

BRACKET

33

07000-03045

O-RING

34

01010-81240

BOLT

35

01643-51232

WASHER

36

01010-81025

BOLT

37

01643-31032

WASHER

38

208-979-6330

BRACKET

39

01010-81025

BOLT

40

01643-31032

WASHER

41

208-979-6320

BRACKET

42

01010-81025

BOLT

43

01643-31032

WASHER

44

208-979-6190

BRACKET

45

01010-81025

BOLT

46

01643-31032

WASHER
