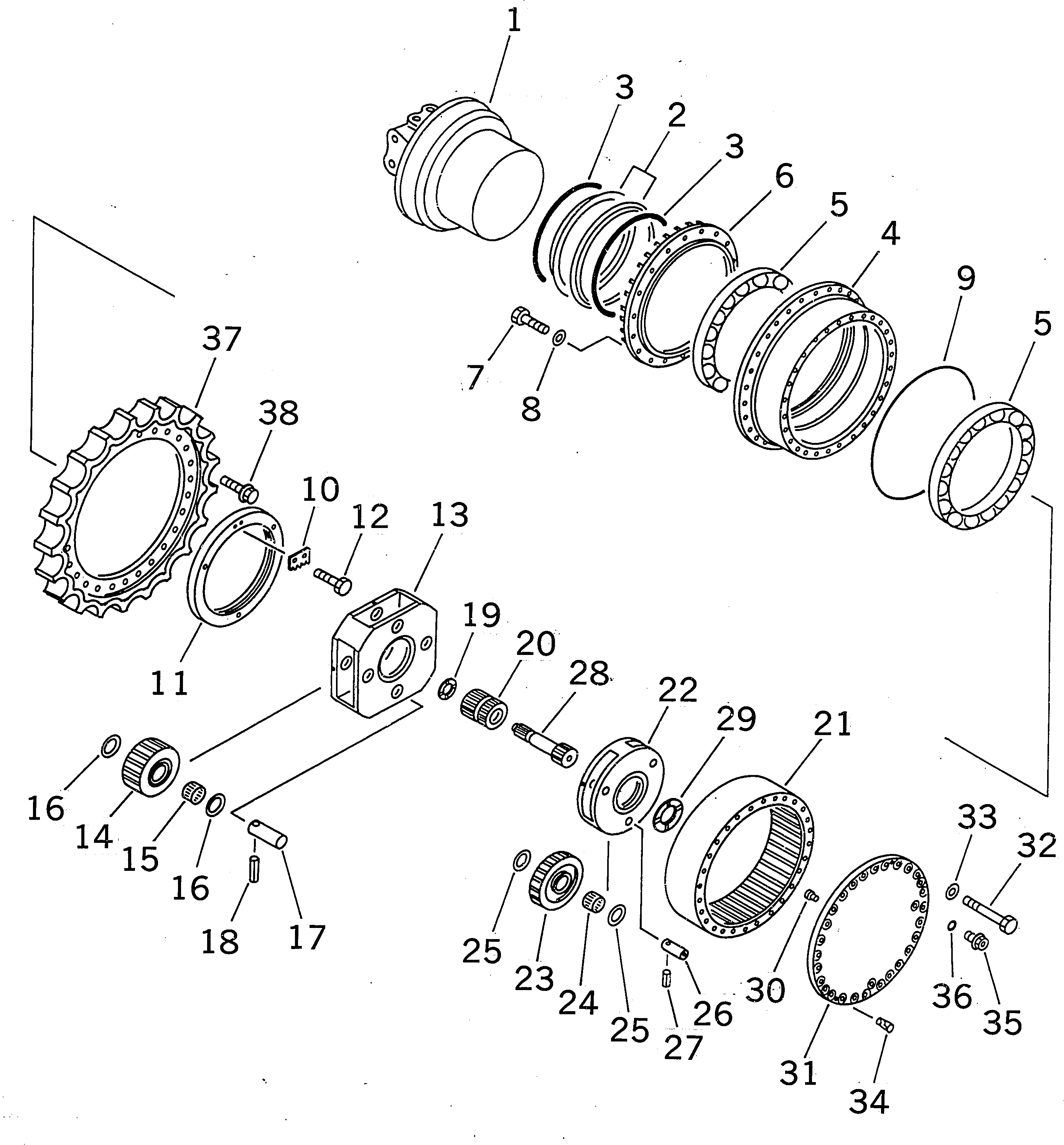

Запчасти Komatsu PC450LC-6 КОНЕЧНАЯ ПЕРЕДАЧА В СБОРЕ (ЗАПЧАСТИ ДЛЯ ОБСЛУЖ-Я) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

208-27-00152

FINAL DRIVE ASS'Y

|1

208-27-00151

FINAL DRIVE ASS'Y

|1

208-27-00150

FINAL DRIVE ASS'Y

1

706-88-00151

MOTOR ASS'Y

|1

706-88-00150

MOTOR ASS'Y

|1

706-88-00111

MOTOR ASS'Y

|1

706-88-00110

MOTOR ASS'Y

|2

208-27-00140

FLOATING SEAL ASS'Y

|2

17M-27-00102

FLOATING SEAL ASS'Y

2

RING

|2

RING

3

O-RING

4

208-27-61192

HUB

|4

208-27-61191

HUB

|4

208-27-61190

HUB

5

208-27-62110

BEARING

|5

208-27-51240

BEARING

6

208-27-51212

COVER

|6

208-27-51211

COVER

7

01010-51240

BOLT

8

01643-31232

WASHER

9

208-27-52350

O-RING

10

208-27-61270

LOCK

11

208-27-61261

NUT

|11

208-27-61260

NUT

12

01010-51020

BOLT

13

208-27-61170

CARRIER,2ND

14

208-27-61140

GEAR

15

207-27-61230

BEARING

16

20Y-27-21250

WASHER

17

207-27-61250

PIN

18

20Y-27-21290

PIN

19

207-27-52270

SPACER

20

208-27-61131

GEAR

|20

208-27-61130

GEAR

21

208-27-61150

GEAR

22

208-27-61160

CARRIER,1ST

23

208-27-61121

GEAR

24

207-27-61220

BEARING

25

20Y-27-21240

WASHER

26

207-27-61240

PIN

27

20Y-27-21280

PIN

28

208-27-61111

SHAFT

|28

208-27-61110

SHAFT

29

20Y-27-11250

SPACER

30

208-27-61350

BUTTON

|30

207-27-61280

BUTTON

31

208-27-61180

COVER

32

207-27-52341

BOLT

33

01643-31845

WASHER

34

07049-01215

PLUG

35

07044-12412

PLUG

36

07002-02434

O-RING

37

208-27-61210

SPROCKET

38

207-27-51311

BOLT
