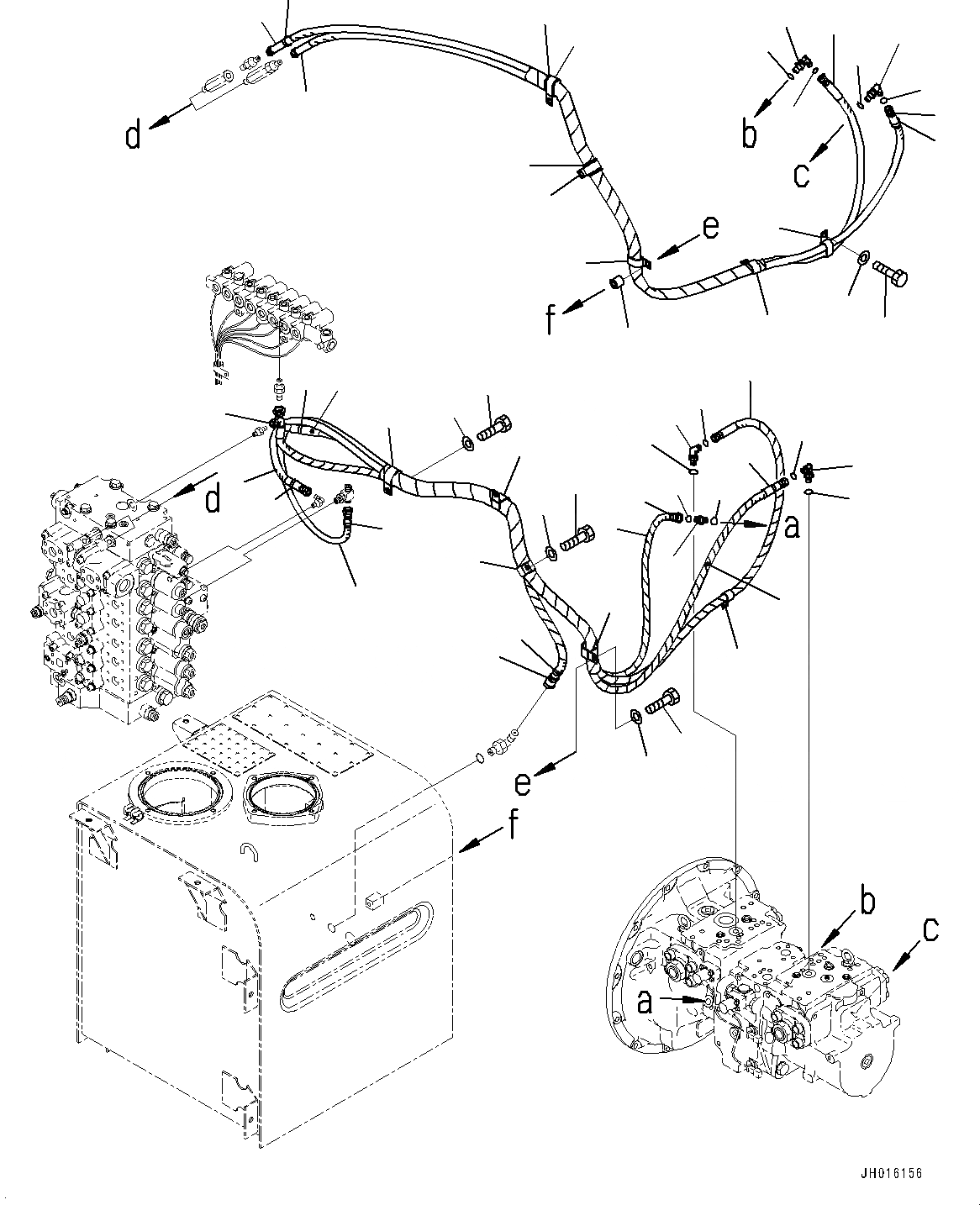

Запчасти Komatsu PC450-8 LS ТРУБЫ H [ГИДРАВЛИКА]
![Схема запчастей Komatsu PC450-8 - LS ТРУБЫ H [ГИДРАВЛИКА]](https://partsell.ru/storage/images/komatsu/KC_EB011/h00091a.png)
6
9
1
3
4
16
13
2
5
15
7
11
12
8
19
27
26
24
1
7
18
17
19
13
11
12
10
9
2
8
3
25
14
20
21
19
17
14
28
1
2
3
1
2
3
22
23
21
20
19
27
26
17
18
17
10
1
11Y-62-12160
ELBOW
2
02896-11008
O-RING
3
07002-11423
O-RING
4
11Y-62-12130
NIPPLE
5
02896-11008
O-RING
6
07002-11423
O-RING
7
02760-00227
HOSE, FACE SEAL TYPE
8
02763-00414
HOSE, FACE SEAL TYPE
9
207-62-74861
HOSE, FACE SEAL TYPE
10
208-62-77460
HOSE, FACE SEAL TYPE
11
20Y-62-22790
BAND, RED
12
20Y-62-22810
BAND, YELLOW
13
20Y-62-22820
BAND, BLUE
14
04435-51812
CLIP
15
01010-81220
BOLT
16
01643-31232
WASHER
17
22U-62-37320
HOSE
18
20Y-62-22790
BAND, RED
19
113-899-7950
CLIP
20
01010-81225
BOLT
21
01643-31232
WASHER
22
01010-81250
BOLT
23
01643-31232
WASHER
24
04434-51812
CLIP
25
195-33-11220
SPACER
26
198-06-53630
CUSHION
27
04435-52112
CLIP
28
04435-51812
CLIP
