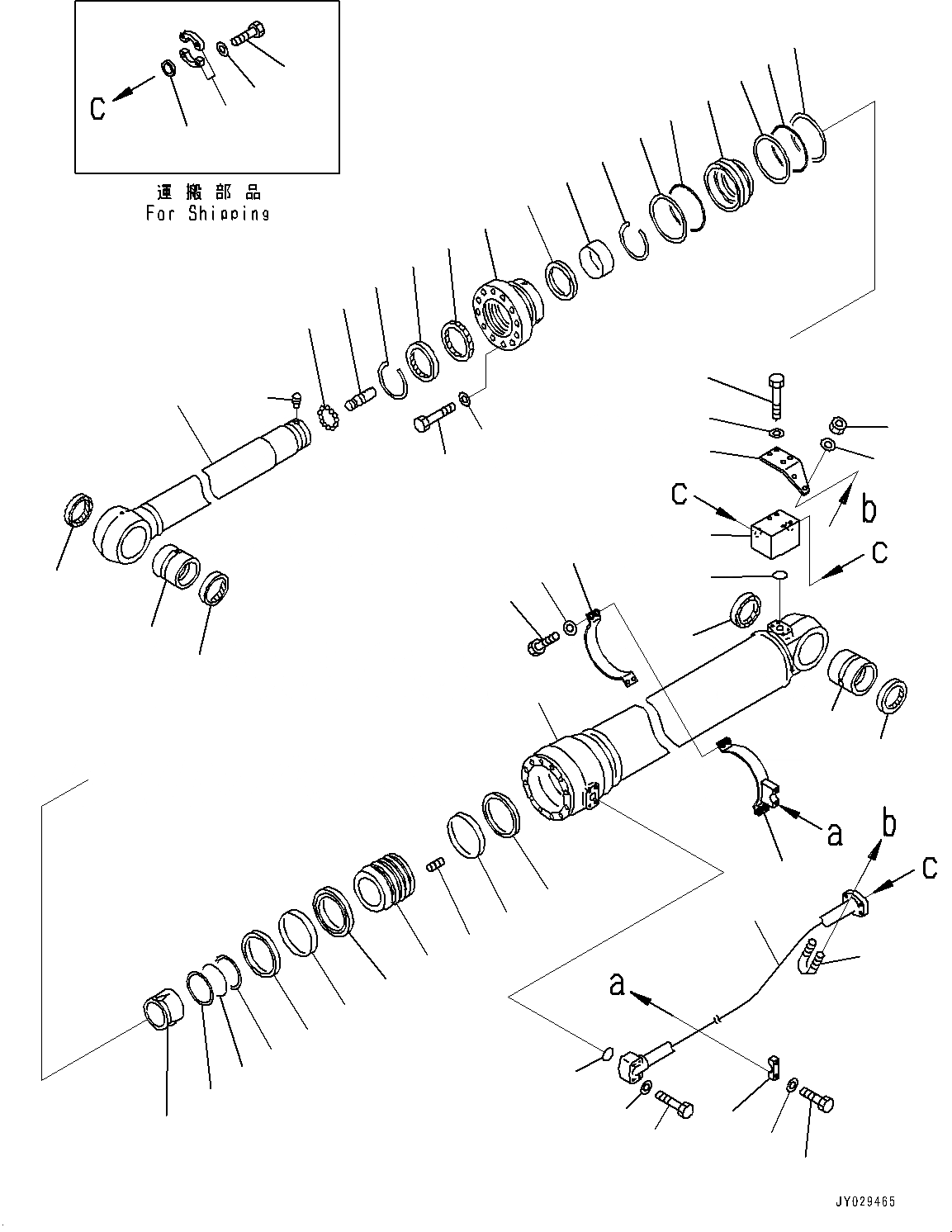

Запчасти Komatsu PC450-8 ЦИЛИНДР РУКОЯТИ T [РАБОЧЕЕ ОБОРУДОВАНИЕ]

|$1

707-01-XMK42

CYLINDER ASSEMBLY,(FINAL COOTING)

|$2

707-01-XCW42

CYLINDER GROUP

1

707-13-18760

CYLINDER

2

707-58-13191

ROD, PISTON

3

707-76-11130

BUSHING

4

07145-00110

SEAL, DUST\((K03)\)

5

707-76-11130

BUSHING

6

07145-00110

SEAL, DUST\((K03)\)

7

707-71-31680

COLLAR

8

707-35-91840

RING, BACK-UP\((K03)\)

9

07000-15175

O-RING\((K03)\)

10

707-71-61430

PLUNGER

11

707-71-70340

PLUNGER

12

04260-00952

BALL

13

707-71-91230

CAP

14

707-27-18180

HEAD, CYLINDER

15

707-56-13740

SEAL, DUST\((K03)\)

16

07179-14146

RING, SNAP

17

707-51-13030

PACKING, ROD\((K03)\)

18

707-51-13650

RING, BUFFER\((K03)\)

19

707-52-91071

BUSHING

20

707-35-91840

RING, BACK-UP\((K03)\)

21

07000-15175

O-RING\((K03)\)

22

07179-13136

RING, SNAP

23

01011-82400

BOLT

24

707-88-75410

WASHER

25

707-36-18530

PISTON

26

07001-05120

RING, BACK-UP\((K03)\)

27

07000-B5120

O-RING\((K03)\)

28

707-44-18250

RING, PISTON\((K03)\)

29

707-39-18510

RING, WEAR\((K03)\)

30

707-44-18920

RING

31

01310-01225

SCREW

32

707-86-12590

TUBE

33

707-86-11610

BLOCK

34

07372-21060

BOLT

35

01643-51032

WASHER

36

01011-81005

BOLT

37

01643-31032

WASHER

38

07000-13035

O-RING\((K03)\)
