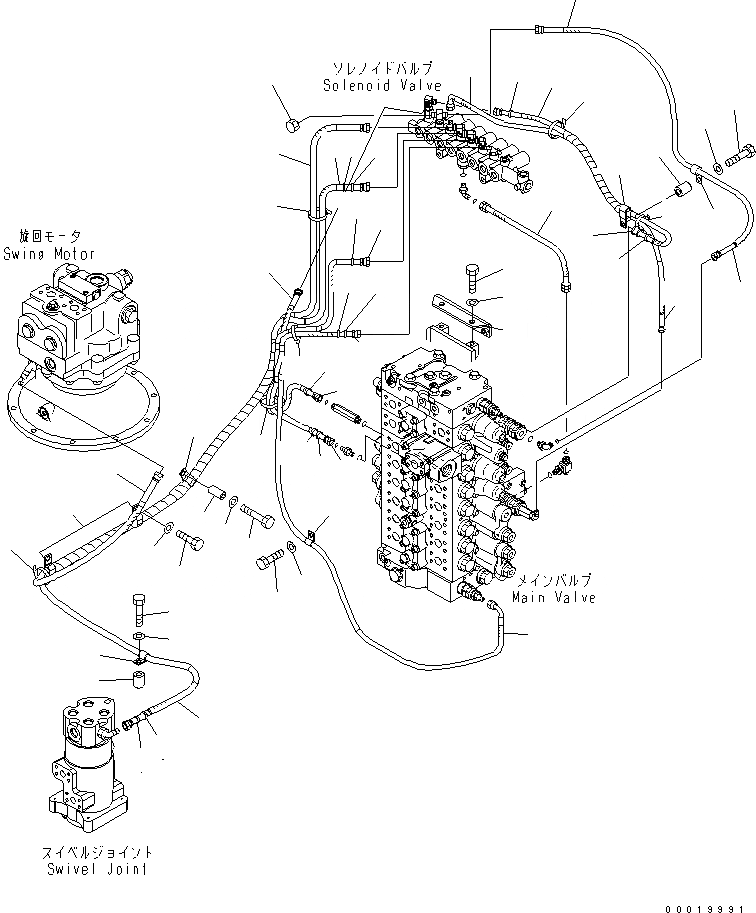

Запчасти Komatsu PC450-7K СОЛЕНОИДНЫЙ КЛАПАН (ПАТРУБКИ И КОРПУС) ГИДРАВЛИКА

1

08034-20519

BAND

2

208-62-72131

HOSE¤ 2500MM

3

208-62-72140

HOSE¤ 2400MM

4

20Y-62-22790

BAND¤ RED

5

20Y-62-22810

BAND¤ YELLOW

6

04435-51512

CLIP

7

176-38-41350

SPACER

8

01010-81285

BOLT

9

01643-31232

WASHER

10

04435-51512

CLIP

11

01010-81225

BOLT

12

01643-31232

WASHER

13

04434-51412

CLIP

14

142-03-11160

SPACER

15

01010-81260

BOLT

16

01643-31232

WASHER

17

08034-20536

BAND

18

208-62-72590

HOSE¤ 700MM

19

208-62-72160

HOSE¤ 720MM

20

208-62-72171

HOSE¤ 1500MM

21

20Y-62-22810

BAND¤ YELLOW

22

20Y-62-22820

BAND¤ BLUE

23

20Y-62-22860

BAND¤ BROWN

24

04434-51012

CLIP

25

01010-81220

BOLT

26

01643-31232

WASHER

27

08034-20519

BAND

28

208-62-72180

HOSE¤ 950MM

29

208-62-72190

HOSE¤ 830MM

30

20Y-62-22820

BAND¤ BLUE

31

04435-51012

CLIP

32

142-03-11160

SPACER

33

01010-81260

BOLT

34

01643-31232

WASHER

35

208-62-71640

HOSE¤ 400MM

36

208-62-72590

HOSE¤ 700MM

37

04434-51012

CLIP

38

02789-00210

NUT

39

208-62-71791

BRACKET

40

01010-81230

BOLT

41

01643-31232

WASHER
