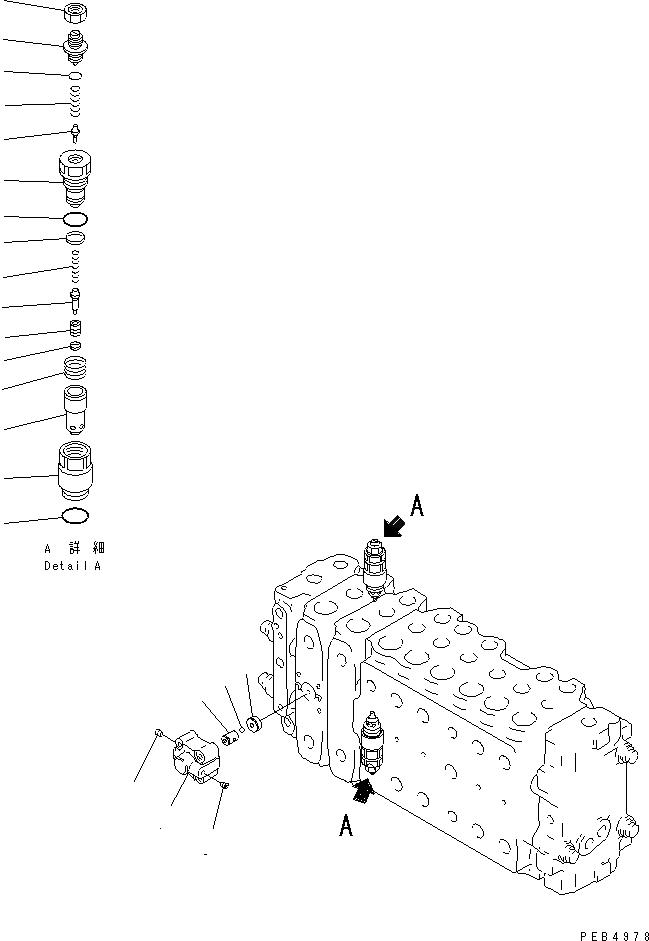

Запчасти Komatsu PC450-6K ОСНОВН.E КЛАПАН (8-СЕКЦИОНН.) (/)(№K-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

723-48-19401

CONTROL VALVE

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1664-01A0 T0 Y1664-15A0.

|1

723-40-66300

VALVE ASS'Y

1

CASE

2

SEAT

3

SEAT

4

BALL

5

PLUG

|6

709-70-74700

VALVE ASS'Y,SUCTION AND SAFETY

6

SLEEVE

7

SLEEVE

8

POPPET

9

PISTON

10

PLUG

11

POPPET

12

SCREW

13

SPRING

14

SPRING

15

SPRING

16

SEAL

17

SEAL

18

709-25-11390

O-RING

19

O-RING

20

O-RING

21

NUT
