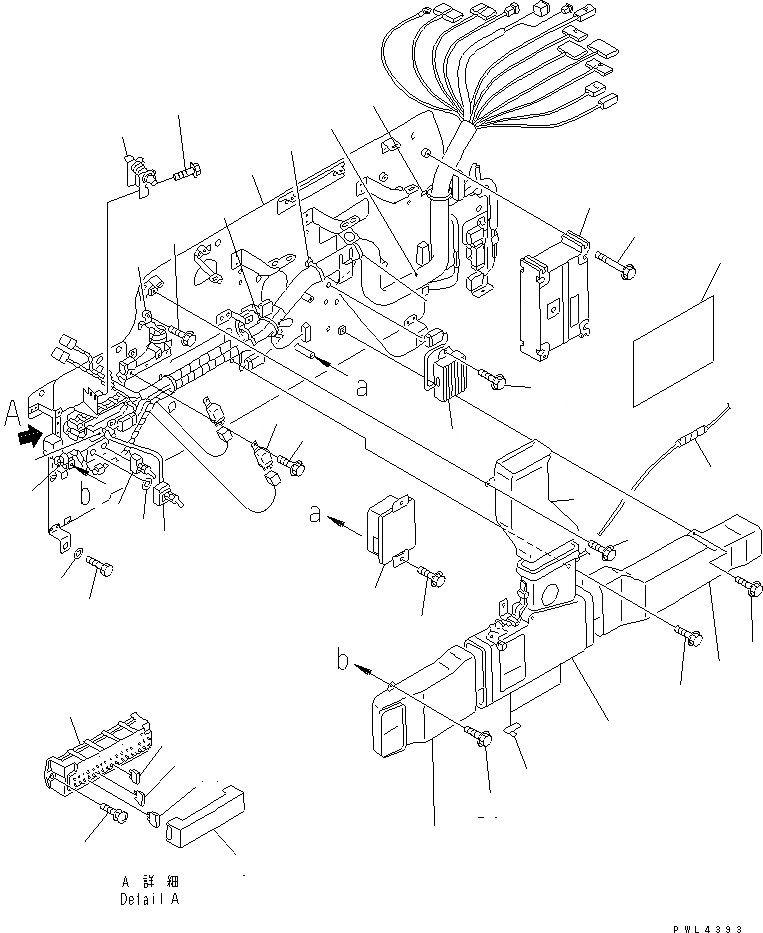

Запчасти Komatsu PC450-6K КАБИНА (ОСНОВ.) (РАБОЧ. РЫЧАГ С P.P.C. КЛАПАН)(№K-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

20Y-06-25110

BASE

2

20Y-06-24121

SWITCH ASS'Y

3

01641-21223

WASHER

4

569-06-61960

RELAY

5

01435-00610

BOLT

6

207-06-K1422

WIRING HARNESS

|6

207-06-K1421

WIRING HARNESS

7

205-06-73180

FUSE¤ 15A

|7

205-06-73180

FUSE¤ 15A

8

283-06-16110

BOX,FUSE

9

195-Z11-2290

COVER

10

283-06-16190

FUSE¤ 10A

|10

283-06-16190

FUSE¤ 10A

11

08041-02500

FUSE¤ 25A

12

20Y-06-24130

SWITCH

13

20Y-06-21460

CLIP

14

20Y-06-23960

CLIP

15

01023-10625

SCREW

16

20Y-979-2130

BOX ASS'Y,(SEE FIG. Y1979-61A0)

17

01435-01016

BOLT

18

20Y-979-2221

DUCT

19

01435-00610

BOLT

20

20Y-979-2231

DUCT

21

01435-00610

BOLT

22

20Y-979-2242

DUCT

23

01435-00610

BOLT

24

7861-94-0850

REGISTOR

25

01435-00820

BOLT

26

203-06-56230

BUZZER ASS'Y

27

01435-00610

BOLT

28

7834-20-5006

CONTROLLER

|28

7834-20-5004

CONTROLLER

|28

7834-20-5003

CONTROLLER

29

01435-00880

BOLT

30

20Y-06-25130

RELAY BOX ASS'Y

31

01435-00630

BOLT

32

08051-00801

CLIP

33

20Y-06-23521

LOCK

34

01435-00820

BOLT

35

20Y-06-24220

SHEET

36

08017-30701

CONDUIT

37

01010-81020

BOLT

38

01643-31032

WASHER

39

08034-00519

BAND
