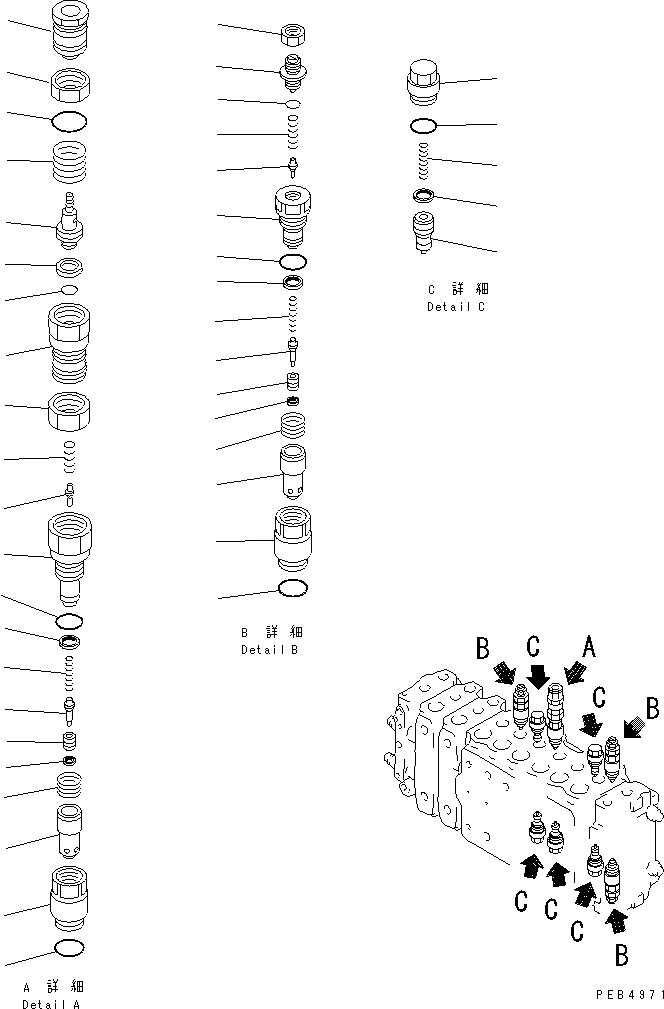

Запчасти Komatsu PC450-6 ОСНОВН. КЛАПАН (-АКТУАТОР) (8/) (БЕЗ НАВЕСН. ОБОРУД-Я) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

723-48-19501

CONTROL VALVE

|1

723-48-19500

CONTROL VALVE

|1

723-48-19202

CONTROL VALVE

|1

723-48-19201

CONTROL VALVE

|1

723-48-19200

CONTROL VALVE

|1

723-48-17201

VALVE ASS'Y

|1

723-48-17200

VALVE ASS'Y

|1

709-70-74302

VALVE ASS'Y,SUCTION AND SAFETY

1

SLEEVE

2

SLEEVE

3

POPPET

4

PISTON

5

PLUG

6

POPPET

7

SCREW

8

SPRING

9

SPRING

10

SPRING

11

SEAL

12

SEAL

13

709-25-11390

O-RING

14

O-RING

15

O-RING

16

NUT

|17

723-40-90101

VALVE ASS'Y,SUCTION AND SAFETY

|17

723-40-90100

VALVE ASS'Y,SUCTION AND SAFETY

17

SLEEVE

18

SLEEVE

19

POPPET

20

PISTON

|20

PISTON

21

SLEEVE

22

POPPET

23

UNION

24

PISTON

25

SPRING

26

SPRING

27

SPRING

28

SEAL

29

SEAL

30

709-25-11390

O-RING

31

O-RING

|31

O-RING

32

NUT

33

NUT

34

HOLDER

35

O-RING

|35

O-RING

36

SPRING

37

SEAL

|38

723-40-85100

VALVE ASS'Y,SUCTION

38

SLEEVE

39

VALVE

40

SPRING

41

SEAL

42

709-25-11390

O-RING
