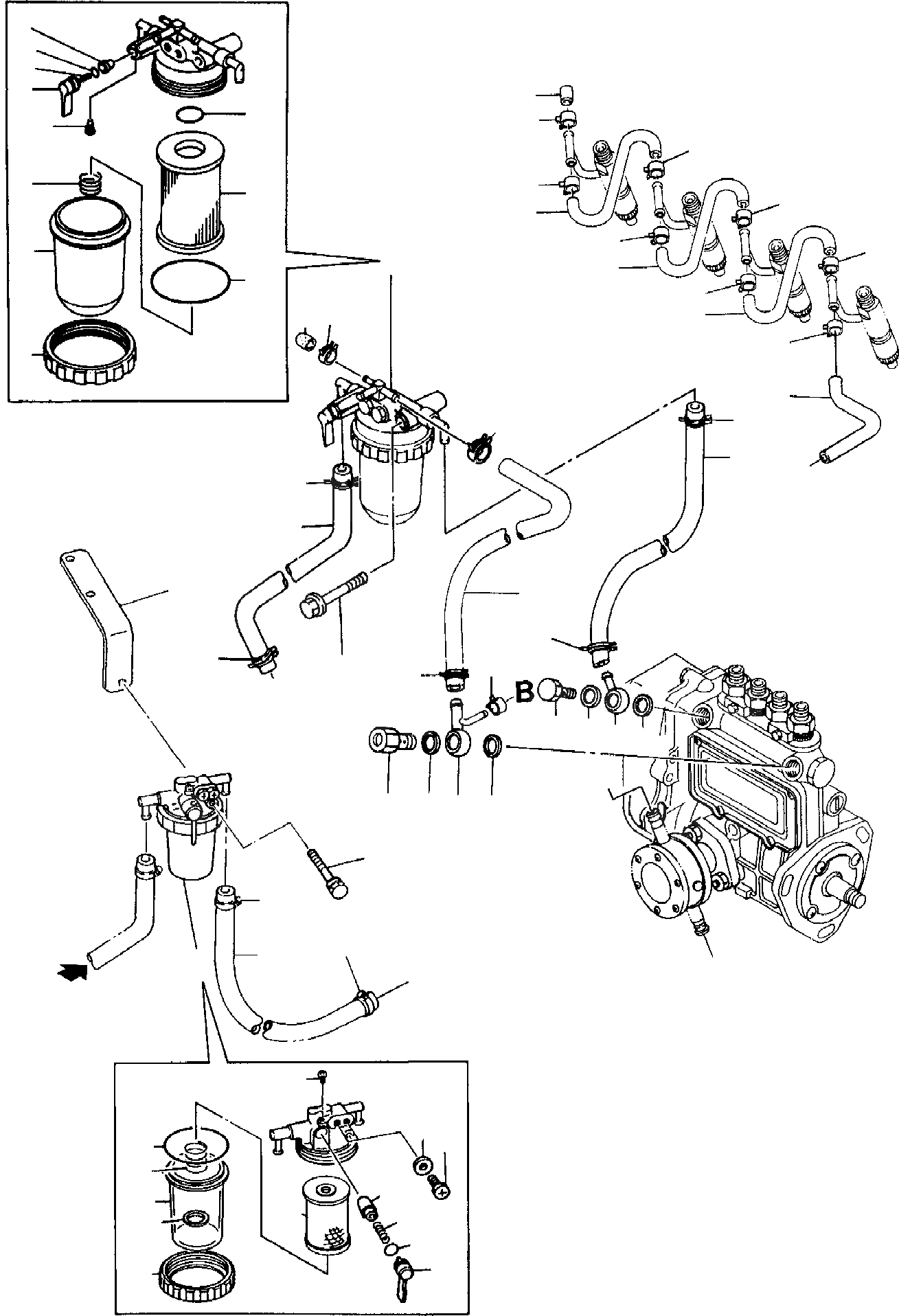

Запчасти Komatsu PC45-1 ТОПЛИВН. ЛИНИЯ ДВИГАТЕЛЬ

1

YMR000114

FILTER, ASSY.

2

YMR000007

VALVE, TAPER

3

YMR000008

SPRING

4

YMR000115

ELEMENT, ASSY.

6

YMR000116

LINK

7

YMR000117

CUP, STRAINER

8

YMR000118

RING, NUT

9

YMR000119

SPRING

10

YMR000010

SCREW

11

YMR000383

O-RING

12

YMR000385

O-RING

13

YMR000386

O-RING

14

YMR000077

CLAMP

15

YMR000200

CAP

16

YMR000392

BOLT

17

YMR001073

BRACKET

18

YMR000280

WATER SEPARATOR

19

YMR000007

VALVE, TAPER

20

YMR000008

SPRING

21

YMR000009

HANDLE, COCK

22

YMR000076

BOWL, FUEL STRAINER

23

YMR000003

O-RING

24

YMR000012

RING, NUT

25

YMR000062

SPRING

26

YMR000063

FLOAT

28

YMR000002

PLUG

29

YMR000010

SCREW

30

YMR000341

SCREEN

31

YMR000376

GASKET

32

YMR000385

O-RING

33

YMR000392

BOLT

34

YMR000093

CLAMP

35

YMR000077

CLAMP

36

YMR000515

PIPE

37

YMR000061

PIPE

38

YMR000048

PIPE

39

YMR000049

UNION

40

YMR000200

CAP

41

YMR000121

VALVE

49

YMR000375

GASKET

50

YMR000005

SCREW

51

YMR000001

JOINT

52

YMR000093

CLAMP

53

YMR000093

CLAMP

54

YMR000093

CLAMP

55

YMR001074

PIPE

56

YMR000011

GASKET

57

YMR000290

PIPE

58

YMR000515

PIPE
