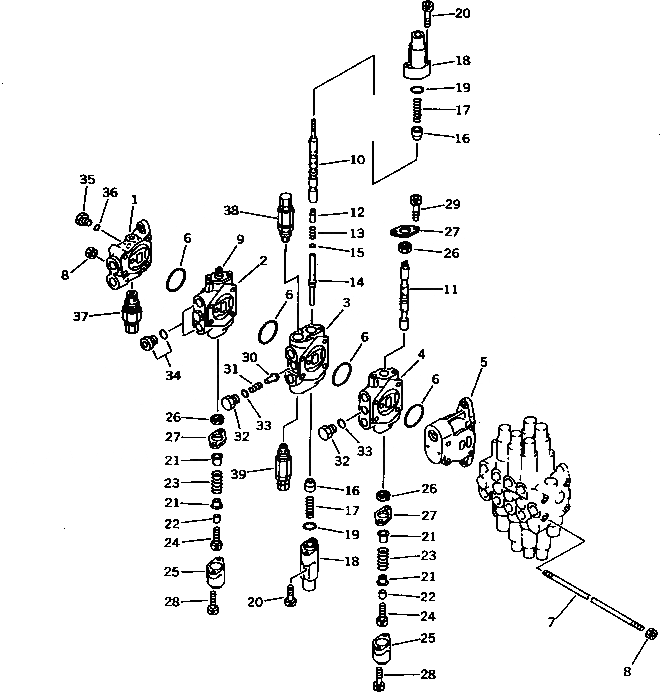

Запчасти Komatsu PC45-1 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (7-СЕКЦИОНН.) (/) ГИДРАВЛИКА

|$0

20T-60-72141

VALVE ASS'Y

1

NAD33216861401

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

NAD33216861601

BLOCK

6

NAC01200055010

O-RING

7

NAE51413047120

STUD

8

NAB01011008004

NUT

9

SPOOL,SERVICE

10

SPOOL,ARM

11

SPOOL,TRAVEL, L.H.

12

NAD33416498801

POPPET

13

NAE57416498901

SPRING

14

NAD33416884501

JOINT

15

NAC01100006010

O-RING

16

NAD33416861901

RETAINER

17

NAE57416861701

SPRING

18

NAD33416861801

CASE

19

NAC01100022010

O-RING

20

NAA02010604051

BOLT

21

NAD33414362401

RETAINER

22

NAE514132420

SPACER

23

NAE57416982101

SPRING

24

NAE514132647

BOLT

25

NAD33414760401

CASE

26

NAE55414586501

SEAL,OIL

27

NAD33090604004

PLATE

28

NAE51416985101

BOLT

29

NAA02010601051

BOLT

30

NAD33090701014

POPPET

31

NA4M82472

SPRING

32

NAD33090703014

PLUG

33

NAC01100014010

O-RING

34

NAE144129218

PLUG

35

07040-11007

PLUG

36

07002-11023

O-RING

37

NAD33316087819

VALVE ASS'Y,MAIN RELIEF

38

NAD33415778005

VALVE ASS'Y,SAFETY

39

NAD33416379404

VALVE ASS'Y,SAFETY AND SUCTION
