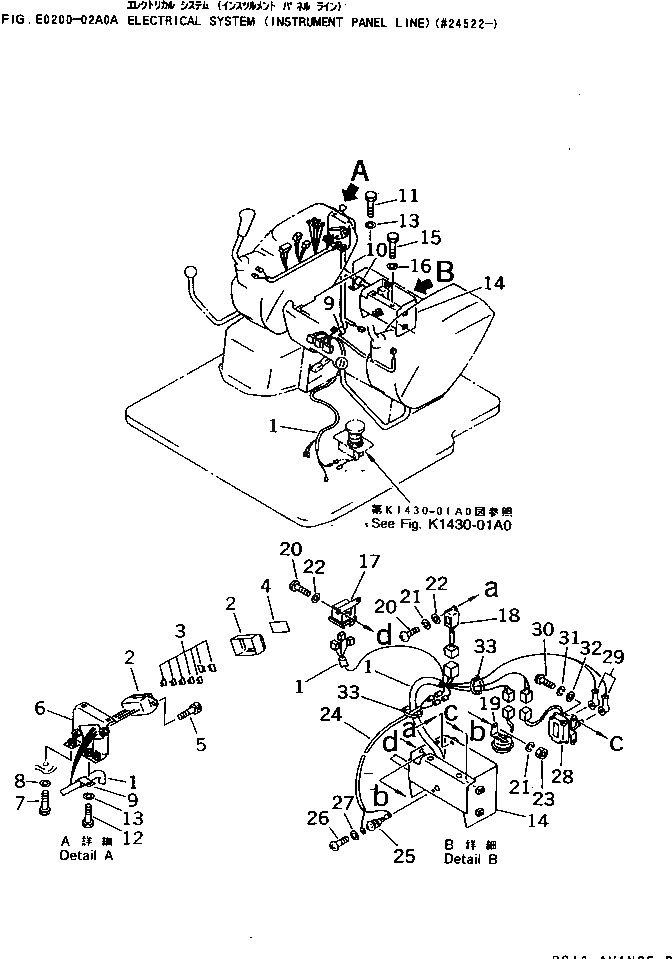

Запчасти Komatsu PC45-1 ЭЛЕКТРИКА (ЛИНИЯ ПАНЕЛИ ПРИБОРОВ)(№-) ЭЛЕКТРИКА

1

20T-06-71312

WIRING HARNESS

1

08020-00000

DIODE

2

20T-06-71560

FUSE BOX

3

283-06-16190

FUSE, 10A

3

22W-06-13160

FUSE, 20A

3

201-06-61240

FUSE, 30A

4

20T-06-71571

PLATE, NAME,FUSE

5

20T-54-71550

BOLT

6

21W-06-21151

BRACKET

7

01010-50816

BOLT

8

01643-30823

WASHER

9

08035-02510

CLIP

10

424-09-12550

CLIP

11

01010-51020

BOLT

12

01010-51025

BOLT

13

01643-31032

WASHER

14

20T-06-71333

BRACKET

14

20T-06-71332

BRACKET

15

01010-51020

BOLT

16

01643-31032

WASHER

17

20T-06-71750

RELAY ASS'Y,ENGINE STOP MOTOR

18

20T-06-71760

TIMER,ENGINE STOP

19

20T-06-71320

BUZZER ASS'Y

20

01220-40616

SCREW

21

01602-20619

WASHER,SPRING

22

01643-30623

WASHER

23

01580-10605

NUT

24

20T-06-71780

WIRING HARNESS

24

20T-06-71531

HARNESS

25

20T-06-71770

SWITCH,P.P.C. LOCK

25

20T-06-71520

SWITCH,P.P.C. LOCK

26

6134-71-5750

SCREW

27

01641-20508

WASHER

28

20T-06-71650

RELAY,SAFETY

29

08038-00519

CAP

30

01220-40616

SCREW

31

01602-20619

WASHER,SPRING

32

01641-20608

WASHER

33

08034-00823

BAND
