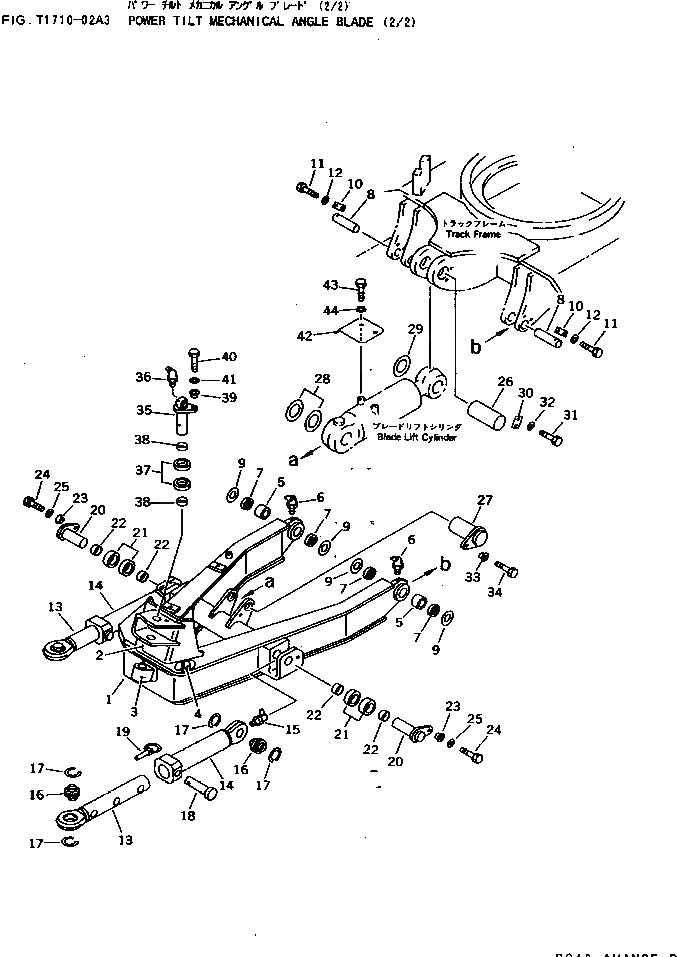

Запчасти Komatsu PC45-1 НАКЛОНЯЕМ. МЕХАНИЧ. ОТВАЛ С ИЗМ. УГЛОМ ПОВОРОТА (/) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

20T-910-0210

FRAME ASS'Y

1

FRAME

2

20T-910-4120

BRACKET (WELDED)

3

101-71-12140

PIN (WELDED)

4

101-71-12150

COLLAR (WELDED)

5

07144-10304

BUSHING

6

07020-00675

FITTING,GREASE

7

07145-00035

SEAL,DUST

8

20S-70-71240

PIN

9

20R-70-11270

SPACER, 1.0MM

10

04082-00212

LOCK

11

01010-51230

BOLT

12

01643-31232

WASHER

13

20S-910-3240

ROD ASS'Y

14

20U-910-1330

BRACE

15

07020-00900

FITTING,GREASE

16

104-72-21920

BEARING

17

04067-00055

RING,SNAP

18

20U-910-1351

PIN

19

421-46-12740

PIN,LINCH

20

20U-910-1241

PIN

21

104-72-21990

BUSHING

22

104-72-21960

COLLAR

23

20S-70-31180

SPACER

24

01010-51230

BOLT

25

01643-31232

WASHER

26

20T-71-71210

PIN

27

20T-71-41211

PIN

28

20S-71-11230

SHIM, 1.0MM

28

20S-71-11240

SPACER, 2.3MM

29

20S-71-11230

SHIM, 1.0MM

30

04082-00212

LOCK

31

01010-51230

BOLT

32

01643-31232

WASHER

33

20S-70-31190

SPACER

34

01010-51230

BOLT

35

20U-910-1231

PIN

36

07020-00675

FITTING,GREASE

37

20U-910-1290

BUSHING

38

20U-910-1280

COLLAR

39

20S-70-31180

SPACER

40

01010-51230

BOLT

41

01643-31232

WASHER

42

20T-71-41320

COVER

43

01010-51020

BOLT

44

01643-31032

WASHER
