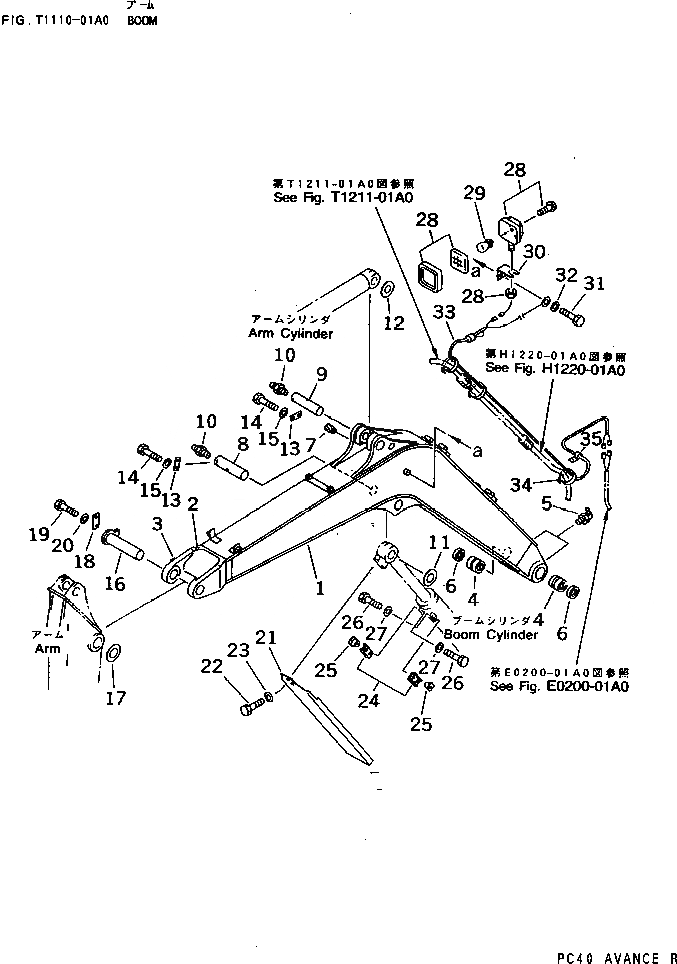

Запчасти Komatsu PC45-1 СТРЕЛА РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

20T-70-01010

BOOM ASS'Y

|$1

20T-970-0050

BREAKER ASS'Y,(FOR BREAKER ARM)

1

BOOM

1

BOOM,(FOR BREAKER ARM)

2

20T-70-71120

BRACKET (WELDED)

3

01572-21216

SEAT (WELDED)

4

20T-70-71140

BUSHING

5

07020-00900

FITTING,GREASE

6

07145-00050

SEAL,DUST

7

07049-01012

PLUG

8

20T-70-71170

PIN

9

20T-70-71180

PIN

10

07020-00000

FITTING,GREASE

11

201-70-23140

SPACER, 1.0MM

12

20T-70-19130

SPACER, 1.0MM

13

04082-00212

LOCK

14

01010-51230

BOLT

15

01643-31232

WASHER

16

20T-70-71220

PIN

17

424-46-12540

SHIM, 0.5MM

18

20R-70-11250

PLATE

19

01010-51230

BOLT

20

01643-31232

WASHER

21

20T-70-71190

COVER

22

01010-51030

BOLT

23

01643-31032

WASHER

24

20T-70-71630

PAD

25

20T-70-71640

COLLAR

26

01010-50816

BOLT

27

01643-30823

WASHER

28

20T-06-71350

WORK LAMP ASS'Y

29

20T-06-71550

BULB, 60W

30

21X-06-12120

BRACKET

31

01010-51020

BOLT

32

01643-31032

WASHER

33

20T-06-71372

WIRE

34

08034-30521

BAND

35

08036-00814

CLIP
