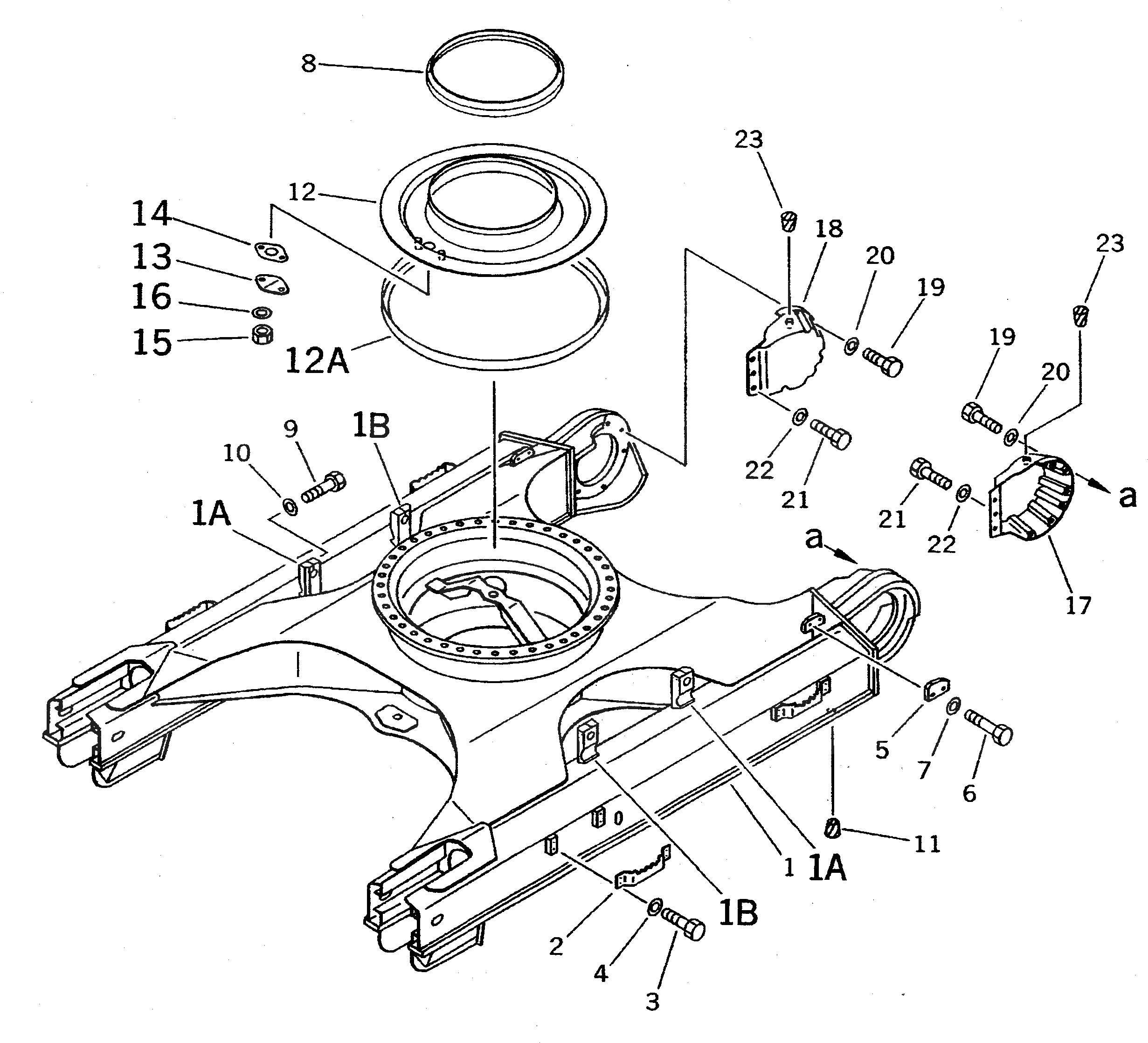

Запчасти Komatsu PC410LC-5 ГУСЕНИЧНАЯ РАМА(№-) ХОДОВАЯ

G-1

208-30-X3140

FRAME GROUP

1

208-30-52112

FRAME

|1

208-30-52111

FRAME

1A

208-30-52150

PLATE (WELDED)

1B

208-30-52140

PLATE (WELDED)

2

208-30-51260

BRACKET

3

01010-51640

BOLT

4

01643-31645

WASHER

5

207-30-52121

PLATE

6

01010-32070

BOLT

|6

01010-52070

BOLT

7

01643-32060

WASHER

8

205-30-71170

SEAL

9

01011-32000

BOLT

|9

01011-52000

BOLT

10

01643-32060

WASHER

11

07049-02430

PLUG

G-2

208-30-X2260

COVER GROUP

12

208-30-51211

COVER

12A

207-30-51260

SEAL

13

205-30-71181

COVER

14

205-30-71191

GASKET

15

01580-11008

NUT

16

01643-31032

WASHER

G-3

208-30-X2270

FINAL COVER GROUP

17

208-30-51240

CASE,L.H.

18

208-30-51250

CASE,R.H.

19

01010-51645

BOLT

20

01643-31645

WASHER

21

01010-51665

BOLT

22

01643-31645

WASHER

23

07049-01215

PLUG
