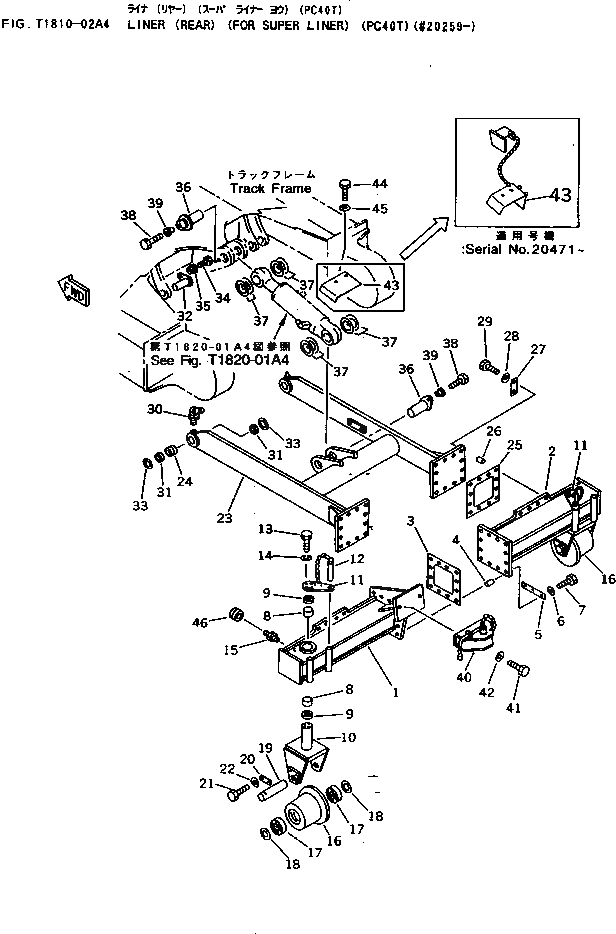

Запчасти Komatsu PC40T-7 LINER (ЗАДН.) (ДЛЯ SUPER LINER) (PCT)(№9-) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

20T-914-7730

BRACKET,L.H.

|1

20T-914-7770

BRACKET,L.H. (FOR BROAD GAUGE)

2

20T-914-7740

BRACKET,R.H.

|2

20T-914-7780

BRACKET,R.H. (FOR BROAD GAUGE)

3

20T-914-4763

PLATE

4

21F-914-1871

BOSS

5

20T-914-4782

PLATE

6

130-43-64260

COLLAR

7

01010-51260

BOLT

|7

01010-51265

BOLT

8

07143-10503

BUSHING

9

07145-00050

SEAL,DUST

10

20T-914-4831

BRACKET

11

20T-914-4820

PLATE

12

20T-914-4810

PIN (WELDED)

13

01010-51025

BOLT

14

01602-21030

WASHER

15

07020-00000

FITTING,GREASE

16

20T-914-4851

ROLLER

|16

20T-914-4860

ROLLER,(FOR BROAD GAUGE)

17

06002-06309

BEARING

18

130-817-4260

WASHER

19

20G-47-13170

PIN

20

04082-00212

LOCK

21

01010-51225

BOLT

22

01643-31232

WASHER

|23

20T-914-0021

BRACKET ASS'Y

|23

20T-914-0020

BRACKET ASS'Y

23

BRACKET

|23

BRACKET

24

07144-10304

BUSHING

25

20T-914-4763

PLATE

26

21F-914-1871

BOSS

27

20T-914-4782

PLATE

28

130-43-64260

COLLAR

29

01010-51260

BOLT

|29

01010-51265

BOLT

30

07020-00675

FITTING,GREASE

31

07145-00035

SEAL,DUST

32

20S-71-31221

PIN

33

20R-70-11270

SPACER¤ 1.0MM

34

01010-51225

BOLT

35

20S-70-31180

SPACER

36

20T-71-41211

PIN

37

20S-71-11230

SHIM¤ 1.0MM

|37

20S-71-11240

SPACER¤ 2.3MM

38

01010-51220

BOLT

39

20S-70-31190

SPACER

40

20T-914-7910

DRAWBAR ASS'Y

41

01010-52050

BOLT

42

01643-32060

WASHER

43

20T-914-7650

COVER

|43

20T-71-41320

COVER

44

01010-51020

BOLT

45

01643-31032

WASHER

46

09415-02520

CAP
