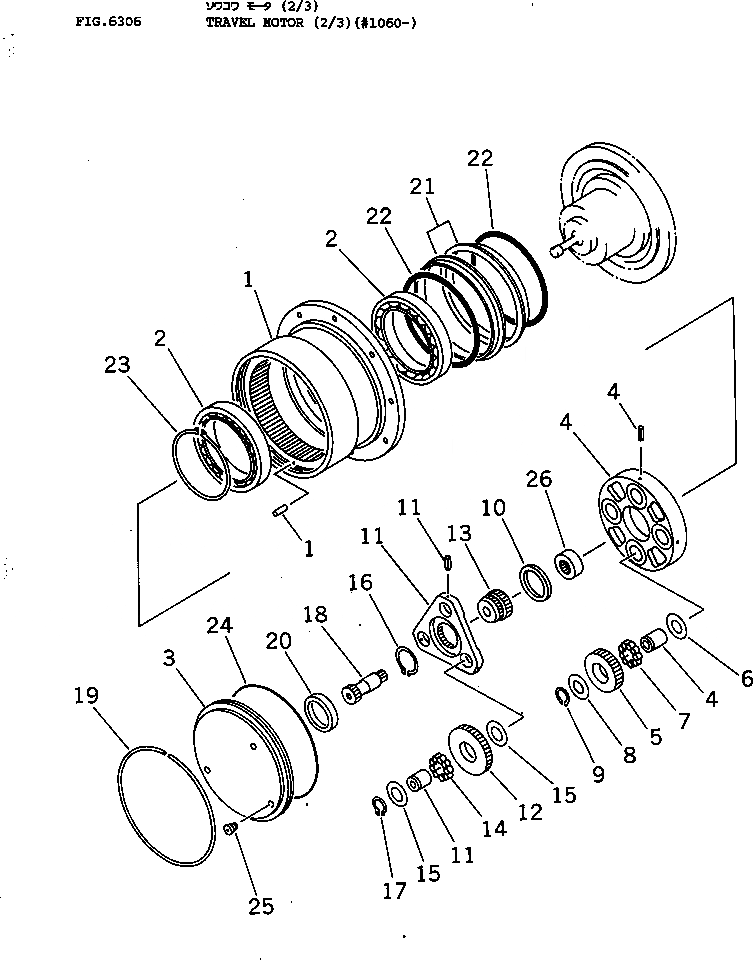

Запчасти Komatsu PC40T-7 МОТОР ХОДА (/) (ДЛЯ SUPER LINER) (PCT)(№9-) НИЖНЯЯ ГИДРОЛИНИЯ И ЛИНИЯ ХОДА

|1

20T-60-43100

TRAVEL MOTOR ASS'Y

1

FUGHB-3-1183B

BODY SUB ASS'Y

|1

FUGHB-3-1183

BODY SUB ASS'Y

2

FU120BA16

BEARING

|2

FU120BA16

BEARING

3

FUFRP-1183-02

COVER

4

FUGHC3-1-1183B

CARRIER SUB ASS'Y

|4

FUGHC-3-1-1183

CARRIER SUB ASS'Y

5

FUFRP-1183-06

GEAR

6

FUAS3047

THRUST WASHER,THRUST

7

FUFRP-1183-20

NEEDLE,SNAP

8

FUFRP-1183-41

WASHER

|8

FUAS3047

THRUST WASHER

9

FURA-30

RING

10

FUFRP-1183-15

COLLAR

|10

FUFRP-710-15

COLLAR

11

FUGHC-3-2-1183

CARRIER SUB ASS'Y

12

FUFRP-1183-07

GEAR

13

FUFRP-1183-08

GEAR

14

FUFRP-608-19

NEEDLE

15

FUAS3047

THRUST WASHER,THRUST

16

FURA-35

RING,SNAP

17

FURA-30

RING,SNAP

18

FUFRP-1183-09

GEAR

19

FUFRP-710-13

RING,SNAP

20

FUFRP-1158-16

RING,SLIDE

|21

175-27-00121

FLOATING SEAL ASS'Y

21

175-27-00131

SEAL RING ASS'Y

|21

FU175-27-32711

SEAL

22

100-27-11330

O-RING

|22

FU100-27-11330

O-RING

23

FUFRP-840-23

RING,SNAP

24

FUROA-263

O-RING

25

FUTPHA-3-8

PLUG

26

FUFRP-1183-40

COUPLING
