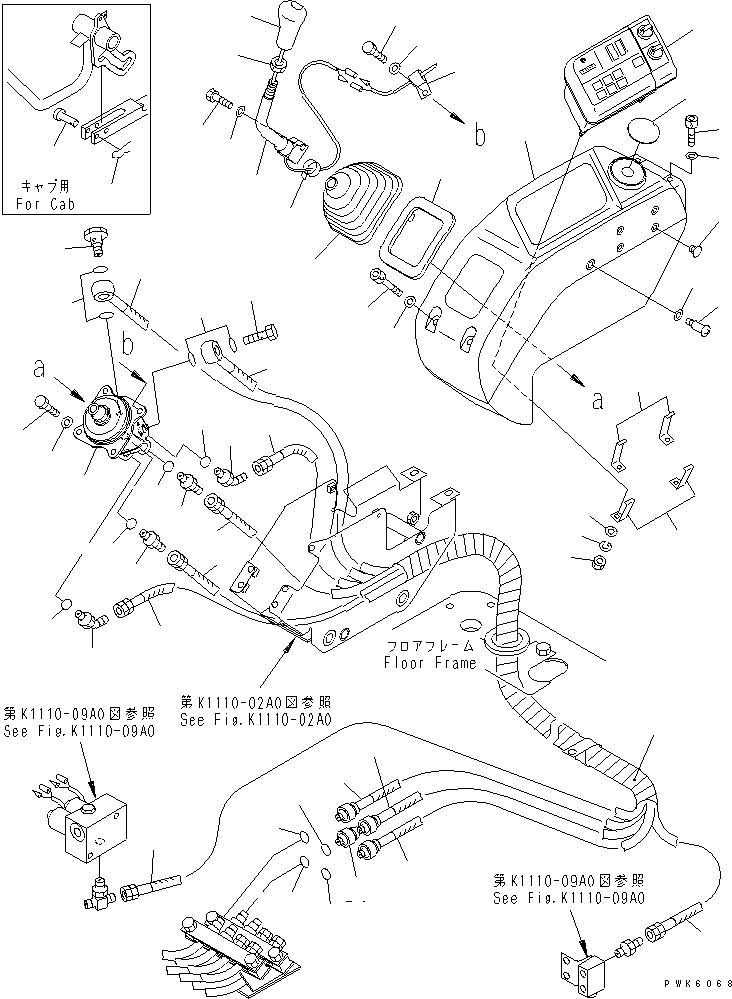

Запчасти Komatsu PC40R-8 ОСНОВН. КОНСТРУКЦИЯ (УПРАВЛ-Е ПРАВ.) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ
№
Артикул
Название
Примечание
Количество
1
20U-43-21320
LEVER
2
01010-81030
BOLT
3
01643-31032
WASHER
4
20T-06-71110
SWITCH, KNOB
5
20T-43-71190
NUT
6
08036-10810
CLIP
7
08034-30521
BAND
8
20T-43-71161
BOOT
8
20T-43-71160
BOOT
9
20T-43-71361
PLATE
9
20T-43-71360
PLATE
10
702-16-01181
PILOT VALVE,(SEE FIG.Y1670-11A0)
10
702-16-01180
PILOT VALVE,(SEE FIG.Y1670-11A0)
11
01010-80820
BOLT
12
01643-30823
WASHER
13
702-16-53240
PLUG,(WITHOUT 1 ATT AND PAT)
14
07000-02018
O-RING
15
203-62-57730
BOLT,(WITHOUT 1 ATT AND PAT)
16
07000-02018
O-RING
17
07230-20210
UNION
18
07236-10210
ELBOW
19
07002-01423
O-RING
20
20T-62-77771
HOSE, 1800MM
21
20T-62-83280
HOSE, 1650MM
22
20T-62-83240
HOSE, 1500MM
22A
20U-62-22190
O-RING
23
20T-62-83240
HOSE, 1500MM
23A
20U-62-22190
O-RING
24
20T-62-83240
HOSE, 1500MM
24A
20U-62-22190
O-RING
25
20T-62-83240
HOSE, 1500MM
25A
20U-62-22190
O-RING
26
203-62-32450
COVER
|$62
20T-54-71700
BOX ASS'Y,(WITHOUT ONE TOUCH DECEL)
|$63
20T-910-8590
BOX ASS'Y,(FOR 1 ATTACHMENT AND PAT)
27
20T-54-71322
BOX,(WITHOUT ONE TOUCH DECEL)
27
20T-910-8690
BOX,(FOR 1 ATTACHMENT AND PAT)
27
20T-54-71323
BOX,(FOR ONE TOUCH DECEL)
27
20T-910-8690
BOX,(FOR 1 ATT AND PAT AND DECEL)
28
20T-54-71520
PLATE,(WITHOUT ONE TOUCH DECEL)
29
20T-54-71530
PLUG,(WITHOUT ONE TOUCH DECEL)
30
20T-54-71570
BOLT
31
20T-54-71550
BOLT
32
01643-70823
WASHER
33
20T-43-71480
SCREW
34
01643-70823
WASHER
35
7824-84-3001
MONITOR ASS'Y,(CANOPY) (SEE FIG.K1110-51A0)
35
7824-84-2001
MONITOR ASS'Y,(CAB) (SEE FIG.K1110-51A1)
36
20T-06-71431
BRACKET
37
01580-10605
NUT
38
01641-20608
WASHER
39
01602-20619
WASHER,SPRING
40
04205-10835
PIN,(FOR CAB)
41
04052-10833
PIN,(FOR CAB)
Выбрано товаров: 54
