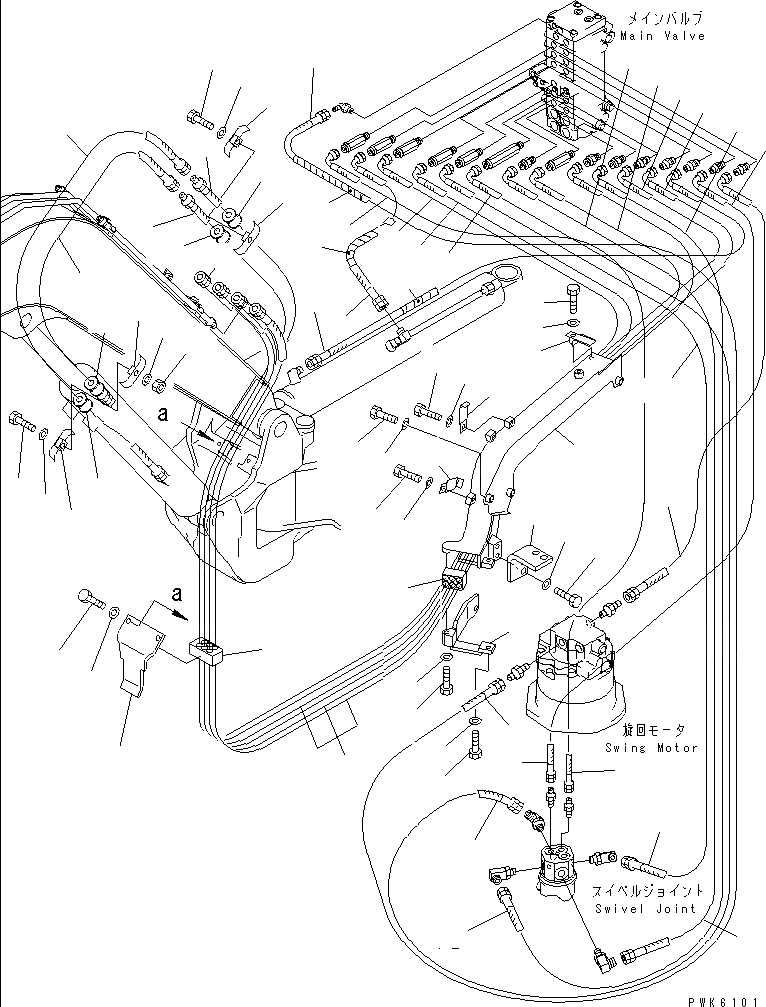

Запчасти Komatsu PC40R-8 ACTUATER ЛИНИЯ (ОСНОВН. ЛИНИЯ И ШЛАНГИ КРЕПЛЕНИЕ)(№9-) ГИДРАВЛИКА

1

20T-62-81610

HOSE

2

20T-62-81640

HOSE

3

20T-62-84120

HOSE

4

20T-62-84130

HOSE

5

20T-62-84410

HOSE

6

20T-62-84391

HOSE

7

20T-62-81940

HOSE

8

20T-62-81950

HOSE

9

20T-62-81960

HOSE

10

20T-62-81540

HOSE

11

20T-62-81290

HOSE

12

20T-62-81970

HOSE

13

20T-62-81980

HOSE

14

20T-62-84220

HOSE

14A

203-62-32440

COVER

14B

08210-01201

SPIRAL TUBE

15

20T-62-81653

BRACKET

16

01010-81235

BOLT

17

01643-31232

WASHER

18

20T-62-81664

PLATE

19

20T-62-81711

CUSHION

19A

01010-81050

BOLT

20

01010-81030

BOLT

21

01643-31032

WASHER

22

20T-62-81870

PLATE

23

01010-81050

BOLT

24

01643-31032

WASHER

25

20T-62-81882

BRACKET

26

01010-81020

BOLT

27

01643-31032

WASHER

28

20T-62-82191

CUSHION

29

20T-62-82211

COVER

30

01010-81030

BOLT

31

01643-31032

WASHER

32

20T-62-82170

HOSE

33

20T-62-84530

HOSE

34

07095-00420

CUSHION

35

07094-30417

CLAMP

36

01010-81060

BOLT

37

01643-31032

WASHER

38

01580-11008

NUT

39

20T-62-84480

BRACKET

40

01010-81235

BOLT

41

01643-31232

WASHER
