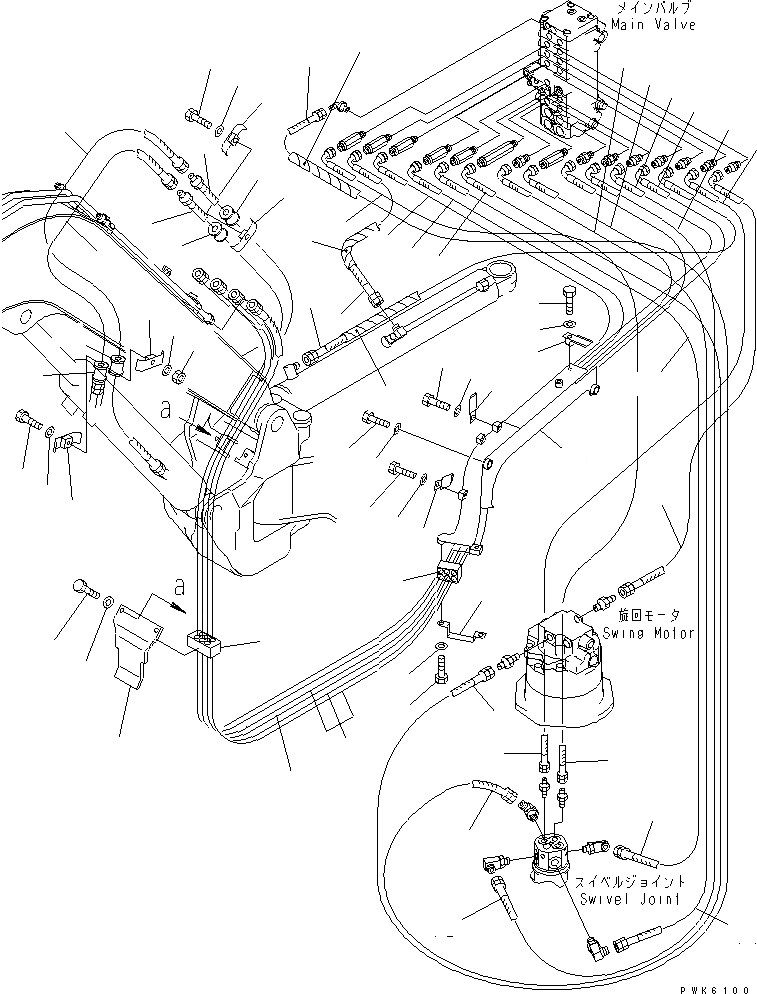

Запчасти Komatsu PC40R-8 ACTUATER ЛИНИЯ (ОСНОВН. ЛИНИЯ И ШЛАНГИ КРЕПЛЕНИЕ)(№-8) ГИДРАВЛИКА

1

20T-62-81610

HOSE

2

20T-62-81640

HOSE

3

20T-62-84120

HOSE

4

20T-62-84130

HOSE

5

20T-62-84410

HOSE

6

20T-62-84391

HOSE

7

20T-62-81940

HOSE

8

20T-62-81950

HOSE

9

20T-62-81960

HOSE

10

20T-62-81540

HOSE

11

20T-62-81290

HOSE

12

20T-62-81970

HOSE

13

20T-62-81980

HOSE

14

20T-62-84220

HOSE

14A

203-62-32440

COVER

14B

08210-01201

SPIRAL TUBE

15

20T-62-81652

BRACKET

|15

20T-62-81651

BRACKET

16

01010-81235

BOLT

17

01643-31232

WASHER

18

20T-62-81663

PLATE

|18

20T-62-81661

PLATE

19

20T-62-81711

CUSHION

20

01010-81020

BOLT

|20

01010-81020

BOLT

21

01643-31032

WASHER

|21

01643-31032

WASHER

22

20T-62-81870

PLATE

23

01010-81050

BOLT

24

01643-31032

WASHER

25

20T-62-81881

BRACKET

|25

20T-62-81880

BRACKET

26

01010-81020

BOLT

27

01643-31032

WASHER

28

20T-62-82191

CUSHION

29

20T-62-82211

COVER

30

01010-81030

BOLT

31

01643-31032

WASHER

32

20T-62-82170

HOSE

|32

20T-62-81920

HOSE

33

20T-62-84530

HOSE

|33

20T-62-81930

HOSE

34

07095-00420

CUSHION

35

07094-30417

CLAMP

36

01010-81060

BOLT

37

01643-31032

WASHER

38

01580-11008

NUT
