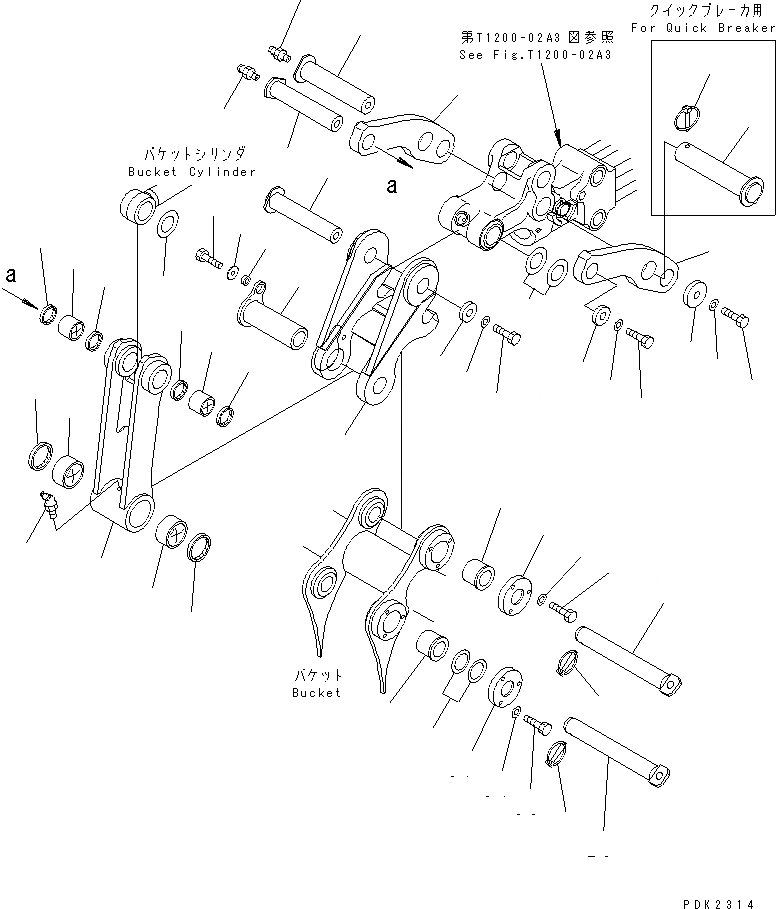

Запчасти Komatsu PC40R-8 СОЕДИНЕНИЕ КОВША (ДЛЯ QUICK BREKAER) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

20T-970-0210

LINK ASS'Y

1

20T-970-9621

LINK

2

20T-70-25740

BUSHING

3

20T-970-9690

BUSHING

4

07145-00045

SEAL

5

07020-00675

FITTING

6

07145-00065

SEAL

7

20T-970-9641

PIPE

8

198-43-15310

COLLAR¤ 10MM

9

01010-81235

BOLT

10

419-43-17920

WASHER

11

20T-970-9611

COUPLER

12

20T-870-1130

LINK,L.H.

13

20T-870-1140

LINK

14

20T-70-71451

PIN

15

07020-00000

FITTING

16

20T-70-71270

PLATE

17

01010-82045

BOLT

18

01643-32060

WASHER

19

20U-70-21780

SHIM¤ 2.5MM

20

20T-870-1170

PIN

21

565-14-22510

HOLDER

22

20T-870-1180

PIN

23

20T-870-1190

PIN,RING

24

20T-970-9630

PIN

25

20T-70-71270

PLATE

26

01010-82045

BOLT

27

20T-70-81710

SPACER¤ 1.0MM

|27

20T-70-19130

SPACER¤ 1.0MM

28

01643-32060

WASHER

29

20T-970-9651

PIN

30

20T-970-9681

RETAINER

31

20T-970-9661

CAP

32

208-32-51160

WASHER

33

01010-81035

BOLT

34

01643-31032

WASHER

35

20T-870-1190

PIN,RING
