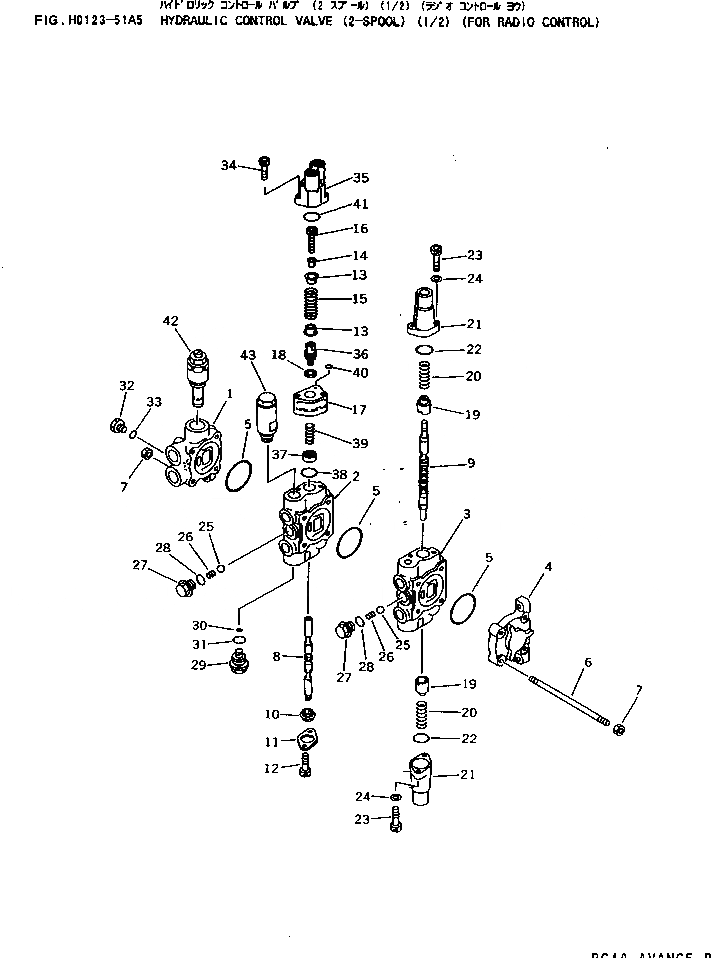

Запчасти Komatsu PC40R-7 ГИДРАВЛ КОНТРОЛЬНЫЙ КЛАПАН (2-Х СЕЦИОНН.) (/) (ДЛЯ РАДИО УПРАВЛ-Е) ГИДРАВЛИКА

|1

709-32-13801

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

COVER

5

07000-12055

O-RING

6

709-32-11510

STUD

7

01580-10806

NUT

8

SPOOL,BLADE

9

SPOOL,BOOM SWING

10

709-32-11530

SEAL,DUST

11

709-32-11540

PLATE

12

01252-30610

BOLT

13

709-32-13970

RETAINER

14

709-32-11560

COLLAR

15

709-32-11580

SPRING

16

01252-30630

BOLT

17

709-32-13921

CASE

18

709-32-13980

SEAL

19

709-32-12840

RETAINER

20

709-32-13510

SPRING

21

709-32-12851

CASE

22

709-32-11760

O-RING

23

01252-30622

BOLT

24

01641-20608

WASHER

25

04260-01270

BALL

26

709-32-11820

SPRING

27

709-32-11810

PLUG

28

07002-11823

O-RING

29

709-32-11830

PLUG

30

709-32-11840

O-RING

31

07002-02034

O-RING

32

07040-11007

PLUG

33

07002-11023

O-RING

34

01252-30650

BOLT

35

709-32-13911

CASE

36

709-32-13931

PLUG

37

709-32-13940

SPACER

38

709-32-13950

O-RING

39

709-32-13960

SPRING

40

07000-01008

O-RING

41

700-80-61260

O-RING

42

700-28-56000

RELIEF VALVE ASS'Y,MAIN RELIEF

43

709-30-64101

VALVE ASS'Y,SUCTION AND SAFETY
