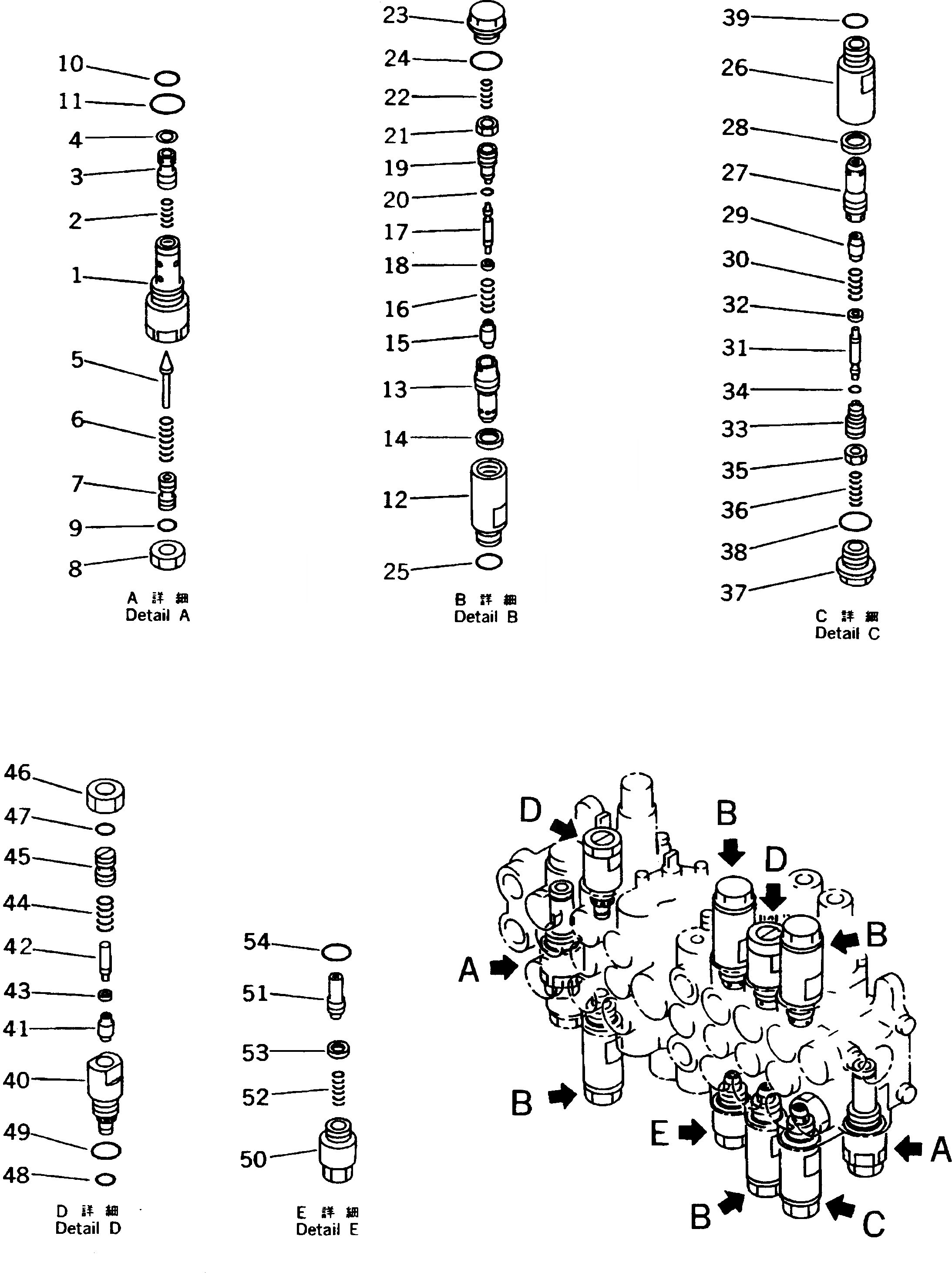

Запчасти Komatsu PC40R-7 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (7-СЕКЦИОНН.) (/) (ДЛЯ РАДИО УПРАВЛ-Е) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
|1
709-37-12701
VALVE ASS'Y
|1
700-28-62001
VALVE ASS'Y,MAIN RELIEF
1
SLEEVE
2
700-20-51430
SPRING
3
VALVE
4
700-20-51240
RING
5
700-80-61190
POPPET
6
700-20-51350
SPRING
7
700-20-51340
SCREW
8
01583-11408
NUT
9
07000-02011
O-RING
10
700-22-11410
O-RING
11
07002-02434
O-RING
|12
709-30-63602
VALVE ASS'Y,SUCTION AND SAFETY
12
709-30-62110
SLEEVE
13
VALVE
14
SEAL
15
POPPET
16
SPRING
17
PISTON
18
SEAL
19
SCREW
20
O-RING
21
NUT
22
700-20-62170
SPRING
23
709-30-62150
PLUG
24
07002-12034
O-RING
25
07002-02034
O-RING
|26
709-30-68100
VALVE ASS'Y,SUCTION AND SAFETY
26
709-30-62110
SLEEVE
27
VALVE
28
SEAL
29
POPPET
30
SPRING
31
PISTON
32
SEAL
33
SCREW
34
O-RING
35
NUT
36
700-20-62170
SPRING
37
709-30-62150
PLUG
38
07002-12034
O-RING
39
07002-02034
O-RING
|40
709-30-66700
SAFETY VALVE ASS'Y,SAFETY
40
SLEEVE
41
POPPET
42
PISTON
43
SEAL
44
SPRING
45
SCREW
46
NUT
47
O-RING
48
709-32-11840
O-RING
49
07002-02034
O-RING
|50
709-30-61100
VALVE ASS'Y,SUCTION
50
709-30-61110
SLEEVE
51
VALVE
52
700-20-62170
SPRING
53
SEAL
54
07002-02034
O-RING
Выбрано товаров: 60
