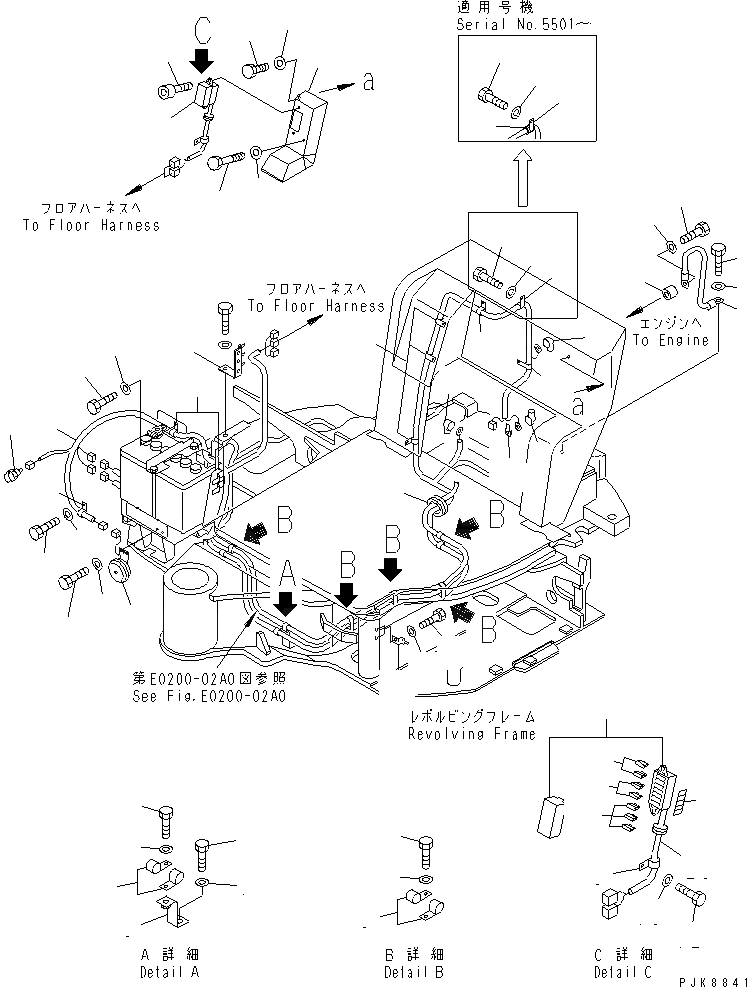

Запчасти Komatsu PC40MRX-1 ЭЛЕКТРОПРОВОДКА (Э/ПРОВОДКА) (ЕС ARRANGEMENT) ЭЛЕКТРИКА

1

22M-06-12213

WIRING HARNESS

1

22M-06-12212

WIRING HARNESS

1

22M-06-12211

WIRING HARNESS

1

22M-06-12210

WIRING HARNESS

1

20T-06-81230

FUSIBLE LINK

1

21X-06-31530

DIODE

1

08020-00000

DIODE

1A

22L-06-18930

SOCKET

2

08038-10525

CAP

3

08038-12027

CAP

4

08038-10519

CAP

5

22M-06-11152

BRACKET

5

22M-06-11151

BRACKET

6

01010-81225

BOLT

7

01643-31232

WASHER

8

04434-51712

CLIP

9

04434-51412

CLIP

10

01010-81025

BOLT

11

01643-31032

WASHER

12

01010-81020

BOLT

13

01643-31032

WASHER

14

22M-06-11432

CABLE

14

22M-06-11431

CABLE

15

01010-81030

BOLT

16

01643-31032

WASHER

17

362-60-12210

SPACER

18

22M-06-11261

BRACKET

19

08160-71200

HORN

19

08160-61200

HORN

20

01010-80816

BOLT

21

01643-30823

WASHER

22

20T-06-71690

TERMINAL

23

08036-00814

CLIP

24

01010-81020

BOLT

25

01643-31032

WASHER

26

22M-06-11170

WIRING HARNESS

27

20T-06-71560

FUSE BOX

28

22M-06-11340

PLATE, FUSE

29

201-06-61240

FUSE, 30A

30

283-06-16190

FUSE, 10A

31

22W-06-13160

FUSE, 20A

32

20T-54-71550

BOLT

33

22M-06-11360

COVER

34

01010-D0816

BOLT

34A

01643-70823

WASHER

35

01010-D0870

BOLT

36

01643-70823

WASHER

37

22M-06-11410

GROMMET

38

08053-01510

CLIP

39

01010-81016

BOLT

40

01643-31032

WASHER

41

04434-52112

CLIP

42

07095-20314

CUSHION

43

01010-81020

BOLT

44

01643-31032

WASHER
