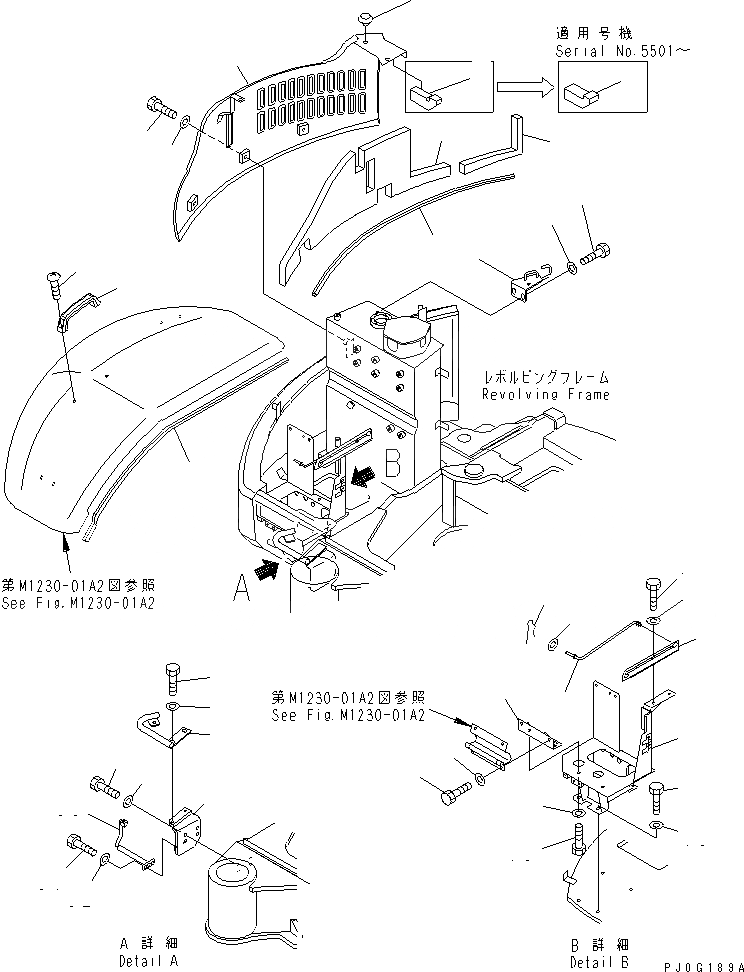

Запчасти Komatsu PC40MRX-1 ПЕРЕДН. КРЫШКА( ) (КРОМЕ ЯПОН.) ЧАСТИ КОРПУСА

|$7

22M-54-17401

COVER ASS'Y

|$8

22M-54-17400

COVER ASS'Y

1

22M-54-11341

COVER

2

22M-54-19181

SHEET

2

22M-54-19180

SHEET

3

22M-54-19230

SEAL

4

22M-54-19381

SHEET

5

22M-54-19420

SHEET

6

22M-54-19140

STOPPER

7

01010-81020

BOLT

8

01643-31032

WASHER

9

22M-54-11472

BRACKET

10

01010-81020

BOLT

11

01643-31032

WASHER

12

22M-54-11621

SEAL

13

22M-54-11645

BRACKET

13

22M-54-11643

BRACKET

14

01010-81225

BOLT

15

01643-31232

WASHER

16

22M-54-12751

BRACKET

16

22M-54-12750

BRACKET

17

22M-54-11442

BRACKET

18

01010-81025

BOLT

19

203-54-56970

WASHER

20

01643-31032

WASHER

21

22M-54-11451

ROD

22

01643-30823

WASHER

23

04052-10833

PIN

24

22M-54-19332

BRACKET

25

01010-81025

BOLT

26

01643-31032

WASHER

27

22M-54-19640

BRACKET

28

01010-81020

BOLT

29

01643-31032

WASHER

30

22M-62-13270

CLAMP

31

01010-81025

BOLT

32

01643-31032

WASHER

33

361-54-21150

HANDLE

34

01220-70812

SCREW

35

01010-81025

BOLT

36

01643-31032

WASHER
