Запчасти Komatsu PC40MR-2-AC P.P.C. ОСНОВН. ЛИНИЯ (ДЛЯ ПОДЪЕМА РУКОЯТИ) ГИДРАВЛИКА

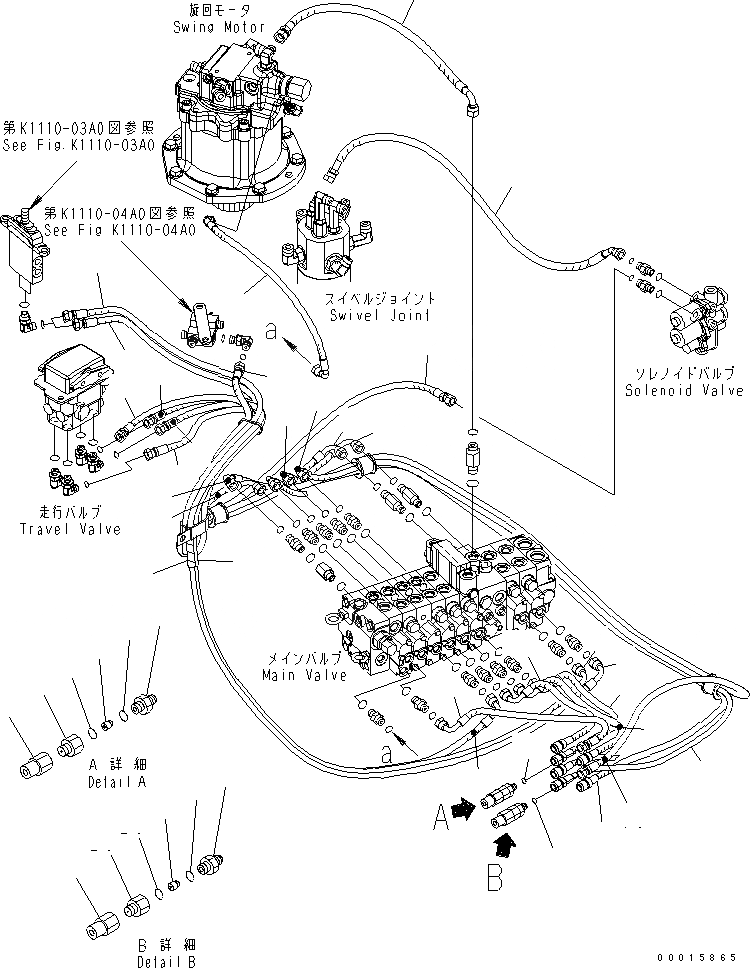

Схема запчастей Komatsu PC40MR-2-AC - P.P.C. ОСНОВН. ЛИНИЯ (ДЛЯ ПОДЪЕМА РУКОЯТИ) ГИДРАВЛИКА
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
21
21
22
23
24
25
26
27
28
29
29
30
31
32

Артикул

Название

Примечание

Количество

1

22M-62-21131

HOSE¤ 1380MM,WHITE¤ BLUE

|1

21U-62-34770

BAND¤ WHITE

|1

21U-62-34750

BAND¤ BLUE

2

22M-62-21211

HOSE¤ 1250MM,WHITE¤ RED

|2

21U-62-34770

BAND¤ WHITE

|2

21U-62-34760

BAND¤ RED

3

22M-62-21251

HOSE¤ 1440MM,BLACK¤ YELLOW

|3

21U-62-34720

BAND¤ BLACK

|3

21U-62-34710

BAND¤ YELLOW

4

22M-62-21261

HOSE¤ 1450MM,BROWN¤ YELLOW

|4

21U-62-34780

BAND¤ BROWN

|4

21U-62-34710

BAND¤ YELLOW

5

22M-62-21172

HOSE¤ 1360MM,GREEN¤ YELLOW

|5

21U-62-34730

BAND¤ GREEN

|5

21U-62-34710

BAND¤ YELLOW

6

22M-62-21182

HOSE¤ 1280MM,ORANGE¤ YELLOW

|6

21U-62-34740

BAND¤ ORANGE

|6

21U-62-34710

BAND¤ YELLOW

7

08210-01202

SPIRAL TUBE

8

22M-62-21120

HOSE¤ 550MM,BROWN

|8

21U-62-34780

BAND¤ BROWN

9

22M-62-21150

HOSE¤ 430MM,GREEN

|9

21U-62-34730

BAND¤ GREEN

10

22M-62-21160

HOSE¤ 450MM,BLUE

|10

21U-62-34750

BAND¤ BLUE

11

22M-62-21160

HOSE¤ 450MM,YELLOW

|11

21U-62-34710

BAND¤ YELLOW

12

20T-60-82320

POPPET

13

21W-62-42870

NIPPLE

14

21W-62-42950

NIPPLE

15

07002-11423

O-RING

16

07002-11423

O-RING

17

02896-11008

O-RING

18

21W-62-42940

NIPPLE

19

22M-62-21190

HOSE¤ 1220MM,WHITE

|19

21U-62-34770

BAND¤ WHITE

20

22M-62-21230

HOSE¤ 1060MM,ORANGE

|20

21U-62-34740

BAND¤ ORANGE

21

22M-62-21240

HOSE¤ 1090MM,BLACK

|21

21U-62-34720

BAND¤ BLACK

22

20T-60-82320

POPPET

23

21W-62-42870

NIPPLE

24

21W-62-42950

NIPPLE

25

07002-11423

O-RING

26

07002-11423

O-RING

27

02896-11008

O-RING

28

21W-62-42940

NIPPLE

29

22M-62-23440

HOSE

|29

22M-62-23441

HOSE

30

22M-62-22640

HOSE¤ 550MM

31

22M-62-23470

HOSE¤ 500MM

32

22M-62-22650

HOSE¤ 800MM

Выбрано товаров: 52
