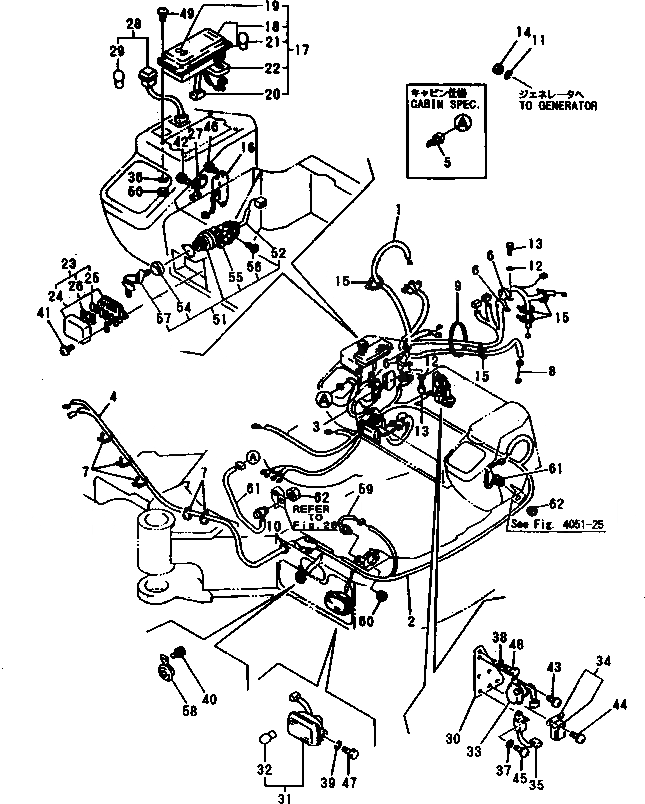

Запчасти Komatsu PC40FR-1 ЭЛЕКТРИКА (ШАССИ)(№-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

YM172964-16500

HARNESS

2

YM172964-16511

HARNESS

3

YM172164-16523

HARNESS

4

YM172151-16531

WIRE,LEAD

5

YM172190-16500

HARNESS

6

YM172126-16540

CLAMP

7

YM172137-16560

BAND

8

YM172183-16540

LINK,FUSIBLE

9

YM194250-51660

BAND

10

YM1A1380-58050

GROMMET

11

YM22217-050000

WASHER

12

YM22217-100000

WASHER

13

YM26116-100162

BOLT

14

YM26716-050002

NUT

15

YM933152-09280

BAND

16

YM172151-17100

LAMP

17

YM172162-17101

BOX ASS'Y,INDICATOR

18

YM172162-17270

COVER

19

YM172162-17240

FO METER ASS'Y

20

YM172162-17250

HARNESS

21

YM172162-17120

VALVE

22

YM172162-17130

HOURMETER

23

YM172164-17100

FUSE BOX

24

YM172164-17110

BOX,FUSE

25

YM29420-150000

FUSE

26

YM29420-300000

FUSE

27

YM172141-17150

BUZZER

28

YM172141-17190

SWITCH,WORK LAMP

29

YM172141-17230

BULB

30

YM172164-17250

BRACKET,RELAY

31

YM172162-17410

LAMP ASS'Y

32

YM29220-788200

BULB

33

YM129136-77100

RELAY,SAFETY

34

YM119650-77910

RELAY,GLOW

35

YM119632-77922

TIMER

36

YM22137-040000

WASHER

37

YM22137-060000

WASHER

38

YM22217-080000

WASHER

39

YM22217-080000

WASHER

40

YM26013-060122

BOLT

41

YM26022-050162

SCREW

42

YM26022-060122

SCREW

43

YM26022-060122

SCREW

44

YM26022-060122

SCREW

45

YM26022-060162

SCREW

46

YM26022-060202

SCREW

47

YM26116-080162

BOLT

48

YM26116-080202

BOLT

49

YM26589-040202

SCREW

50

YM26716-040002

NUT

51

YM172964-17100

SWITCH ASS'Y

52

YM172964-16520

HARNESS

54

YM172964-17120

NUT

55

YM172983-16530

TUBE

56

YM26587-040082

SCREW

57

KEY ASS'Y

58

YM933110-05300

HORN

59

YM194464-52190

SWITCH,SAFETY START

60

YM26776-180002

NUT,LOCK

61

YM172164-17140

SWITCH

62

YM26776-160002

NUT
