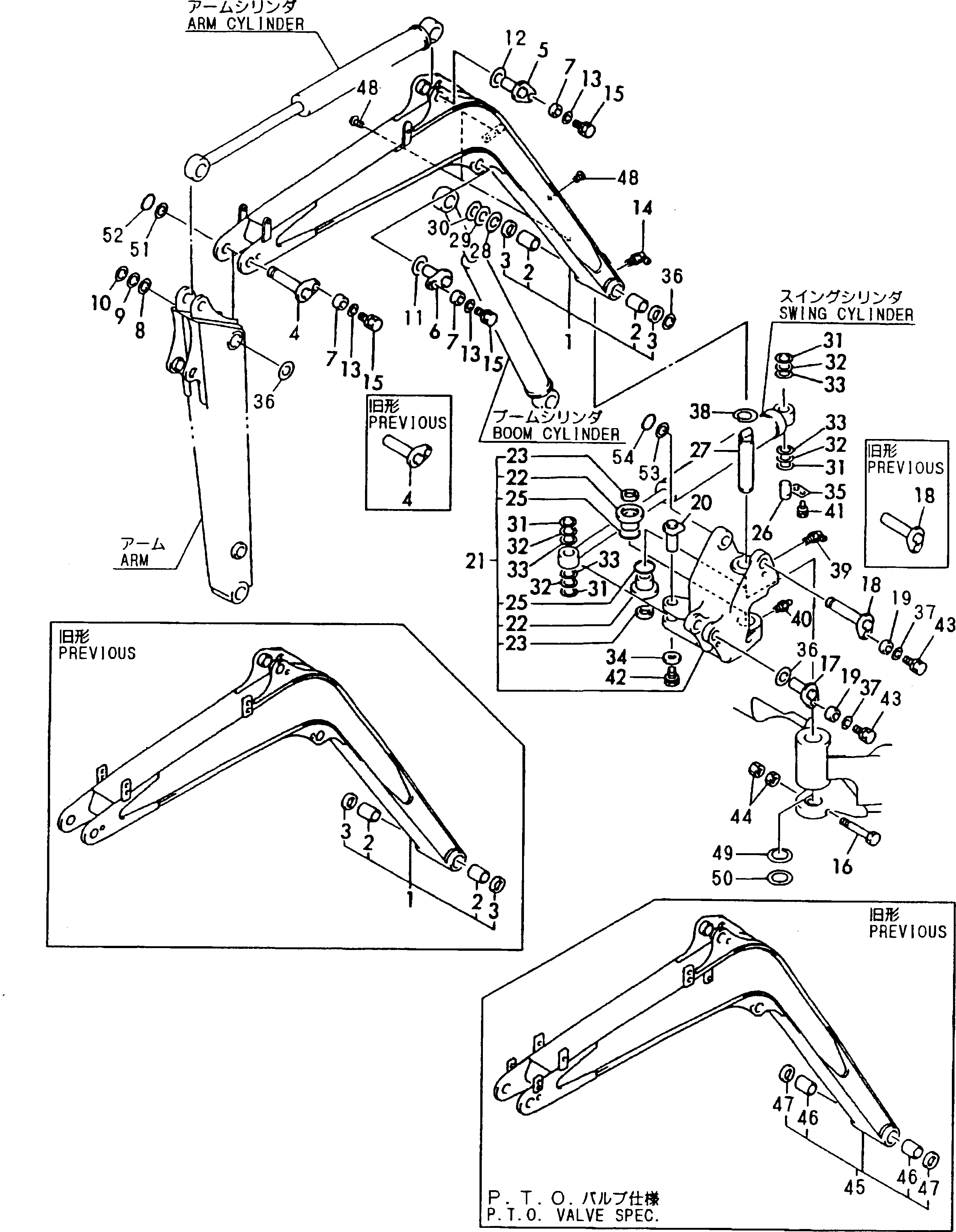

Запчасти Komatsu PC40FR-1 СТРЕЛА И ПОВОРОТН. БЛОК РАБОЧЕЕ ОБОРУДОВАНИЕ

1

YM17216481102K

BOOM ASS'Y,(GREEN)

|1

YM17216481101K

BOOM ASS'Y,(GREEN)

2

YM172146-81300

BUSHING

3

YM172168-81410

SEAL,DUST

4

YM17216481551K

PIN,(GREEN)

|4

YM17216481550K

PIN,(GREEN)

5

YM17216481570K

PIN,(GREEN)

6

YM17216481590K

PIN,(GREEN)

7

YM172164-81670

SPACER

8

YM172165-82550

SHIM

9

YM172165-82560

SHIM

10

YM172165-82570

SHIM

11

YM172112-87840

SHIM

12

YM172112-87860

SHIM

13

YM22157-120000

WASHER

14

YM24761-040000

FITTING,GREASE

15

YM26013-120302

BOLT

16

YM172312-31120

BOLT

17

YM172164-81590

PIN,(GREEN)

18

YM17216481611K

PIN,(GREEN)

|18

YM17216481610K

PIN,(GREEN)

19

YM172164-81670

SPACER

20

YM17216481680K

PIN,(GREEN)

21

YM172164-82301

BRACKET,(GREEN)

22

YM172165-81710

BUSHING

23

YM172165-81770

SEAL,DUST

25

YM24321-000700

O-RING

26

YM17216582340K

PIN,(GREEN)

27

YM172165-82360

PIN

28

YM172165-82550

SHIM

29

YM172165-82560

SHIM

30

YM172165-82570

SHIM

31

YM172165-82580

SHIM

32

YM172165-82590

SHIM

33

YM172165-82600

SHIM

34

YM172146-82910

SPACER

35

YM17211783970K

PLATE,(GREEN)

36

YM172112-87840

SHIM

37

YM22157-120000

WASHER

38

YM22242-000700

CLIP

39

YM24761-040000

FITTING,GREASE

40

YM24761-050000

FITTING,GREASE

41

YM26013-100202

BOLT

42

YM26013-120252

BOLT

43

YM26013-120302

BOLT

44

YM26716-160002

NUT

45

YM172164-81301

BOOM,3RD

46

YM172146-81300

BUSHING

47

YM172168-81410

SEAL,DUST

48

YM172183-81170

CLIP

49

YM172176-81700

SHIM

50

YM172176-81710

SHIM

51

YM172164-81760

COLLAR

52

YM22242-000401

RING

53

YM172164-81760

COLLAR

54

YM22242-000401

RING
