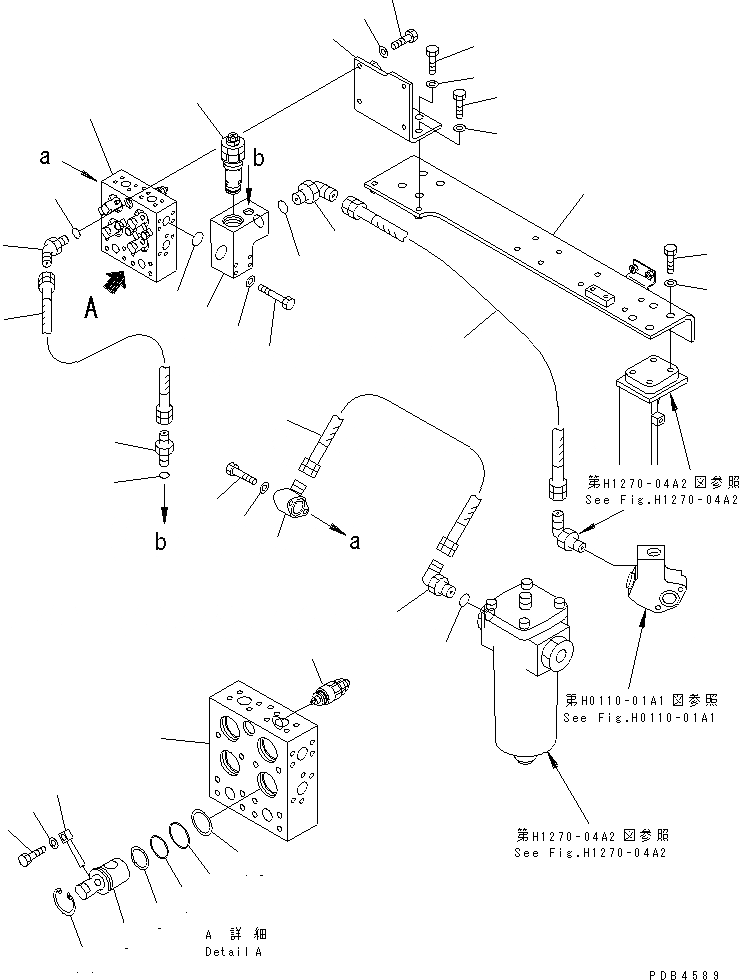

Запчасти Komatsu PC400ST-6LC НАВЕСНОЕ ОБОРУД-Е (КЛАПАН И РАМА)(№-7) ГИДРАВЛИКА

1

208-62-67750

FRAME

2

01010-51640

BOLT

3

01010-81650

BOLT

4

01643-31645

WASHER

|5

208-62-67900

VALVE ASS'Y

5

208-62-67910

BLOCK

6

207-970-1630

SHAFT

7

07000-13042

O-RING

8

07001-03042

RING

9

07000-13048

O-RING

10

07001-03048

RING

11

04065-05220

RING

12

202-970-2210

PIN

13

01010-51230

BOLT

14

01643-31232

WASHER

15

709-70-74700

VALVE ASS'Y

16

208-62-67770

BRACKET

17

01010-51240

BOLT

18

01643-31232

WASHER

19

01010-51230

BOLT

20

01643-31232

WASHER

21

208-62-67740

BLOCK

22

709-10-52202

VALVE ASS'Y

23

01011-81000

BOLT

24

01643-31032

WASHER

25

07000-13035

O-RING

26

207-62-31510

BLOCK

27

01010-51070

BOLT

28

01643-31232

WASHER

29

07102-21009

HOSE

30

07235-10628

ELBOW

31

07002-02434

O-RING

32

07102-20606

HOSE

33

07230-20628

UNION

34

07002-02434

O-RING

35

07235-11034

ELBOW

36

07002-03334

O-RING

37

07102-21010

HOSE

38

07235-11034

ELBOW

39

07002-03334

O-RING
