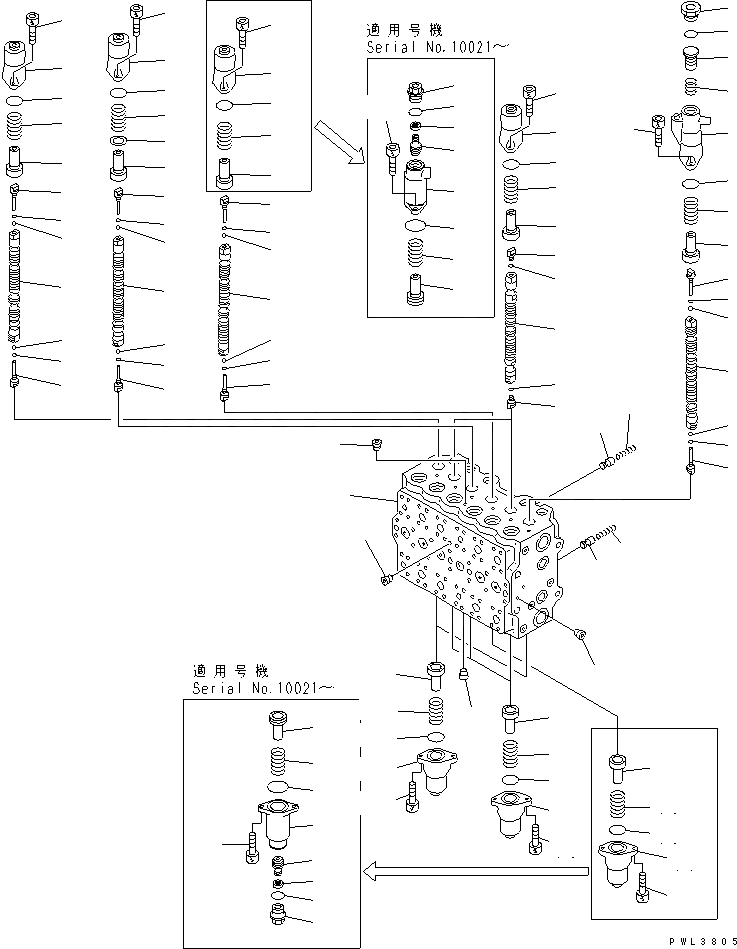

Запчасти Komatsu PC400ST-6LC ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

723-49-19301

CONTROL VALVE

|1

723-49-17301

CONTROL VALVE

|1

723-49-17300

CONTROL VALVE

|1

BODY SUB ASS'Y

|1

BODY SUB ASS'Y

1

BLOCK,VALVE

2

SPOOL

3

SPOOL

4

SPOOL

5

SPOOL

|5

SPOOL

6

SPOOL

7

723-46-15130

PLUG

8

723-46-15140

PLUG

9

07002-10823

O-RING

10

708-7T-16460

BALL

11

723-46-15120

RETAINER

|11

723-46-15120

RETAINER

12

723-46-15260

RETAINER

13

723-46-15250

SHIM

14

723-46-14110

SPRING

15

723-46-14170

SPRING

16

723-46-14131

SPRING

|16

723-46-14131

SPRING

17

723-46-15110

CASE

|17

723-46-15110

CASE

18

07430-71380

O-RING

19

01252-60820

BOLT

|19

01252-30820

BOLT

20

723-46-15410

CASE

21

723-46-15420

RETAINER

22

723-46-15450

PLUG

23

07002-13034

O-RING

|23

07002-03034

O-RING

24

723-46-15440

SPRING

25

723-46-15430

PISTON

26

708-21-12541

PLUG

|26

706-86-51180

PLUG

27

723-46-15150

VALVE

28

723-46-14150

SPRING

29

723-46-14250

SPRING

30

723-46-15610

CASE

31

723-46-15630

PLUG

32

709-25-11390

O-RING

33

723-46-15640

PISTON

34

702-73-11510

SEAL

35

723-46-16210

RETAINER
